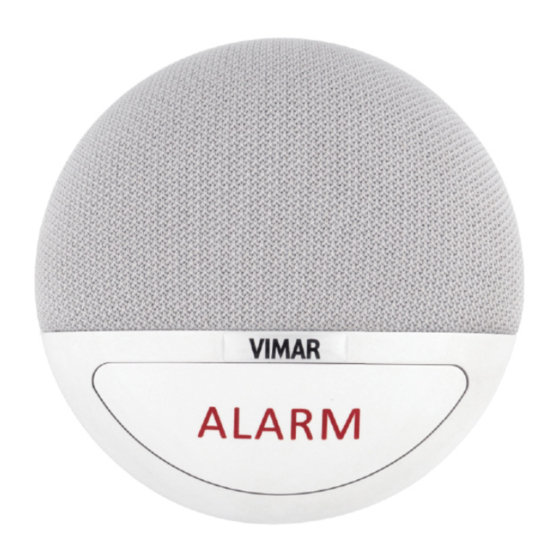

- Page 1 User Manual 03890 Hands-free unit for remote assistance calls BUILDING AUTOMATION CALL-WAY...
- Page 2 BUILDING AUTOMATION...
-
Page 3: Table Of Contents
BUILDING AUTOMATION Index 1. Introdutction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2. -
Page 4: Introdutction
In addition to the AC power adapter, a rechargeable battery is installed inside 03890 to serve as a backup in case of a power failure . - During normal operation, the AC power adapter is used to supply power to 03890 and at the same time recharge the battery . It takes approximately 72 hours to fully charge the battery . -
Page 5: Installation
BUILDING AUTOMATION Installation 3. Installation 3.1 Inserting the SIM card • Before inserting the SIM card in the device, disable any PIN code . To do this, insert the SIM card in your smartphone and follow the instructions provided to disable the PIN . - Page 6 BUILDING AUTOMATION Installation 5 . Secure the Hands-free Unit to the mounting bracket . Make sure the sign imprinted on the device lines up with the one on the back of the bracket . 6 . Turn the Hands-free Unit clockwise until it is in the closed position . Open Closed 3.3 Table mounting...
-
Page 7: Call Cycle Operation
BUILDING AUTOMATION Call cycle operation 4. Call cycle operation This section presents the operation of the call cycle the device carries out . The logic depends on parameter 3 of the RPT programming control which specifies the group the phone number to call belongs to . Each programming slot can be associated with a single group . -
Page 8: Call Cycle For Several Groups
BUILDING AUTOMATION Voicemail - Power supply - International dialling code 4.2 Call cycle for several groups If 1 or more phone numbers are programmed to at least 2 groups, the remote assistance device will call the numbers in the order defined by the programming slot (from 1 to 5) . -
Page 9: Sms Remote Programming
6. Enter the Access Code (default is 1111) . 7. Enter a comma (,) . 8. Enter the parameter(s) . 9. The composition of the control is completed . You can send the control to 03890 now . 9. First-time programming 1. Set the APN APN:PROG,1111,<Parameter1>,<Parameter2>,<Parameter3>... -
Page 10: Device Supervision
The access code used in the examples (1111) corresponds to the last 4 last digits of the IMEI shown on the tracking label on the back of the device . Example: ACCES:PROG,1111,1,1234 CAUTION: Always note down the access code set . If you lose it, contact the Vimar technical assistance service . We recommend you edit the default access code . 6. Volume adjustment SPKVL:PROG,<Parameter1>,<Parameter2>,<Parameter3>... -
Page 11: Enrolling Other Accessories
• After 03890 is activated, it will begin counting down the 20 seconds and begin reporting after Guard Time has expired . • During guard time, the user can cancel the alarm reporting by pressing the Alarm Button of 03890 for 5 seconds or pressing the Active Button of the learnt in RF device for a duration determined by the device (please refer to the device user manual) . -
Page 12: Appendix
Hold down for 30 seconds to reset the device to its factory settings . RESET:PROG,1111 To reboot 03890 RESET To restart 03890 . To check cellular signal strength / gsm IMEI / gsm version / operator CSQ:PROG,1111 imsi / network type... - Page 13 Viale Vicenza 14 36063 Marostica VI - Italy 03980 01 2306 www.vimar.com...
