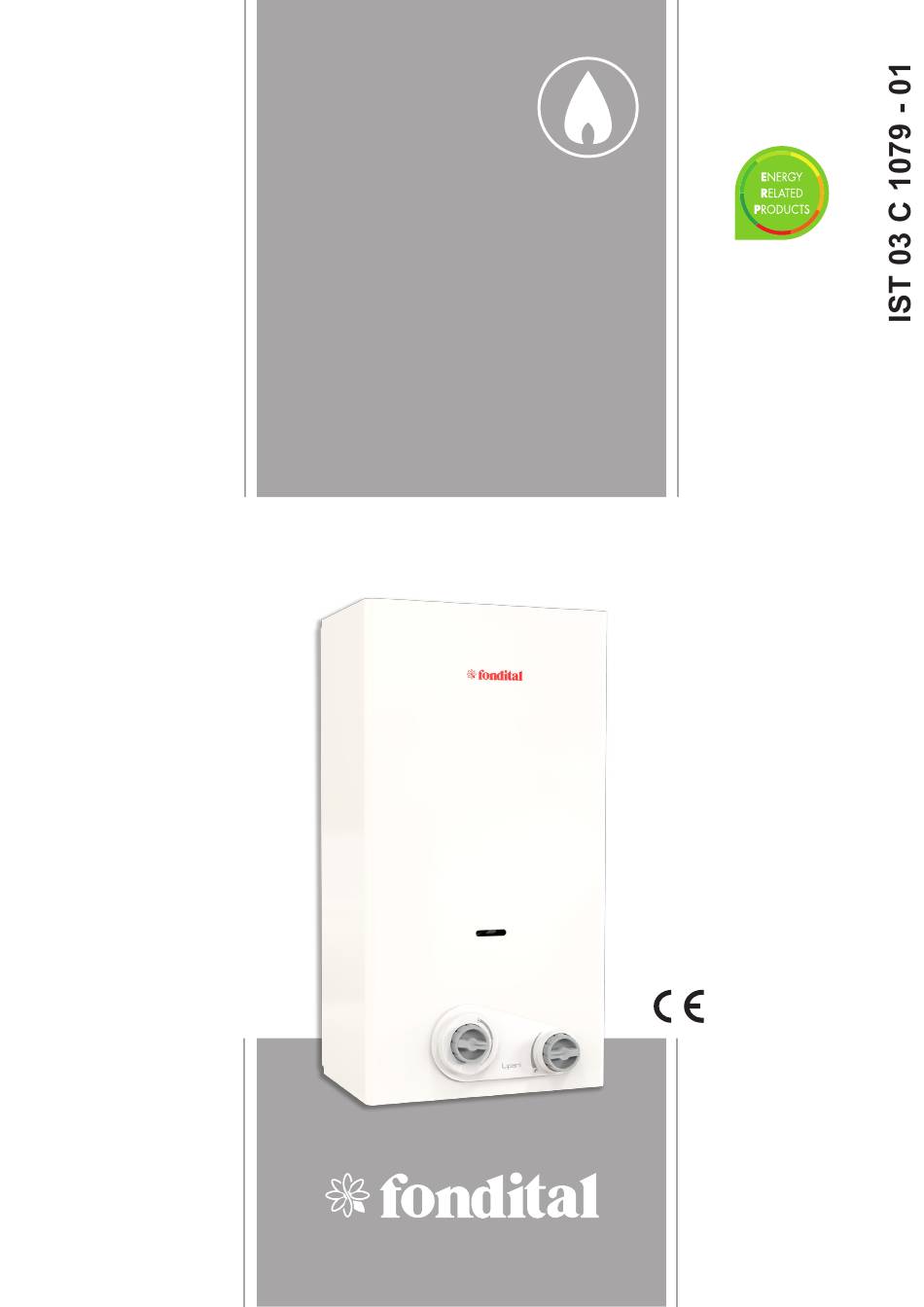

- Page 1 LIPARI TN 11i - 14i DOMESTIC GAS WATER HEATERS INSTALLATION, USE AND MAINTENANCE Translation of the original instructions (in Italian)
- Page 3 Water heating energy efficiency class WXYZ Annual energy consumption kWh/annum GJ/annum 2015 812/2013 PRODUCT DATASHEET Fondital Lipari Tn 11i Lipari Tn 14i Declared load profile Indoor sound power level dB(A) Water heating energy efficiency class Water heating energy efficiency class 73,8...
- Page 4 WARNING This booklet contains information relevant to the user as well as the installer. The user must read the following chapters: General safety, Flue gas device and Operation. INDEX GENERAL SAFETY pag. TECHNICAL CHARACTERISTICS pag. 1. a Dimensions pag. 1. b Main components pag.
-
Page 5: General Safety Warnings
GENERAL SAFETY WARNINGS When using the device the following safety rules must be applied: The Operation Manual is an integral part of the product and so must be carefully preserved in order to accompany the product; if it is Do not use the machine for purposes other than those inten- lost or damaged another copy can be requested from the Technical ded by the manufacturer. -
Page 6: Main Components
1.b Main components Flue gas release safety device Release hood Heat exchanger Ignition electrode Burner Hydraulic valve Temperature regulator Water input Gas valve Gas input Gas adjustment screws Electronic devices Battery box Economiser Water outlet Gas pressure intake Fig. 2 Pilot burner... -
Page 7: Technical Data
1.c Technical Data Lipari Tn 11i Tn 14i kW - kcal/h kW - kcal/h Nominal power usage (Pn) 19,0 - 16.340 23,7 - 20.374 Nominal Thermal range (Qn) 21,8 - 18.748 27,2 - 23.392 Minimal power usage (Pm) 7,5 - 6.424 7,5 - 6.424 Minimal Thermal range (Qm) 9,0 - 7.740... -
Page 8: Installation
2. INSTALLATION 2.c Room ventilation The installation of the water heater must comply with regulations in 2.a Regulations force including any updates. See paragraph 2.a Warning: This device can only be installed in venues that are per- The use of gas devices is controlled by precise regulations. manently ventilated according to regulation in force. -
Page 9: Gas Connection
2.g Disposal of waste product 2.e Gas Connection This B11BS water heater is supplied with a device for releasing See paragraph 2.a flue gas. Determine the pipe diameter according to current regulations. Before installing the device blow in the gas pipe to eliminate any For output of combustion by-products refer to the regulations in residue from its manufacturing. -
Page 10: Gas Transformation
ry to request the assistance of a qualified technician according to III – SUBSTITUTION OF THE MODULATION VALVE law in force, to check the correct release of flue gas through the After the operations of the points I and II release conduit and/or the smoke channel, according to the instal- - Substitute the modulation valve with the one in the kit lation regulation. - Page 11 Fig. 16 Fig. 14 Fig. 15 Fig. 18 Fig. 17 Fig. 19 Fig. 22 Fig. 20 Fig. 21 Fig. 24 Fig. 23...
-
Page 12: Operation
The flame is switched on using a card that ionizes the flame at the temperature necessary while saving gas. Lipari Tn 11i: for the extraction of 2,5 to 5 l/min the temperature The economizing device is activated by turning the knob A until it of the water supplied remains at 60°C, (in this case the has valve... -
Page 13: Maintenance
4. MAINTENANCE To maintain the machine at maximum efficiency, have qualified per- sonnel perform a maintenance check at least once a year. Before cleaning or performing maintenance, opening or disassem- bling the panels, switch off the device and turn off the gas supply. Check the main burner and the pilot flame, the ignition electrode, the safety valve and that there is no leakage. -
Page 14: Troubleshooting Problems And Solutions
4.b Troubleshooting: problems and solutions For the best functioning of the water heater, to prolong its lifetime and ensure that it is always safe, ensure that it is inspected at least once a year by a trained professional. The trained professional is to perform the following maintenance operations: - Remove any rust from the burner - Remove any deposit on the glow plug by the electrode - Clean the combustion tank... -
Page 15: General Terms Of Warranty
The Warranty is the one provided by the regulations and laws governing the sale of consumer goods in the country of purchase. For further information contact the dealer/importer. Warranty exclusions The warranty is excluded with respect to damage, malfunctions and defects that may be detected on Fondital gas water heaters and caused by: a) Transport by third parties. - Page 16 Tel. +39 0365/878.31 Fax +39 0365/878.576 e-mail: info@fondital.it www.fondital.com The manufacturer reserves the right to modify his/her products as deemed necessary, without altering the basic characteristics of the products themselves. Uff. Pubblicità Fondital IST 03 C 1079-01 Aprile 2017 (04/2017)
