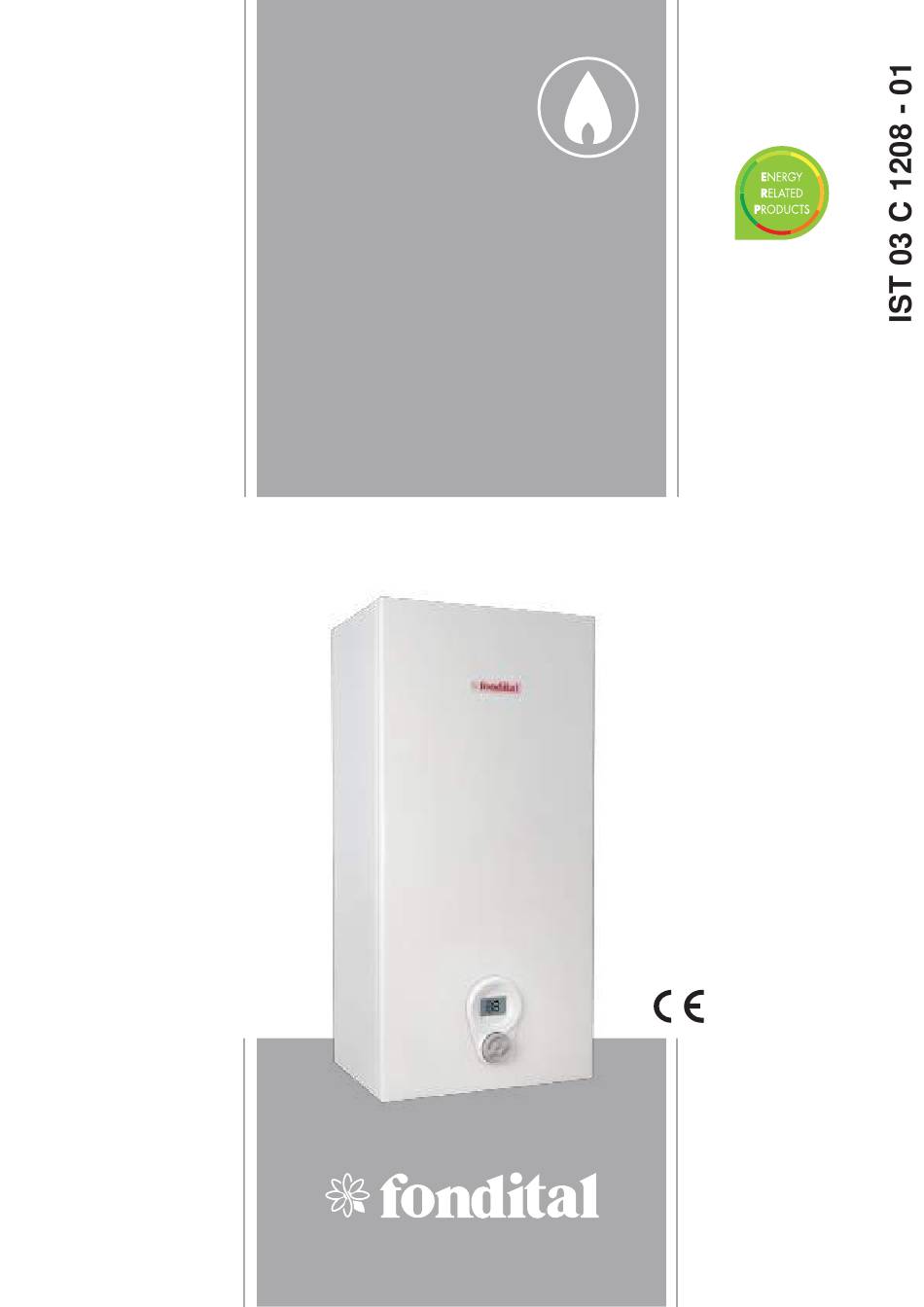

LIPARI PRO TFS
11i - 14i
GAS WATER HEATER
INSTALLATION, USE AND MAINTENANCE
EN
Translation of the original
instructions (in Italian)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lipari Pro Tfs 11i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fondital Lipari Pro Tfs 11i

  • Page 1 LIPARI PRO TFS 11i - 14i GAS WATER HEATER INSTALLATION, USE AND MAINTENANCE Translation of the original instructions (in Italian)
  • Page 2: Table Of Contents

    When the product has reached the end of its serviceable life, it shall be disposed of in an environmentally friendly way and disposed of according to the regulations in force. Separate collection and recycling of the product avoid negative impact for environment and health, and allows recovery of materials, in order to obtain energy and resources saving.
  • Page 3 The energy label carries the information regarding the product’s energy efficiency characteristics. In this way the end consumer can identify and compare similar products and can make informed choices regarding high efficiency appliances. Fondital Lipari Pro Tfs 11i Lipari Pro Tfs 14i Fondital...
  • Page 4: General Warning And Safety Devices

    General warnings and safety devices WARNING This manual contains data and information for both the user and the installer. Specifically, the user must pay attention to the chapters: General warnings and safety devices, Control panel and Use of the appliance. A number of symbols are used In some parts of the manual: ATTENTION = for actions that require particular care and adequate preparation PROHIBITED = for actions that MUST NOT be performed...
  • Page 5: Description Of The Appliance

    Description of the appliance The special burner cools the flame and check the airflow necessary NOx identifies the group of the two most important nitrogen oxides: for the combustion, set up “cooled flames” avoiding the loss of ther- - NO Nitrogen monoxide (not harmful to humans) - NO2 Nitrogen dioxide (very harmful to humans and the envi- mal efficiency, generating an optimal combustion with low emissions.
  • Page 6: Size And Distances Between Hydraulic Connections

    Size and distances between hydraulic connections Fig. 3 - Installation size - Measurements in mm AC - Hot water G - Gas AF - Cold water 1 0 0 1 0 0 3 0 4 2 2 2 2 3 8 9 2 .
  • Page 7: Wiring Diagram

    Wiring diagram Fig. 4 - Wiring diagram Legend EL Electrode ignition TR Ignition transformer F Fan FX Domestic water flowmeter LT Limit thermostat SP Domestic water probe GV Gas valve SI Input water probe (optional) Blu - blue Marrone - brown Nero - black Viola - violet Azzurro - light blue...
  • Page 8 Support bracket advisable to disconnect the power supply to all the system components that use electricity. Having established the position of the appliance, drill no. 2 Ø 6 holes to apply the support bracket (use the same bracket to mark the holes). Secure it with the plugs supplied.
  • Page 9 water heater uses original pipes and other of the same EC certified Fig. 7 - Type B exhaust dimensions specifications for fume exhaust and recovery of combustible air to ensure that the connection is correct, as indicated by the instructions CONFIGURATION TYPE B22/B22P supplied with the fume accessories.
  • Page 10 7 ø 43 TYPE B22 Open chamber and forced draught for indoor from 7 to 13 ø 45 Lipari Pro Tfs 11i from 13 to 31 not installed 1,3 m 1,8 m up to 7 ø 45...
  • Page 11 Scaldabagno Amalfi 14 RS i Lunghezze scarico - aspirazione For pipes with different lengths, refer to the following illustrations. Scaldabagno Amalfi Eco 11 RS i Lipari Pro Tfs 11i Flange flues not installed No flangia No flangia fumo fumo (102 Pa) (72 Pa) Flangia fumo ø...
  • Page 12 C32 - C32x Roof fume exhaust and combustion air intake through coaxial or split type vertical pipes with outlet positions rather close to be subject to similar wind conditions. Air intake and fume output terminals must be positioned within a 500 mm per side square.
  • Page 13: Gas Conversion

    Warnings before ignition Fig. 11 - Check mains pressure Fig. 18 c Please remember that appliance installation, first ignition, maintenance and repairs must be performed by qualified personnel. Before turning on the appliance, proceed with suitable checks: Ensure the gas system seal is good (according to current reg- ulations) Fig.
  • Page 14 Fig. 16 - “Parameters Menu” Activation symbol is displayed and then the symbol Release the reset button Enter the code by turning the knob and confirm by pressing the reset button Turn the knob and select (Parameters menu) and confirm the selection by pressing the reset button Turn the knob and select the parameter 02 (gas type), press the reset button, the value flash: turn the knob and select the gas...
  • Page 15: Technical Data

    Technical data Lipari ProTfs 11i Lipari ProTfs 14i kW - kcal/h kW - kcal/h Nominal heat input (Qn) 21,5 - 18.490 27,0 - 23.220 Nominal output power (Pn) 19,3 - 16.604 24,3 - 20.921 Minimum heat input (Qm) 9,5 - 8.170 10,0 - 8.600 Minimum output power (Pm) 8,6 - 7.353...
  • Page 16: Control Panel

    Control panel Fig. 17 - Control panel and display Service toolgate Display MENU Display MENU Presence of fault Presence of flame (flame symbol) Flame fault (symbol crossed out) Button Power on Hot water request in progress Power off RESET Set point temperature Faults / Alarms Not used Solar system connection...
  • Page 17 Water temperature adjustment Fig. 19 - Display of appliance during operation The water temperature can be set between 37 and 60°C. Turn the ignition button clockwise to increase the temperature and counter-clockwise to decrease it. The symbol flashes and the display shows the new temperature set for 5 seconds. Switching off the appliance Hold down for about 5 seconds the water heater power off button As soon as the symbols...
  • Page 18 Parasitic flame alarm Request the assistance of a qualified technician. Temporary shutdown Interrupted modulator cable alarm Press and hold the reset button . As soon as the letters appear on the display, release the button. The appliance automatically restarts. If the fault persists, request the Permanent shutdown assistance of a qualified technician.
  • Page 19 AL84 - Poor combustion alarm Request the assistance of a qualified technician. A single flashing flame is displayed The full display is only available in the alarm log Temporary shutdown Alarm fan speed sensor Request the assistance of a qualified technician. Permanent shutdown High temperatures Request the assistance of a qualified technician.
  • Page 20 Fig. 22 - “Parameter Menu” Activation Parameters menu The index of the first parameter will appear followed by the value set upon menu activation Turning the knob the subsequent parameters will be displayed Once the parameter to be changed has been identified press the reset button.
  • Page 21 deviate from the value set by approximately +/-1.5 mbar) carry out the Fig. 23 - “Calibration Menu” Activation following operations: Place the electric switch of the system to off Remove the casing by unscrewing the fastening screws located at the bottom of the water heater and detached the casing from the top Remove the cover that closes the service inlet (located on the shelf - Fig 11) and insert through the hole the silicon pressure...
  • Page 22 Maintenance Fig. 27 - Accessibility to the electronic board Fig. 26 - Dismantling the casing Please have the appliance checked by qualified per- sonnel in accordance with current regulations to guarantee correct, continuous and reliable water heater operations. Insufficient or inadequate maintenance can compromise the safety of the appliance.
  • Page 23 For further information contact the dealer/importer. Warranty exclusions The warranty is excluded with respect to damage, malfunctions and defects that may be detected on Fondital gas water heaters and caused by: a) Transport by third parties. b) Negligence in the storage and handling of the product.
  • Page 24 Tel. +39 0365/878.31 Fax +39 0365/878.576 e-mail: info@fondital.it www.fondital.com The manufacturer reserves the right to modify his/her products as deemed necessary, without altering the basic characteristics of the products themselves. Uff. Pubblicità Fondital IST 03 C 1208 - 01 Novembre 2018 (11/2018)
