Dedicated KVM switch and rackmount screen technology

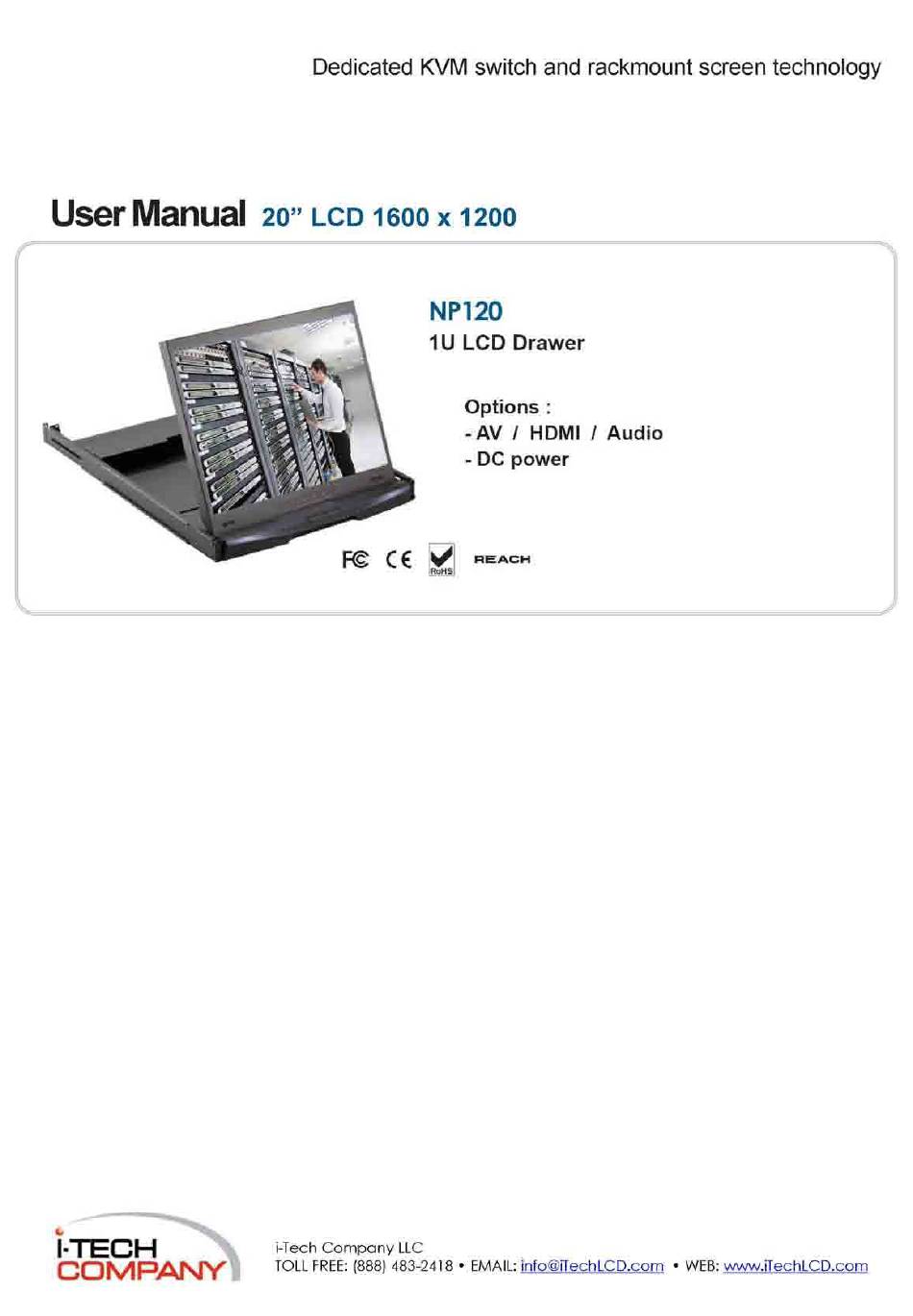

U s e r M a n u a l
20" LCD 1600 x 1200
NP120
1U LCD Drawer
Options :
-AV / HDMI / Audio
- DC power
F @ C€ ^ «
|-T-E^j|"-I
i-Tech Company LLC
C^DN^RA.N^f'
TOLL FREE: (888) 483-2418 • EMAIL:
info@iTechLCD.com
• WEB:
www.iTechLCD.com
Advertisement
Related Manuals for I-Tech NP120
Summary of Contents for I-Tech NP120
- Page 1 U s e r M a n u a l 20” LCD 1600 x 1200 NP120 1U LCD Drawer Options : -AV / HDMI / Audio - DC power F @ C€ ^ « |-T-E^j|"-I i-Tech Company LLC C^DN^RA.N^f' TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 4 Contents < Part. 1 > NP120 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifications / OSD Product Specifications On-screen Display Operation (OSD) < Part. 3 > Options HDMI, S-Video + BNC & Audio 48V, 24V or 12VDC power...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 < Part 1 > < 1.1 > Package Content NP120 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ).
- Page 7 Weight Weight 439.6x650x44 mm 595 x 860 x 140 mm 13.5 kg 17.5 kg NP120 17.3x25.6x1.73" 23.4x33.9x5.5" 30 lb 39 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, AV, audio & DC power.
- Page 8 < 1.3 > Installation - How to install 1U 20" LCD Tray Step O Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fit your rack. ■ M6 screw x 8 pcs included. M±...
- Page 9 < Part 2 > < 2.1 > Product Specifications ®LG Manufacturer Panel Size ( diagonal) 20-inch TFT color LCD 1600x1200 Display pixel ( dots x lines ) Brightness (typ. ) Contrast Ratio (typ. ) 800:1 16.7 M Color 89/89/89/89 Viewing Angle ( L/R/U/D ) Response Time ( ms ) Dot pitch ( mm ) 0.255...
- Page 10 Environmental Operating Temperature 0 to 50°C degree Conditions 20-90%, non-condensing Humidity Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random Product ( W x D x H ) Physical 439.6x650x44 mm Specification 17.3x25.6x1.73 inch Packing ( W x D x H )
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <...
- Page 12 < 2.2 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User 0 255 I ^ ^ M Green Q 255 Blue Q 255 Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry:...
- Page 13 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Either HDMI or DVI-D can be selected.
- Page 14 < 3.3 > Options : DC Power Model Input rating 24-Volt 48-Volt Input voltage: 12-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 - 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
- Page 15 I-TECH i-Tech C o m p a n y LLC C O M P A N V TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com WEB: w w w . i T e c h L C D . c o m...
