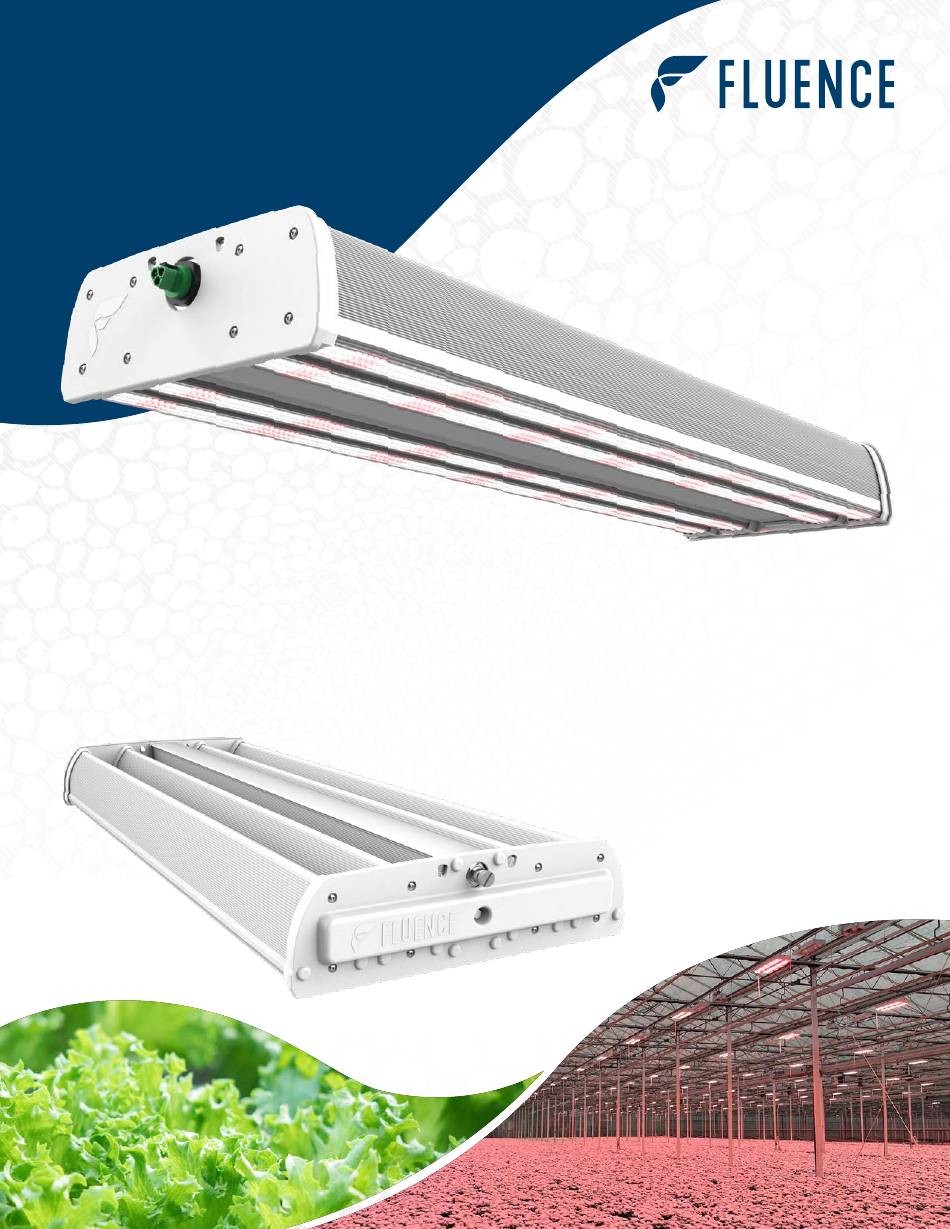

- Page 1 USER & INSTALLATION GUIDE RAPTR TABLE OF CONTENTS: LUMINAIRE SPECIFICATIONS LUMINAIRE INSTALLATION PROCEDURE CAUTIONS AND WARNINGS PRODUCT GUARANTEE & WARRANTY © Copyright 2023 Fluence Bioengineering 062023 | Subject to change without notice...
- Page 2 277V-400V~, 50/60Hz for Europe Dimming Source Signal Driver, 0/1-10V, OFF/10-100% Height FAMILY REGION SPECTRUM WATTAGE DISTRIBUTION INPUT VOLTAGE CONNECTOR 277-480 VAC RST1 RAPTR GLOBAL BROAD R4 800 WATT 120° LAMBERTIAN WIELAND AMERICA BROAD R6 1020 WATT 150° WIDE (RST20i3 Gr) BROAD R8...
- Page 3 LUMINAIRE INSTALLATION PROCEDURE IMPORTANT: For your protection, you must carefully read all warnings and instructions entirely PRIOR TO installation, operation, service or maintenance Failure to do so can result in personal injury and property damage Remove unit from carton and inspect to ensure no shipping Place unit on the floor with the LED optic chamber facing up damage has occurred DO NOT place luminaire facing down to...
- Page 4 DO NOT connect to live power until installation is complete and all connections are made • DO NOT modify or alter the product; doing so will void the warranty Please refer to the Fluence Terms and Conditions and Limited Warranty for further details •...
- Page 5 ETL Rating: RAPTR fixtures are rated suitable for wet locations A “wet location” is defined as an interior or exterior location in which water or other liquids...
- Page 6 устройството по WEEE: Да не се изхвърля с битовите отпадъци! Правилното CAUTIONS AND WARNINGS третиране на продукта и опаковката му като отпадъци трябва да става в съответствие с приложимото национално законодателство. EST WEEE-seadme identifitseerimine: Arge visake olmejaatmetesse! Toote ja pakendite nouetekohane Importer: korvaldamine peab toimuma kooskolas kehtivate siseriiklike oigusaktidega.
- Page 7 Fluence lighting systems comply with applicable standards and are intended to be used with Fluence power supplies, cables and mounting hardware The use of Fluence lighting systems with power supplies, cables and mounting hardware by others will limit specifications and void the warranty Contact us at support@fluence-led.com...
