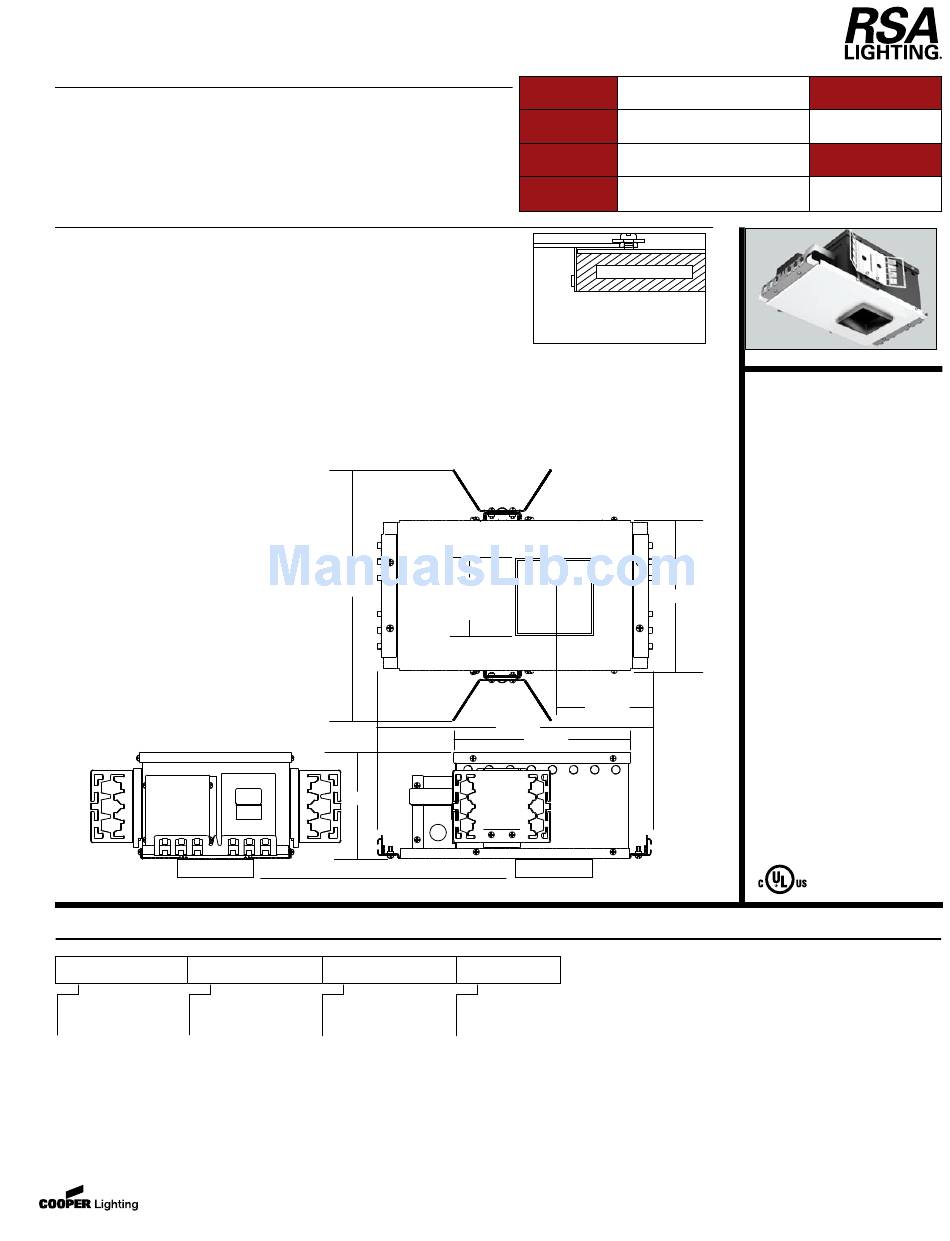

RSA Lighting QCM516SPMH Specification

DESCRIPTION
New construction special ceiling housing for Mini Quiet Ceiling small
aperture square trimless fixtures. (QCM5101, QCM5102, QCM5103,
QCM5104).
For new construction non-I.C applications in non-drywall ceilings
constructed of special materials such as wood, marble, etc.... Insulation
must be kept 3" from all sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Plasterframe opening collar is built
to accommodate a pre-specified ceiling
thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and metal halide ballast.
120V input. Junction box is U.L. listed for
through branch wiring. Includes five 1/2
trade size knockouts.
D ...Lamp
CMH MR16 20W or ES16 BriteSpot 39W
GX10 twist-lock lamp socket.
(not included).
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 3.641" sq.
ORDERING INFORMATION
QCM516SPMH
__
Housing Metal Halide Ballast
QCM516SPMH =
20 =
Mini Quiet Ceiling
39 ES16 BriteSpot 39W
=
New Construction Housing
for non-drywall ceilings
for Square Trim
w/Integral Ballast
www.cooperlighting.com
12.00"
4.63"
Ceiling thickness must be specified
__
Voltage
CMH MR16 20W
120 120 volts primary
=
277 = 277 volts primary*
*Consult factory for 277V ballast availability.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling Material
Cut-out in ceiling material must be
sized perfectly to the diameter of the
plasterframe collar for trimless effect.
Ceiling
Cut-Out
3.641"sq.
4.63"
13.00"
8.18"
Ceiling Thickness
Specify exact thickness in inches.
1/8" Increments.
Examples: 0.500", 0.625", 0.750", 0.875"
Type
Date
QUIET CEILING
TRIMLESS
QCM516SPMH
New Construction
Housing for
Square Trim
7.25"
Special Ceiling
(non-drywall ceilings)
FOR CMH MR16 20W
or ES16 BriteSpot 39W
MINI
Materials
rev. 091806
