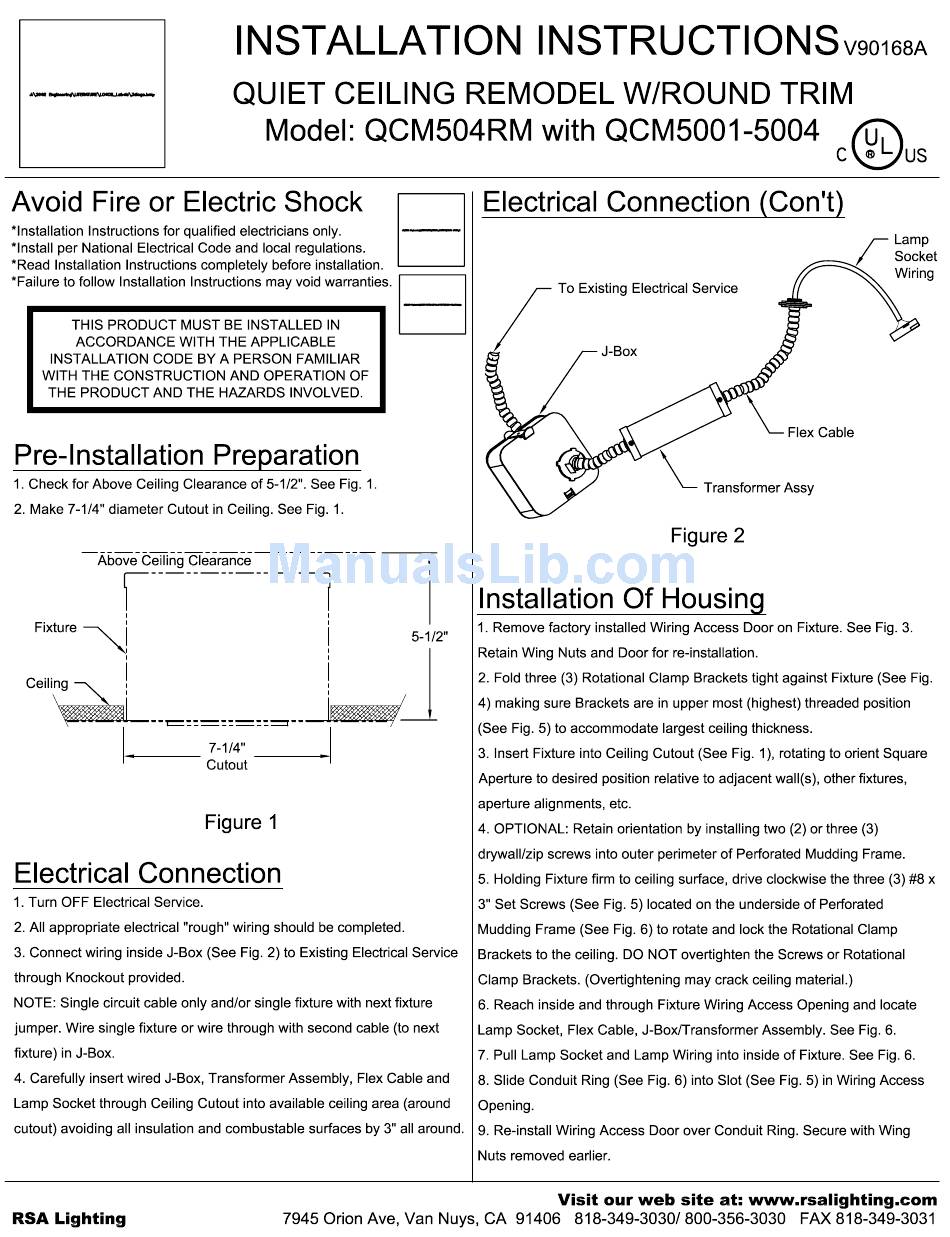

RSA Lighting QCM5001 Installation Instructions

Avoid Fire or Electric Shock
*Installation Instructions for qualified electricians only.
*Install per National Electrical Code and local regulations.
*Read Installation Instructions completely before installation.
*Failure to follow Installation Instructions may void warranties.
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF
THE PRODUCT AND THE HAZARDS INVOLVED.

Pre-Installation Preparation

1. Check for Above Ceiling Clearance of 5-1/2". See Fig. 1.
2. Make 7-1/4" diameter Cutout in Ceiling. See Fig. 1.
Above Ceiling Clearance
Fixture
Ceiling

Electrical Connection

1. Turn OFF Electrical Service.
2. All appropriate electrical "rough" wiring should be completed.
3. Connect wiring inside J-Box (See Fig. 2) to Existing Electrical Service
through Knockout provided.
NOTE: Single circuit cable only and/or single fixture with next fixture
jumper. Wire single fixture or wire through with second cable (to next
fixture) in J-Box.
4. Carefully insert wired J-Box, Transformer Assembly, Flex Cable and
Lamp Socket through Ceiling Cutout into available ceiling area (around
cutout) avoiding all insulation and combustable surfaces by 3" all around.
RSA Lighting
INSTALLATION INSTRUCTIONS
QUIET CEILING REMODEL W/ROUND TRIM
Model: QCM504RM with QCM5001-5004
7-1/4"
Cutout
Figure 1
7945 Orion Ave, Van Nuys, CA 91406 818-349-3030/ 800-356-3030 FAX 818-349-3031
Electrical Connection (Con't)
To Existing Electrical Service

Installation Of Housing

1. Remove factory installed Wiring Access Door on Fixture. See Fig. 3.
5-1/2"
Retain Wing Nuts and Door for re-installation.
2. Fold three (3) Rotational Clamp Brackets tight against Fixture (See Fig.
4) making sure Brackets are in upper most (highest) threaded position
(See Fig. 5) to accommodate largest ceiling thickness.
3. Insert Fixture into Ceiling Cutout (See Fig. 1), rotating to orient Square
Aperture to desired position relative to adjacent wall(s), other fixtures,
aperture alignments, etc.
4. OPTIONAL: Retain orientation by installing two (2) or three (3)
drywall/zip screws into outer perimeter of Perforated Mudding Frame.
5. Holding Fixture firm to ceiling surface, drive clockwise the three (3) #8 x
3" Set Screws (See Fig. 5) located on the underside of Perforated
Mudding Frame (See Fig. 6) to rotate and lock the Rotational Clamp
Brackets to the ceiling. DO NOT overtighten the Screws or Rotational
Clamp Brackets. (Overtightening may crack ceiling material.)
6. Reach inside and through Fixture Wiring Access Opening and locate
Lamp Socket, Flex Cable, J-Box/Transformer Assembly. See Fig. 6.
7. Pull Lamp Socket and Lamp Wiring into inside of Fixture. See Fig. 6.
8. Slide Conduit Ring (See Fig. 6) into Slot (See Fig. 5) in Wiring Access
Opening.
9. Re-install Wiring Access Door over Conduit Ring. Secure with Wing
Nuts removed earlier.
Visit our web site at: www.rsalighting.com
J-Box
Transformer Assy
Figure 2
V90168A
U L
C
US
R
Lamp
Socket
Wiring
Flex Cable
