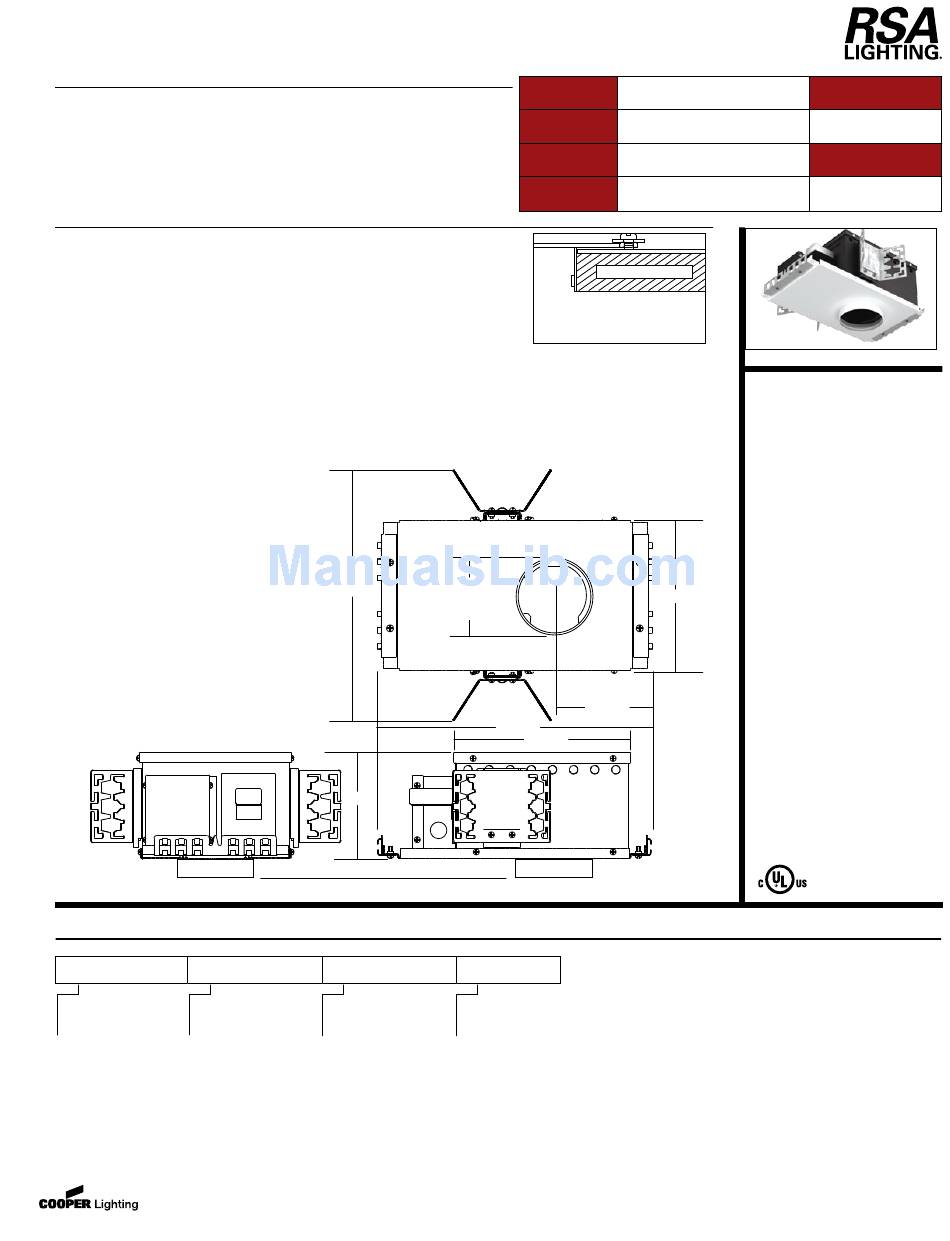

RSA Lighting QCM506SPMH Specification

DESCRIPTION
New construction special ceiling housing for Mini Quiet Ceiling small
aperture round trimless fixtures. (QCM5001, QCM5002, QCM5003,
QCM5004).
For new construction non-I.C applications in non-drywall ceilings
constructed of special materials such as wood, marble, etc.... Insulation
must be kept 3" from all sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Plasterframe opening collar is built
to accommodate a pre-specified ceiling
thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and metal halide ballast.
120V input. Junction box is U.L. listed for
through branch wiring. Includes five 1/2
trade size knockouts.
D ...Lamp
CMH MR16 20W or ES16 BriteSpot
39W Internal rotation ring
(not included).
with locking adjustment. Provides 360º
rotation of trim and secures original trim
position after relamping. Not available
for ceilings greater than 1" thick. GX10
twist-lock lamp socket.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 3.641" dia.
ORDERING INFORMATION
QCM506SPMH
__
Housing Metal Halide Ballast
QCM506SPMH =
20 =
Mini Quiet Ceiling
39 ES16 BriteSpot 39W
=
New Construction Housing
for non-drywall ceilings
for Round Trim
w/ Integral Ballast
www.cooperlighting.com
12.00"
4.63"
Ceiling thickness must be specified
__
Voltage
CMH MR16 20W
120 120 volts primary
=
277 = 277 volts primary*
*Consult factory for 277V ballast availability.
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling Material
Cut-out in ceiling material must be
sized perfectly to the diameter of the
plasterframe collar for trimless effect.
Ceiling
Cut-Out
3.641"dia.
4.63"
13.00"
8.18"
Ceiling Thickness
Specify exact thickness in inches.
1/8" Increments.
Examples: 0.500", 0.625", 0.750", 0.875"
Type
Date
QUIET CEILING
TRIMLESS
QCM506SPMH
New Construction
Housing for
Round Trim
7.25"
Special Ceiling
(non-drywall ceilings)
FOR CMH MR16 20W
or ES16 BriteSpot 39W
MINI
Materials
rev. 091806
