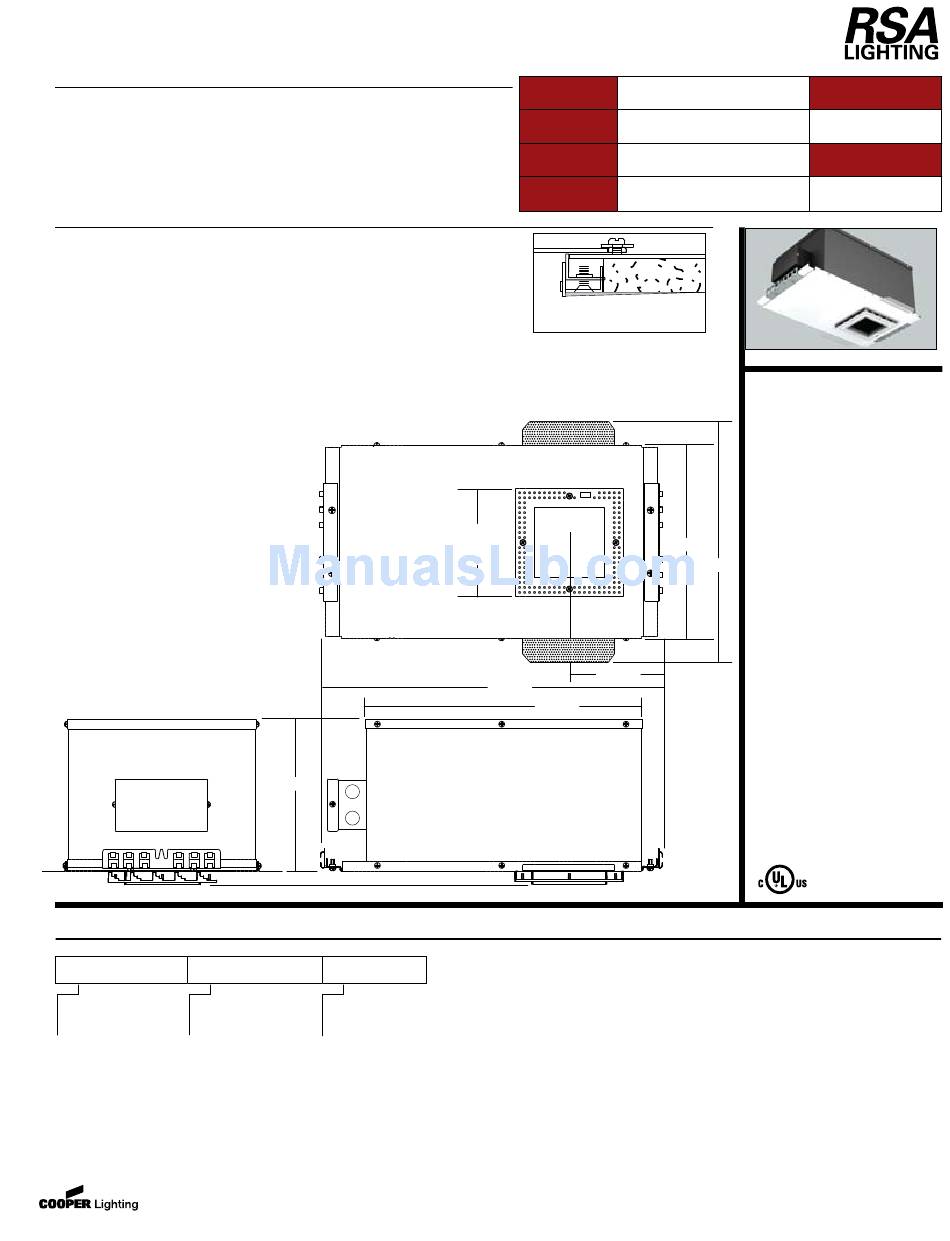

RSA Lighting QCM512IC Specification

DESCRIPTION

New construction I.C. housing for Mini Quiet Ceiling small aperture square
trimless fixtures. (QCM5101, QCM5102, QCM5103, QCM5104).
For use in insulated ceiling I.C. applications. Housing may be covered on
all sides with insulation material.

SPECIFICATION FEATURES

A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable trimless mud-ring can
accommodate 1/2", 5/8", 3/4" & 1" ceiling
thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
C ...Electrical
Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes seven 1/2 trade
size knockouts.

ORDERING INFORMATION

QCM512IC

Housing

Transformer

QCM512IC =
ELC =
Mini Quiet Ceiling
MAG
I.C. Housing
for Square Trim
w/Integral Transformer
www.cooperlighting.com
D ...Lamp
12V MR16 50 watts max.
"POSI-GRIP" bi-pin lamp socket for firm,
mechanical lamp connection.
E ...Mounting
Hanger Bars included. Perforated flaps
for secure drywall installation.
Ceiling Cut-Out: 5.50" sq.
7.63"
0.5" - 1.0"

Voltage

Electronic
120 = 120 volts primary
Magnetic 277
= = 277 volts primary

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
(not included)
Ceiling mudding compound is applied
right to the edge of the fixture.
Ceiling
Cut-Out
5.50"sq.
17.50"
14.25"
QUIET CEILING
Insulated Ceiling
10.00"
12.38"
FOR 12V MR16 50 watts max.
5.00"
Type
Date
MINI
TRIMLESS
QCM512IC
Air Tite
I.C. Housing
for Square Trim
rev. 091806
