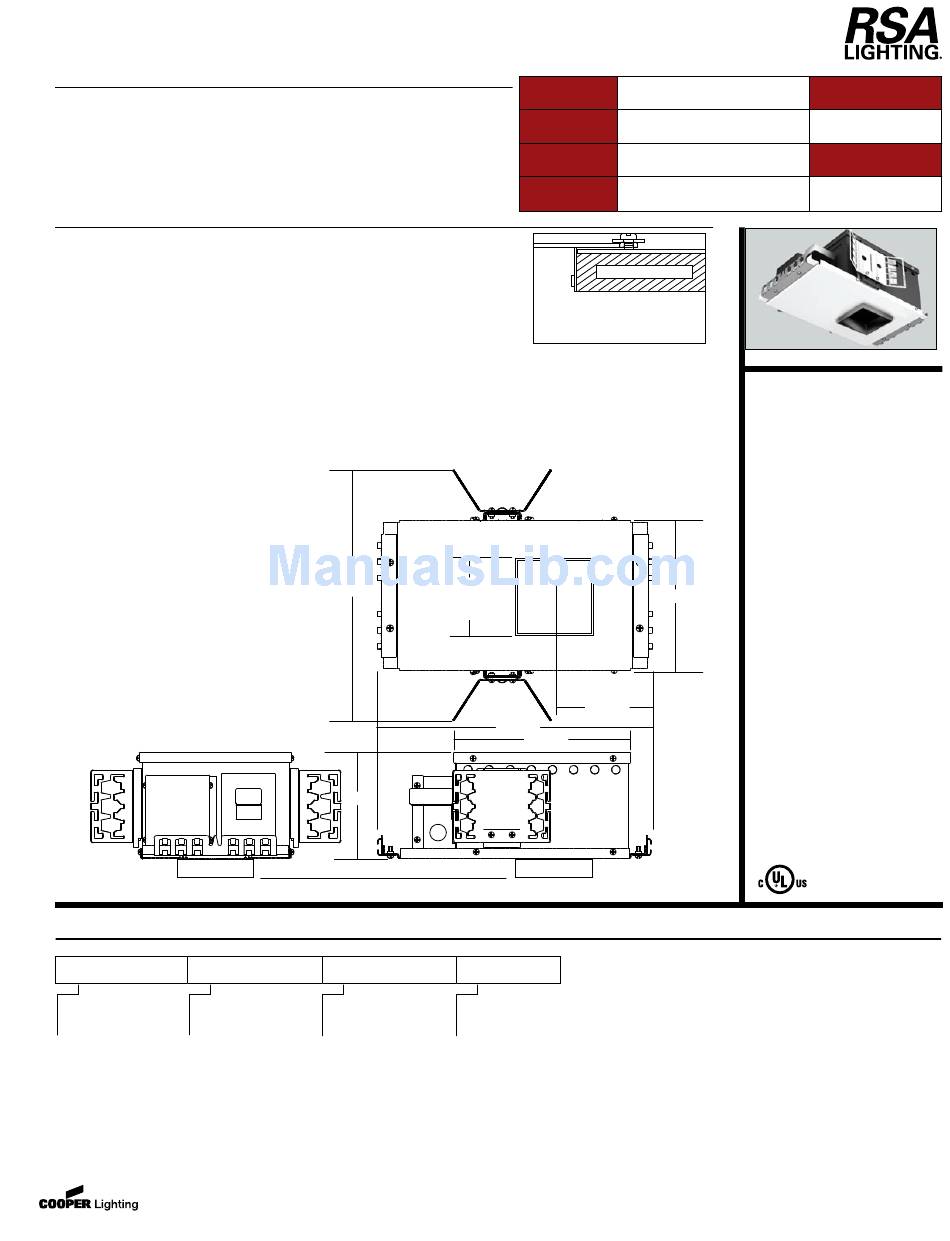

RSA Lighting QCM516SP Specification

DESCRIPTION
New construction special ceiling housing for Mini Quiet Ceiling small
aperture square trimless fixtures. (QCM5101, QCM5102, QCM5103,
QCM5104).
For new construction non-I.C applications in non-drywall ceilings
constructed of special materials such as wood, marble, etc.... Insulation
must be kept 3" from all sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Plasterframe opening collar is built
to accommodate a pre-specified ceiling
thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes five 1/2 trade size
knockouts (six knockouts when magnetic
xfmr. is specified)
ORDERING INFORMATION
QCM516SP
__
Housing Transformer
QCM516SP =
ELC =
Mini Quiet Ceiling
MAG
New Construction Housing
for non-drywall ceilings
for Square Trim
w/Integral Transformer
www.cooperlighting.com
D ...Lamp
12V MR16 50 watts max.
"POSI-GRIP" bi-pin lamp socket for firm,
mechanical lamp connection.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 3.641" sq.
12.00"
4.63"
Ceiling thickness must be specified
__
Voltage
Electronic
120 = 120 volts primary
Magnetic 277
= = 277 volts primary
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
(not included)
Cut-out in ceiling material must be
sized perfectly to the diameter of the
plasterframe collar for trimless effect.
Ceiling
Cut-Out
3.641"sq.
13.00"
8.18"
Ceiling Thickness
Specify exact thickness in inches.
1/8" Increments.
Examples: 0.500", 0.625", 0.750", 0.875"
Ceiling Material
QUIET CEILING
New Construction
7.25"
FOR 12V MR16 50 watts max.
4.63"
Type
Date
MINI
TRIMLESS
QCM516SP
Housing for
Square Trim
Special Ceiling
Materials
(non-drywall ceilings)
rev. 091806
