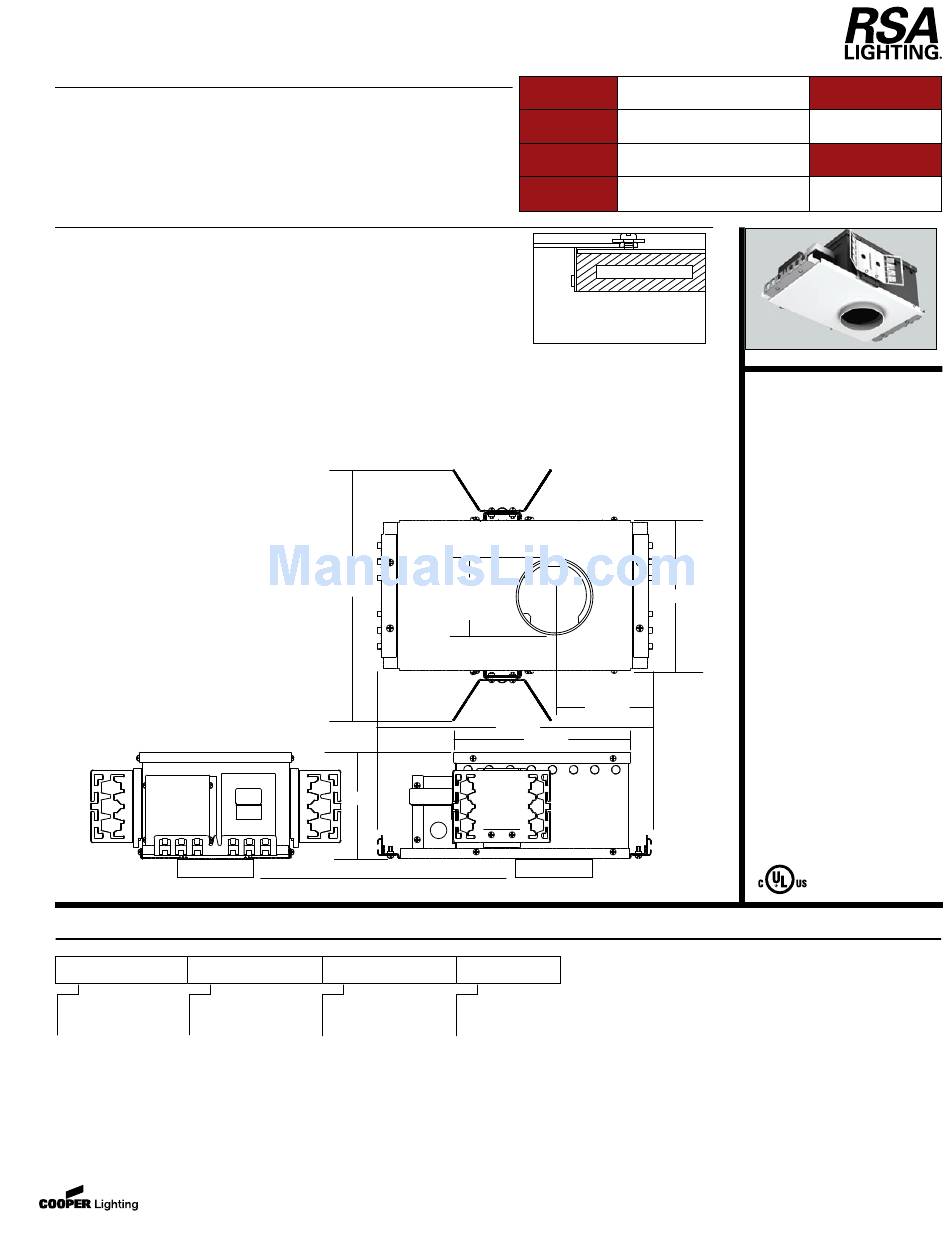

RSA Lighting QCM506SP Specification

DESCRIPTION
New construction special ceiling housing for Mini Quiet Ceiling small
aperture round trimless fixtures. (QCM5001, QCM5002, QCM5003,
QCM5004).
For new construction non-I.C applications in non-drywall ceilings
constructed of special materials such as wood, marble, etc.... Insulation
must be kept 3" from all sides and at least 1" above the housing.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Plasterframe opening collar is built
to accommodate a pre-specified ceiling
thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and low voltage (12V)
transformer . 120V input, 12V output.
Junction box is U.L. listed for through
branch wiring. Includes five 1/2 trade size
knockouts (six knockouts when magnetic
xfmr. is specified)
ORDERING INFORMATION
QCM506SP
__
Housing Transformer
QCM506SP =
ELC =
Mini Quiet Ceiling
MAG
New Construction Housing
for non-drywall ceilings
for Round Trim
w/Integral Transformer
www.cooperlighting.com
D ...Lamp
12V MR16 50 watts max.
Internal rotation ring with locking
adjustment. Provides 360º rotation of trim
and secures original trim position after
relamping. Not available for ceilings
greater than 1" thick. "POSI-GRIP" bi-pin
lamp socket for firm, mechanical lamp
connection.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 3.641" dia.
12.00"
4.63"
Ceiling thickness must be specified
__
Voltage
Electronic
120 = 120 volts primary
Magnetic 277
= = 277 volts primary
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
(not included)
Cut-out in ceiling material must be
sized perfectly to the diameter of the
plasterframe collar for trimless effect.
Ceiling
Cut-Out
3.641"dia.
13.00"
8.18"
Ceiling Thickness
Specify exact thickness in inches.
1/8" Increments.
Examples: 0.500", 0.625", 0.750", 0.875"
Ceiling Material
QUIET CEILING
New Construction
7.25"
FOR 12V MR16 50 watts max.
4.63"
Type
Date
MINI
TRIMLESS
QCM506SP
Housing for
Round Trim
Special Ceiling
Materials
(non-drywall ceilings)
rev. 091806
