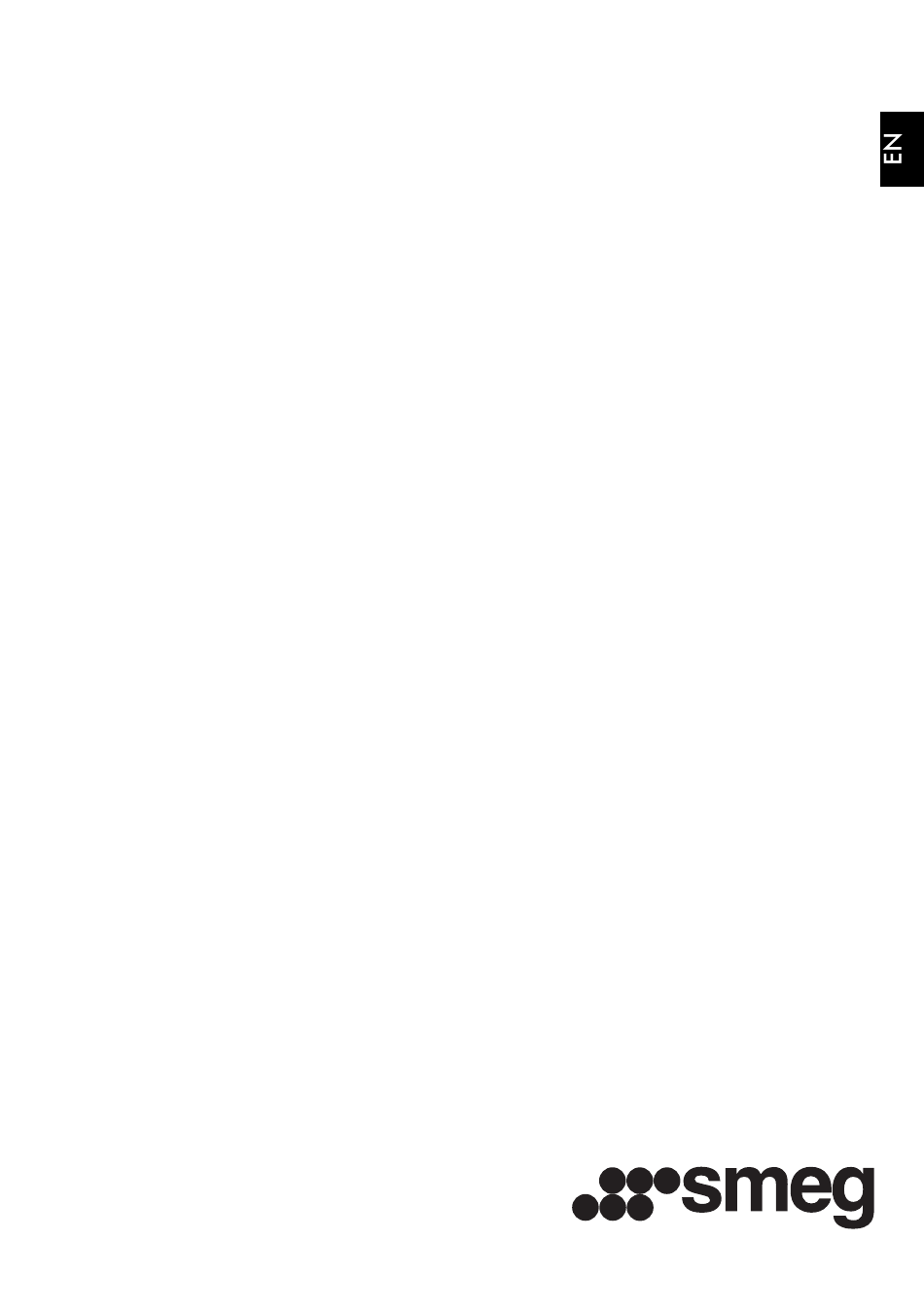

- Page 1 INSTRUCTION MANUAL BUILT-IN OVEN SAP3900X...
- Page 2 ENGLISH Dear customer, we would like to thank you for your confidence in us. By choosing a Smeg product, you have opted for solutions where research for beauty meets innovative technical design to provide unique pieces of furniture. We hope you get the most out of your household appliance.
-
Page 3: Table Of Contents
4.9 Extraordinary maintenance 5 Installation 5.1 Electrical connection 5.2 Cable replacement 5.3 Positioning We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 4: Instructions
Instructions 1 Instructions • Do not modify this appliance. • Do not insert pointed metal objects 1.1 General safety instructions (cutlery or utensils) into the slots in the appliance. Risk of personal injury • Do not try to repair the appliance •... -
Page 5: Manufacturer Liability
Instructions For this appliance 1.4 Disposal This appliance must be disposed of • Ensure that the appliance is switched off separately from other waste before replacing the bulb. (Directives 2002/95/EC, 2002/ • Do not rest any weight or sit on the open 96/EC, 2003/108/EC). -
Page 6: Identification Plate
Instructions 1.7 How to read the user manual Our appliances are packed in non- polluting and recyclable materials. This user manual uses the following reading • Consign the packing materials to the conventions: appropriate selective collection centres. Instructions Plastic packaging General information on this user Danger of suffocation manual, on safety and final... -
Page 7: Description
Description 2 Description 2.1 General Description 1 Control panel 5 Fan 2 Oven light 6 Rack/tray support frames 3 Seal 7 Storage compartment 4 Door Frame shelf... -
Page 8: Control Panel
Description 2.2 Control panel Return knob (1) 2.3 Other parts Using this knob you can return to the Shelves appliance's previous menu item. It also lets The appliance features shelves for you manually turn the oven light on and off. positioning trays and racks at different Display (2) heights. -
Page 9: Available Accessories
Description 2.4 Available accessories Oven tray Some models are not provided with all accessories. Rack Useful for collecting fat from foods placed on the rack above. The oven accessories intended to come into contact with food are made of materials that comply with Useful for supporting containers with food the provisions of current legislation. -
Page 10: Use
3 Use Improper use Risk of damage to enamelled 3.1 Instructions surfaces High temperature inside the oven • Do not cover the bottom of the oven during use cavity with aluminium or tin foil sheets. Danger of burns • If you wish to use greaseproof paper, place it so that it will not interfere with the •... -
Page 11: Using The Accessories
3.3 Using the accessories Tray rack The tray rack has to be inserted into the tray. Racks and trays In this way fat can be collected separately Racks and trays have to be inserted into the from the food which is being cooked. side guides until they come to a complete stop. -
Page 12: Using The Oven
3.5 Using the oven Cooking functions 1. Select “cooking functions” from the menu First use by pressing the control knob. On the first use, or after a power failure, 2. Turn the control knob to select the will be flashing on the appliance's required function. - Page 13 Functions list It is not recommended to place the dish in the oven during the Certain functions are not available automatic pre-heat stage. on all models. 4. When the preheating stage is over a buzzer will sound to indicate that the food can be placed inside the oven.
- Page 14 Lower element Fan + bottom The heat coming just from the The combination of the fan with just bottom allows you to complete the the lower heating element allows cooking of foods that require a cooking to be completed more higher bottom temperature, without rapidly.
-
Page 15: Cooking Advice
3.6 Cooking advice Advice for cooking desserts/pastries and biscuits General advice • Use dark metal moulds: they help to • Use a fan assisted function to achieve absorb the heat better. consistent cooking at several levels. • The temperature and the cooking time •... - Page 16 To save energy Timed cooking • Stop cooking a few minutes before the Timed cooking is the function time normally used. Cooking will which allows a cooking operation continue for the remaining minutes with to be started and then ended after the heat which has accumulated inside a specific length of time set by the the oven.
- Page 17 4. At the end of the cooking time “cooking Programmed cooking completed” appears on the display and Programmed cooking is the a buzzer will sound that can be function which allows a cooking deactivated by pressing the control operation to be stopped at an knob.
- Page 18 Modifying the data set during 4. After a few seconds the programmed cooking symbols stop flashing. The appliance waits for the set start time. After modifying the cooking time, the end of cooking time must be re- set. During operation, it is possible to modify programmed cooking duration: 1.
-
Page 19: Special Functions
3.7 Special functions Keep warm The special functions menu contains some Useful to keep already cooked functions like the minute minder with the food warm without altering the taste oven off, cooking functions, keep warm or and smell obtained during cooking. cleaning functions (certain models only). - Page 20 Minute minder If a function is activated after setting a minute minder time, this 1. Select minute minder from the special functions menu. time will be automatically used as a minute minder for the function. This function only activates the buzzer, without stopping cooking.
-
Page 21: Preset Recipes
3.8 Preset recipes 4. Select the weight of the food to cook by turning the control knob. This mode allows you to select a pre-set food cooking program. The appliance will automatically calculate the optimum cooking parameters based on the weight entered. Starting a program 1. - Page 22 The predefined cooking It is not recommended to place the parameters can be changed at dish in the oven during the any time, even after cooking has automatic pre-heat stage. Wait for started. the specific message. 7. A message will indicate when to place 3.
- Page 23 4. Select the cooking time 7. Pressing the control knob again will return to point 2 of the change sequence. You must press the return knob to save the program. The appliance will ask to confirm the changes which have just been made.
- Page 24 Predefined program table BREAD Weight Time Subcategory Cooking Function Level Temp. (°C) (Kg) (minutes) Focaccia Turbo Leavened bread Circulaire PASTA/RICE Weight Time Subcategory Cooking Function Level Temp. (°C) (Kg) (minutes) Lasagne Static Paella Fan assisted Pasta bake Static Quiche Static PIZZA Weight Time...
- Page 25 Weight Time Subcategory Cooking Function Level Temp. (°C) (Kg) (minutes) Fresh fish Fan assisted Frozen fish Circulaire Monkfish Circulaire Sea bass Circulaire Snapper Circulaire Turbot Circulaire MEATS Weight Time Subcategory Cooking Function Level Temp. (°C) (Kg) (minutes) Bacon Fan with grill Chicken roasted Turbo...
-
Page 26: Personal Recipes
VEGETABLES Weight Time Subcategory Cooking Function Level Temp. (°C) (Kg) (minutes) grilled Grill Mixed vegetables roasted Circulaire frozen Fan assisted Potatoes roasted Static 3.9 Personal recipes The cooking times in the table refer to the food indicated in the recipe This menu allows you to enter a personal and are a guide only;... - Page 27 2. Select the function the recipe is to use by 6. Select the shelf turning the control knob. 7. You must press the return knob to save 3. Select the weight the recipe. Pressing the control knob will return to point 2 of the change sequence. 8.
- Page 28 9. After entering the name of your recipe, 2. Select the “start” option from the press the return knob to confirm or cancel submenu. the information you have entered. Select “YES” if you wish to store the recipe. 3. Cooking will start with the parameters previously set for the recipe.
-
Page 29: Settings
3. Repeat the steps given in the “ Adding a 3.10 Settings recipe” chapter, starting from point 2. The product is set using this menu. Delay cooking 1. Select a personal recipe. 2. Select the “Delay cooking” option from the submenu. 3. - Page 30 Control lock Eco-Logic Allows the appliance to automatically lock This mode allows the appliance to limit the the controls after one minute of normal power used. The symbol will appear operation without any intervention from the on the display if this option is enabled. user.
-
Page 31: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for 4.1 Instructions too long, they might damage the enamel lining of the oven. Improper use 4.5 Removing the door Risk of damage to surfaces... -
Page 32: Cleaning The Door Glazing
Cleaning and maintenance and once it is in place remove the pins The oven should be operated at from the holes in the hinges. the maximum temperature for about 15-20 minutes after the use of specific products, to burn off the residues left inside the oven. -
Page 33: Pyrolytic: Automatic Oven Cleaning
Cleaning and maintenance 4.8 Pyrolytic: automatic oven • Completely remove all accessories from inside the oven (do not remove the upper cleaning guard) Pyrolytic is an automatic high- • Remove the racks/trays support frames. temperature cleaning procedure • Close the door. which causes dirt to dissolve. - Page 34 Cleaning and maintenance 3. Press the control knob to start the 5. At the end of the pyrolytic cycle, the door remains locked as long as the pyrolytic cycle. The symbol will now temperature inside the oven returns to be lit solidly. safety levels.
-
Page 35: Extraordinary Maintenance
Cleaning and maintenance Setting of programmed pyrolytic cycle 4.9 Extraordinary maintenance It is possible to program the pyrolytic cycle Live parts start time like all other cooking functions. Danger of electrocution 6. After selecting the pyrolytic cycle duration, press the control knob. The •... - Page 36 Cleaning and maintenance What to do if... The display shows “Error 4”: • The door lock has not properly attached The display is completely off: to the door. This might be because the • Check the mains power supply. door was accidentally opened during •...
-
Page 37: Installation
Installation 5 Installation Fixed connection Fit the power line with an omnipolar circuit 5.1 Electrical connection breaker in compliance with installation regulations. Power voltage The circuit breaker should be located near Danger of electrocution the appliance and in an easily reachable position. -
Page 38: Cable Replacement
Installation 5.2 Cable replacement 5.3 Positioning Power voltage Heavy appliance Danger of electrocution Danger of crush injuries • Disconnect the main power supply. • Place the appliance into the piece of furniture with the aid of a second person. 1. Unscrew the rear casing screws and Pressure on the open door remove the casing to access the terminal Risk of damages to the appliance... - Page 39 Installation Fastening bushings Cover the bushings with the covers removed previously. Remove the bushing covers inserted on the oven front. Mount the appliance into the recess. Appliance overall dimensions (mm) Secure the appliance to the piece of furniture using screws.
- Page 40 Installation Mounting under worktops (mm) Mounting into a column (mm) Make sure that the piece of furniture rear/bottom part has an opening of approx. 60 mm. Make sure that the piece of furniture top/rear part has an opening approx. 35-40 mm deep.
