Summary of Contents for Bauhn MD 44055

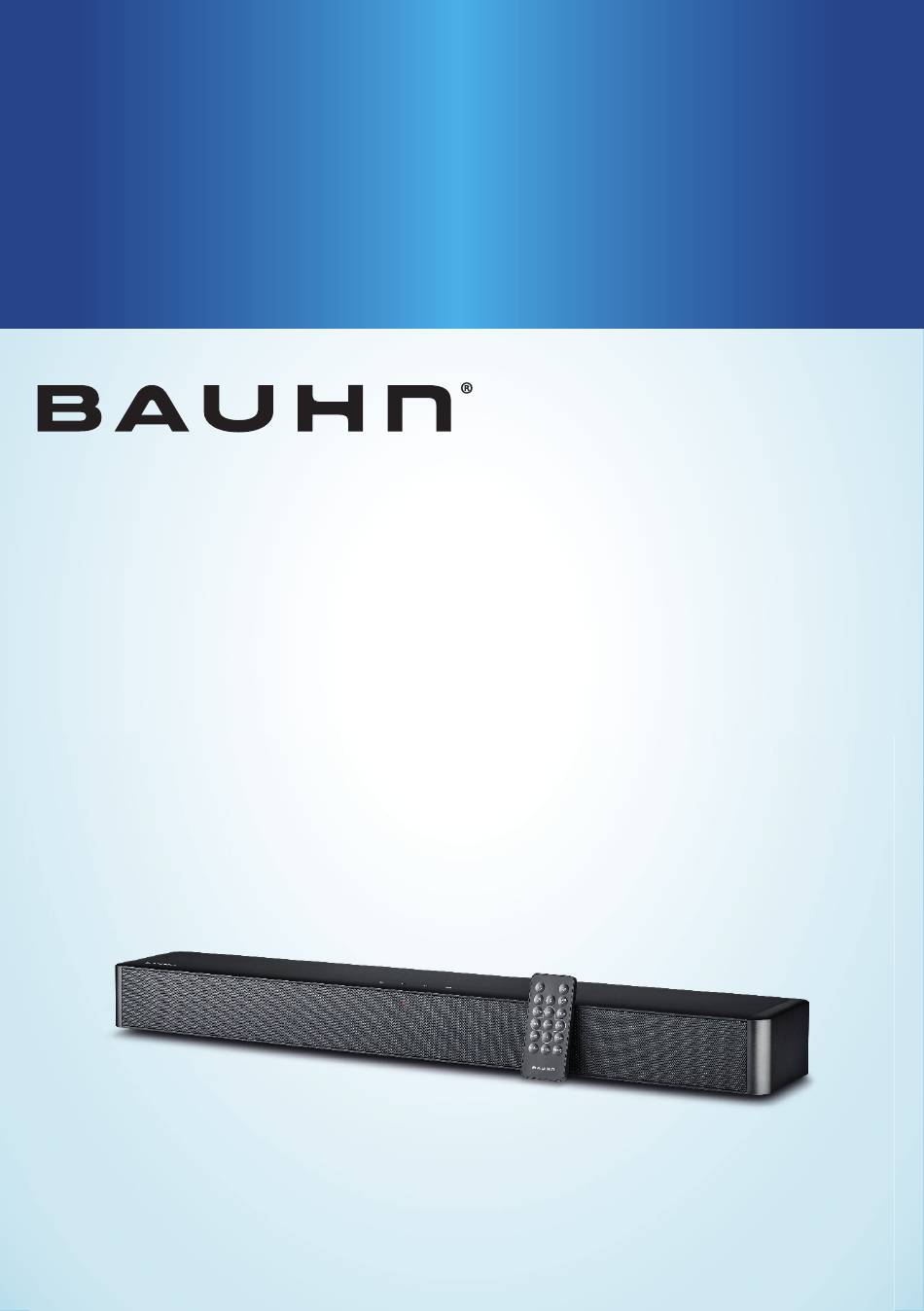

- Page 1 User Manual 2.0 CHANNEL SOUNDBAR MD 44055...
-
Page 2: Table Of Contents
Contents Contents About these operating instructions ............... 5 Explanation of symbols ..................5 Proper use ....................... 7 Safety information ..................8 Setting up the device safely ................8 Power supply ..................... 10 Handling batteries .................... 10 Ambient temperature ..................12 Faults ........................13 Package contents ...................14 Device overview .....................15 Front ........................15 Rear ........................15... - Page 3 Contents Setting the treble and bass ................27 Controlling playback in Bluetooth® mode ............28 Maintenance ....................28 Cleaning ......................29 Storing the device when not in use .............. 29 Troubleshooting .................... 29 Declaration of conformity ................30 Trademark information ..................31 Disposal ......................
-
Page 4: About These Operating Instructions
About these operating instructions About these operating instructions Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions carefully before using the device for the fi rst time. Note the warnings on the device and in the operating instructions. Always keep the operating instructions close to hand. - Page 5 About these operating instructions Protection class II Electrical appliances in protection class II are electrical appliances that permanently have double and/or reinforced insulation and do not have any connection options for a protective earth. The housing of an electrical appliance in protection class II that is enclosed in insulated material can partially or fully act as the additional or reinforced insulation.
-
Page 6: Proper Use
Proper use Proper use The device is used to play back audio signals. The soundbar is designed for connecting to televisions. Other devices such as portable CD or MP3 players, computers/notebooks, smartphones and stereo systems can also be connected. The device is only intended for private use and not for industrial/ commercial use. -
Page 7: Safety Information
Safety information Safety information WARNING! Risk of injury due to improper handling. − This device is not intended to be used by people (including children) with reduced physical, sensory or mental capacity or with a lack of experience and/or knowledge unless they use the device under the supervision of a person responsible for their safety or if they have been given instructions about how to use the device safely. - Page 8 Safety information − Do not use the device in areas where there is a risk of explosion. This includes e.g. fuel pumps, fuel storage areas or areas in which corrosive agents are processed. This device should also not be used in areas where the air is contaminated with particles (e.g.
-
Page 9: Power Supply
Safety information Power supply WARNING! Risk of injury due to electric shock! There is a risk of electric shock due to live wires. − The power points must be located near the device and be easily accessible. Lay the cord in such a way that no-one can step on it or trip over it. - Page 10 Safety information WARNING! Risk of chemical burns! WARNING- KEEP BATTERIES OUT OF REACH OF CHILDREN The remote control contains a CR2025 button cell battery. Swallowing or placing inside any part of the body may lead to serious or fatal injury in as little as 2 hours, due to chemical burns and potential perforation of the esophagus.
-
Page 11: Ambient Temperature
Safety information − Never attempt to recharge the batteries. There is a risk of explosion! − Never expose the batteries to excessive heat (such as sunlight, fi re or similar). − Store batteries in a cool and dry place. Extreme direct heat can damage the batteries. -
Page 12: Faults
Safety information DANGER! Risk of electric shock! In the event of signifi cant fl uctuations in temperature or humidity, condensation may cause moisture to build up within the device, which can cause an electrical short circuit. − After transporting the device, wait until it has reached the ambient temperature before operating it. -
Page 13: Package Contents
Package contents Package contents DANGER! Risk of choking and suffocation! There is a risk of choking and suffocation if plastic fi lm or small parts are inhaled or swallowed. − Keep packaging away from children. − Do not allow children to play with the packaging material. −... -
Page 14: Device Overview
Device overview Device overview Front Infrared receiver for remote control signals LED indicator light Rear Fixing points for wall mounting... -
Page 15: Top
Device overview Switch on the soundbar/switch to standby mode Decrease volume Increase volume Select audio source (AUX IN, OPTICAL, BLUETOOTH, HDMI ARC) Connections (rear) Connection socket for mains cable (100-240 V 50/60 Hz) -
Page 16: Remote Control
Device overview OPTICAL Optical input socket for TV and other audio output devices USB port designed exclusively for service purposes (connection SERVICE only for authorised specialist personnel; not intended for ONLY charging external devices such as smartphones, tablets etc.) Connection socket for TV and other audio output devices AUX IN (3.5 mm jack) Output socket for ARC-enabled TVs, computers and other audio... -
Page 17: Preparing For Initial Use
Preparing for initial use MOVIE Set “Movie” equaliser sound effect NEWS Set “News” equaliser sound effect VOL - Decrease volume BASS - Decrease bass In Bluetooth mode: Play previous track BASS + Increase bass VOL + Increase volume Select the audio source (BLUETOOTH/AUX/HDMI ARC/OPTICAL) Switch on the soundbar / switch to standby mode Preparing for initial use Inserting the batteries into the remote control... -
Page 18: Setting Up/Mounting The Soundbar
Inserting the batteries into the remote control If the device does not respond to the remote control or responds only poorly, the battery needs to be replaced. Proceed as described below and as shown in Fig. 2: − Push the lock tab (A) in and pull the battery tray with the battery (B) out of the remote control. - Page 19 Inserting the batteries into the remote control Variant A – operating soundbar on a horizontal surface NOTICE! Risk of damage! Risk of damage to the device if the device is installed incorrectly. − Set up and operate the device on a stable, level and vibration- free surface to prevent the device from falling.
- Page 20 Inserting the batteries into the remote control Proceed as described below and as shown in Fig. 5 to mount the soundbar onto an internal wall: − Drill two parallel holes in the wall. To do so, use an appropriate drill bit for the respective surface (dia. 5.5-6 mm, depending on the wall construction).
-
Page 21: Connecting External Devices
Connecting external devices Connecting external devices You can connect a wide range of different audio output devices to the soundbar, including a television, MP3 or CD player, receiver and computer. − Switch off all the devices before connecting them to each other. Also comply with the information in the user manual for the particular device you want to connect to the soundbar. -
Page 22: Connecting External Devices Via The Optical Connection
Connecting external devices − Connect the jack plug to the soundbar’s AUX IN connection. − Insert the red and white cinch plugs at the other end of the cable into the corresponding colour-coded output sockets on the audio output device. Devices such as stereo receivers or televisions usually have one red and one white audio output socket. -
Page 23: Connecting Televisions Via Hdmi Arc
Connecting external devices Connecting televisions via HDMI ARC Proceed as follows to connect your television to the soundbar via HDMI ARC (see Fig. 8): − Set the volume on your television to a medium level. − Switch off the television and the soundbar. -
Page 24: Starting Up The Soundbar
Starting up the soundbar Starting up the soundbar Connecting the soundbar to the power supply − Check that all the devices you want to connect are connected to the soundbar. − Connect the supplied mains cable to the AC~ connection socket on the soundbar and plug the other end into an easily accessible power socket. -
Page 25: Operation
For more information about the Bluetooth function of your audio output device, please refer to the corresponding user manual. The device name of the soundbar “MD 44055” will be displayed in the device list on your audio output device as soon as the signal is found. -
Page 26: Setting The Volume
Operation LED indicator light colour Operating mode Blue Bluetooth White HDMI ARC Setting the volume − Press the button on the soundbar or the VOL + button on the remote control to increase the playback volume. − Press the button on the soundbar or the VOL - button on the remote control to decrease the playback volume. -
Page 27: Controlling Playback In Bluetooth® Mode
Maintenance Controlling playback in Bluetooth® mode If you have connected the soundbar to a device that supports the A2DP and AVRCP profi les (Audio Video Remote Control), the soundbar is used as an output medium and all audio signals are only output via the soundbar. If you have connected the soundbar to your Bluetooth-enabled mobile phone, the music playing through the soundbar is interrupted when you receive a call, and only continues when you fi... -
Page 28: Cleaning
Cleaning Cleaning NOTICE! Risk of damage! Risk of damage to the device due to improper use of the device. − Before cleaning the device, always disconnect it from the power supply by unplugging the mains plug. − Make sure that no liquid gets inside the device. −... -
Page 29: Declaration Of Conformity
− Change the position of the soundbar to avoid disruptive external infl uences. − Move the objects responsible for the distortion (mobile phone or similar) away from the device. Declaration of conformity MEDION AG hereby declares that the product P61155 (MD 44055) conforms to all relevant Australian requirements. -
Page 30: Trademark Information
Disposal Trademark information The terms HDMI, HDMI High-Defi nition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by Lenovo/MEDION is under license. Other trademarks and trade names are those of their respective owners. -
Page 31: Technical Specifi Cations
Technical specifi cations Technical specifi cations General data Dimensions (WxHxD): 660 mm × 65 mm × 117.5 mm Weight: 2.37 kg Power supply: AC 100–240 V ~ 50/60 Hz Degree of protection: Protection class II Input power (during operation): 20 W Input power (in standby mode): <... -
Page 32: Service Information
Service information Service information Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us: • In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. -
Page 33: Privacy Statement
Privacy statement Privacy statement Dear customer, We wish to inform you that we, MEDION AG, Am Zehnthof 77, D-45307 Essen, Germany process your personal data as a data controller. For matters regarding data protection, we are supported by our company data protection offi... -
Page 34: Legal Notice
Legal notice Legal notice Copyright © 2022 Date: 22.07.2022 All rights reserved. Version: V10.0 These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the distributing company: MEDION AG Am Zehnthof 77 45307 Essen... -
Page 35: Warranty Details
2.0 CHANNEL SOUNDBAR Warranty Details REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. -
Page 36: Repair And Refurbished Goods Or Parts Notice
2.0 CHANNEL SOUNDBAR Repair and Refurbished Goods or Parts Notice REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as fi... - Page 38 Customer Service Hotline. Made in China BAUHN is a registered trademark of Hands (IP) DISTRIBUTED BY: ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 www.aldi.com.au...
