VENTRA VMDR-888 Quick Reference Manual

Complete User Guide and PC Management software is included in the CD, can also be downloaded link
Prior to permanent mounting of the VMDR and cameras, lay out the system to
familiarize the parts. Do bench test connections in vehicle PRIOR to permanent
mounting of system so slots, cables and connectors are easily accessible
Require LCD monitor with RCA connection to connect to VMDR to view settings menu and
camera angle

Power Connection

VMDR-888 power cable requires 3 wire connection to vehicle's fuse panel
Yellow = 12/24VDC Constant Power
Blue = IGN / ACC
Black = Ground

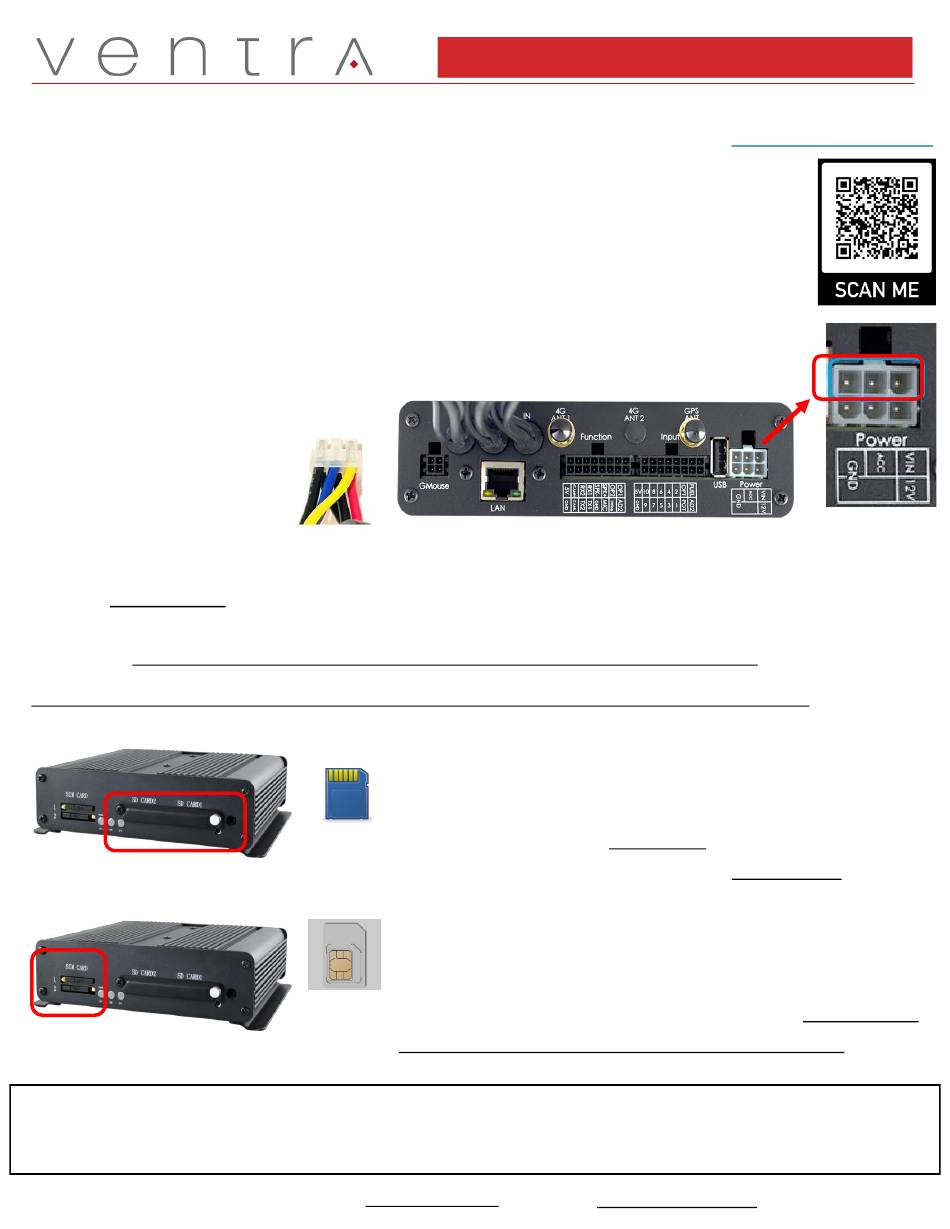

Connect the power cable 6 prong white plug to the VMDR-888 Power connector on the rear.
Use only the 3 wires on TOP row (Yellow, Blue and Black) of the white Plug (Circled in blue) to connect to the vehicle fuse
IMPORTANT: SD card MUST be formatted in the VMDR on on desktop PC software PRIOR to recording
Do NOT insert or Remove SD card while VDMR is powered On. Always power off system before handling card
Warning:
Install VMDR system only when vehicle is safely parked, leveled and Powered OFF
Professional installation is highly recommended as system connects to vehicle fuse. Refer to vehicle owner's manual
Ventra Technology Inc.
Page 1
VMDR-888 Mobile DVR
Quick Reference Guide

SD card

• Remove the screw from the SD card slot.
• Each slot supports up to 512GB SD card. Must be class U3 / V3 or faster
• If only using 1 SD card, use SD Card Slot 1
• After format, SD card will show between 77.5 – 82.5MB
(VMDR is compatible with T-Mobile carrier only)

SIM Card

If cellular data service was ordered through Ventra, a Standard side SIM card
will be included and installed in the system. If customer purchases from
T-Mobile, SIM card would need to be installed in SIM card Slot 1 (Top slot)
SIM card gold contacts should face downward when using Slot 1
www.ventrainc.com
VMDR-888 User Guide - 09 22
QR Code
User Guide
support@ventrainc.com
Ver. 02 23
