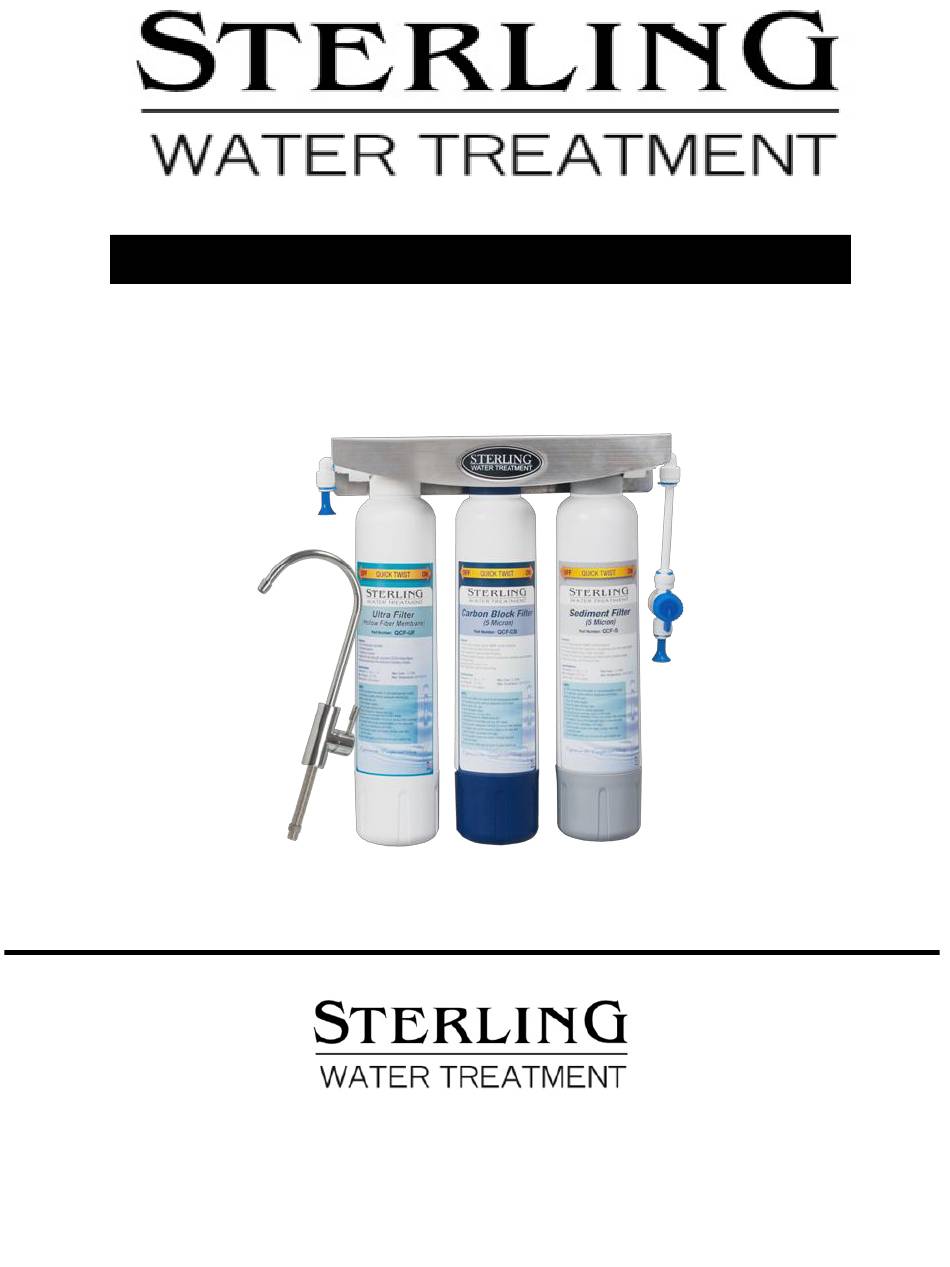

- Page 1 INSTALLATION MANUAL CRS-3 12630 US 33 N. Churubusco, IN 46723 Ph. (260)693-1972 Fax (260)693-0602 www.sterlingwatertreatment.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: SECTION I. INTRODUCTION................3 SECTION II. SPECIFICATIONS..............3 SECTION III: PREPARATION.................4 Major System Components......................4 B. Tools Recommended for Installation..................4 C. Determine System Location......................4 D. Prepare the Area for Installation....................5 E. Prepare the Appliance for Installation..................5 SECTION IV. INSTALLATION STEPS............5 A. -
Page 3: Introduction
SECTION I. INTRODUCTION Congratulations, you have just purchased one of CARBON BLOCK PRE FILTER - The carbon filter the finest Drinking Water Appliances available. is a carbon block that has coconut shell activated carbon with a smaller pore size to increase the Like any other fine product, this appliance requires range of organics removed and extend the amount periodic maintenance in accordance with the... -
Page 4: Preparation
C. Determine System Location 1. A UF assembly consisting of the aluminum bracket, filter housings, automatic shut-off. The CRS-3 system can be located under a sink or 2. A faucet kit. in a basement depending on space availability and the customer’s preference. If a basement 3. -
Page 5: Prepare The Area For Installation
1) Faucet - The faucet should be placed near SECTION IV. INSTALLATION STEPS the sink where drinking water is normally obtained. Convenience of use (filling of All plumbing should be done in accordance with water pitchers and glasses), and an open state and local plumbing codes. -
Page 6: Install The Faucet
A. Install the Faucet b) Slowly drill the required pilot hole for the chassis punch. c) Set up the chassis punch per instructions See Figure 1 for Faucet Installation Diagram and tighten nut to cut the desired hole size. The customer should be consulted before d) Clean up sharp edges with a file if determining faucet location. -
Page 7: Mount The Faucet
2. Mount the Faucet: SOFT COPPER TUBING INSTALLATION: a) Familiarize yourself with all components shown in faucet diagram. 1) Turn off cold water valve under the sink, or b) Disassemble hardware from the threaded main valve for the house. nipple, except for chrome base plate and 2) Before installing saddle tapping valve, make rubber washer. -
Page 8: Install The Purification Assembly
F. Start up the System D. Install the Purification Assembly 1) Double check that all connections are The purification assembly is usually mounted to the secure. right or left sink cabinet sidewall, taking into con- 2) Turn on feed water valve and check for sideration the space available. -
Page 9: Installation Drawing & Parts List
C. Installation Drawing & Parts List Part Number Description Luxury long reach faucet, non air gap, RO-DW-1 chrome Faucet connector, ¼” tube X 7/16” 4FC4 TU-2W ¼” OD white poly tubing, per foot 4SE4 Stem elbow, ¼” tube X ¼” stem Male connector, ¼”... -
Page 10: For Systems Equipped With Quick Connect Fittings
D. For System Equipped with Quick Connect TO ATTACH TUBING... Fittings Your new UF Drinking Water Appliance may be outfitted with new generation of user-friendly quick connect push-in fittings. Proper use of the fittings is shown in the diagrams. It is important that the tubing selected for use with these connectors be of high quality exact size and roundness, and with no surface nicks or scratches. -
Page 11: Section Vi: Troubleshotting Guide
SECTION VI. TROUBLE SHOOTING GUIDE Problem Possible Cause Solution Low quantity of Product Feed Water Saddle Valve is Open Valve or unclog. Water from Dispensing plugged or closed. Faucet Clogged Sediment Prefilter or Replace filters. Activated Carbon Prefilter. Low water pressure Feed Water pressure must be above 40 psig. -
Page 12: Limited Warranty
U.F. DRINKING WATER SYSTEM LIMITED WARRANTY What Does This Warranty Cover? This warranty covers any defects in materials and workmanship of the UF Drinking Water System when installed and operated within recommended parameters, with the exceptions stated below. How Long Does The Coverage Last? The manufacturer will warrant its UF Drinking Water System, for a period of one year from the date of purchase.
