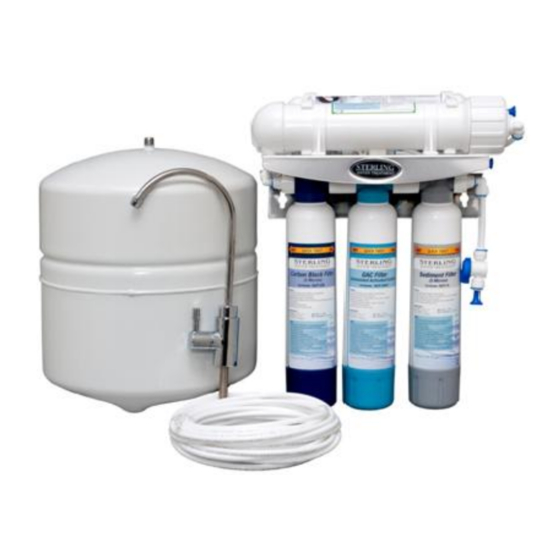

- Page 1 INSTALLATION MANUAL QCRO-50 QCRO-50-PUMP SRO-100 12630 US 33 N. Churubusco, IN 46723 Ph. (260)693-1972 Fax (260)693-0602 www.sterlingwatertreatment.com QCRO Manual 180728.docx...
-
Page 2: Table Of Contents
SECTION V: OPERATION & MAINTENANCE..........12 A. Normal Operation.......................12 B. Changing Filters.........................12 C. For Systems Equipped with Quick Connect Fittings............13 SECTION VI: TROUBLESHOOTING GUIDE.............14 QCRO-50 PARTS BREAKDOWN...............16 QCRO-50-PUMP PARTS BREAKDOWN............18 SRO-100 PARTS BREAKDOWN……………………………………………………20 LEAK STOP VALVE – Compressed Pellet Replacement........22 WARRANTY…………………………………….………..........23... -
Page 3: Introduction
ACTIVATED CARBON PRE FILTERS - The first SECTION I. INTRODUCTION carbon filter contains granular activated carbon which removes chlorine and absorbs organics that Congratulations, you have just purchased one of can damage the membrane. The second carbon the finest reverse osmosis drinking water filter is a carbon block that has activated carbon appliances available. -
Page 4: Specifications
SECTION II. SPECIFICATIONS TABLE A – QUALIFIED SYSTEM PERFORMANCE Because the performance of an R.O. membrane is highly dependent upon pressure, temperature and TDS, the following should be used for comparison purposes only. U.S. Metric Membrane Production 40-60 gpd 151-227 Ipd Membrane TDS Reduction 93% minimum 93% minimum... -
Page 5: Preparation
SECTION III: PREPARATION C. Determine System Location A. Major System Components The R.O. system can be located under a sink or in a basement depending on space availability and The following components comprise the R.O. drink- the customer’s preference. ing water system: If a basement installation is selected, additional 1) A reverse osmosis assembly consisting of the tubing, hardware and fittings may be needed and a... -
Page 6: Prepare The Area For Installation
4) Feed Water Connection - The self-piercing E. Prepare the Appliance for Installation feed water shut off valve should be located as close to the R.O. assembly as possible. Open shipping carton and remove components. USE A POTABLE COLD WATER SUPPLY Check that all installation parts are present which ONLY. -
Page 7: Installation Steps
d) Clean up sharp edges with a file if SECTION IV. INSTALLATION STEPS necessary. All plumbing should be done in accordance with PORCELAIN/ENAMEL/CERAMIC ON SHEET state and local plumbing codes. METAL OR CAST IRON BASE: NOTE: Some codes may require installation by a Recommended tools: licensed plumber;... -
Page 8: Mount The Faucet
2. Mount the Faucet: compression nut, plastic ferrule and tube insert. Thread the quick connect fitting securely onto the threaded nipple and firmly insert the 3/8" tubing into the quick connect fitting. B. Install the Feed Water Valve and Tubing The saddle tapping valve supplied is designed for use with 3/8"... -
Page 9: Prefill And Sanitize The Storage Tank
RIGID METAL PIPE AND CPVC PLASTIC PIPE The drain saddle assembly is designed to fit around INSTALLATION: a standard 1-1/2" OD drain pipe. 1) Turn off cold water supply valve and drain the The drain saddle should always be installed above line to prevent spillage. -
Page 10: Install The Ro Membrane
R.O. assembly is positioned pressure to operate properly; a pump model toward the front for cartridge accessibility. (QCRO-50-PUMP or SRO-100) may be required. To mount the R.O. assembly elevate at least 2" off Hooking up an ice maker involves connecting a tee... -
Page 11: Start Up The System
NOTE: Before any service is performed on the R.O. connected to the system, an ice maker system, always turn off ice maker valve and the ice should be turned on only AFTER the maker unit. Only turn on when system is operating flushing procedure. -
Page 12: Section V: Operation & Maintenance
Use a drip pan to catch any water that may spill SECTION V. when the filter housings are removed: OPERATION & MAINTENANCE 1) Close plastic supply valve located on the inlet line of the system. A. Normal Operation 2) Close the valve on the inlet of the storage tank. -
Page 13: For Systems Equipped With Quick Connect Fittings
To fix a leak: Relieve pressure Release tubing Cut off at least ¼” from end Reattach tubing Confirm connection is leak free TO ATTACH TUBING... TO RELEASE TUBING... -
Page 14: Section Vi: Troubleshooting Guide
SECTION VI. TROUBLE SHOOTING GUIDE Problem Possible Cause Solution Low quantity of Product Feed water saddle valve is Open valve or unclog. Water from Storage Tank plugged or closed. Clogged sediment pre-filter or Replace filters. activated carbon pre-filter. Low water pressure Feed water pressure must be above 40 psig. - Page 15 Problem Possible Cause Solution High Total Dissolved Feed water pressure must be above Low water pressure. Solids (TDS) in the 40 psig. Product Water R.O. membrane is not fully seated Re-seat the R.O. membrane. in the bottom of the housing. R.O.
-
Page 16: Qcro-50 Parts Breakdown
QCRO-50 Component Parts Breakdown DRAIN SUPPLY... - Page 17 QCRO-50 Component Parts List REF # Part Number Description RO-DW-1 Luxury Long Reach Faucet, Non Air Gap, Chrome 6FC4 Faucet Connector, 3/8" tube x 7/16 UNF thread 4SE4 Stem Elbow, 1/4" tube x 1/4" stem 6SE4 Stem Elbow, 3/8” tube x 1/4” stem IC10Q 2"...
-
Page 18: Qcro-50-Pump Parts Breakdown
QCRO-50-PUMP Component Parts Breakdown... - Page 19 QCRO-50-PUMP Component Parts List REF # Part Number Description RO-DW-1 Luxury Long Reach Faucet, Non Air Gap, Chrome 6FC4 Faucet Connector, 3/8" tube x 7/16 UNF thread 4SE4 Stem Elbow, 1/4" tube x 1/4" stem 6SE4 Stem Elbow, 3/8" tube x 1/4" stem 6SE4/4SST4 Side Stem Tee, 3/8"...
-
Page 20: Sro-100 Parts Breakdown
SRO-100 Component Parts Breakdown... - Page 21 SRO-100 Component Parts List REF # Part Number Description RO-DW-1 Luxury Long Reach Faucet, Non Air Gap, Chrome 6FC4 Faucet Connector, 3/8" tube x 7/16 UNF thread 4SE4 Stem Elbow, 1/4" tube x 1/4" stem 6SE4 Stem Elbow, 3/8" tube x 1/4" stem 6SE4/4SST4 Side Stem Tee, 3/8"...
-
Page 22: Leak Stop Valve - Compressed Pellet Replacement
Leak Stop Valve – Compressed Pellet Replacement 1) Pull the upper cover upward and separate it from the lower body. 2) Remove the expanded pellet from the retainer. 3) Replace the expanded pellet with the spare compressed pellet. 4) Seat the compressed pellet and retainer into the lower body. 5) Push the upper cover down until it snaps securely in place. -
Page 23: Warranty
R.O. DRINKING WATER SYSTEM LIMITED WARRANTY What Does This Warranty Cover? This warranty covers any defects in materials and workmanship of the R.O. Drinking Water System when installed and operated within recommended parameters, with the exceptions stated below. How Long Does The Coverage Last? The manufacturer will warrant its R.O.
