  • Page 1 120 ii kh 150 Two-way active Loudspeaker Instruction manuaL georg neumann gmbh · Leipziger str. 112 · 10117 berLin · germany pubL. 06/22 teL +49 (0)30 / 41 77 24-0 · fax -50 · headoffice@neumann.com · www.neumann.com 592855/a01...
  • Page 2: Table Of Contents

    Contents KH 120 II and KH 150 studio monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Delivery includes .
  • Page 3: Kh 120 Ii And Kh 150 Studio Monitors

    . This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations . The KH 120 II / KH 150 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible .

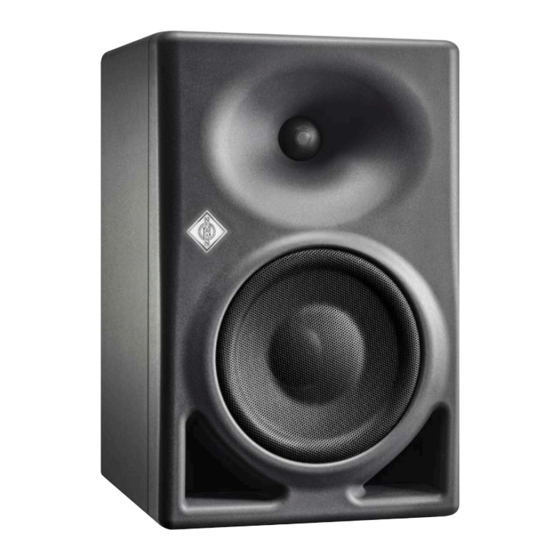

  • Page 4: Product Overview: Kh 120 Ii

    Leipziger Str. Berlin DESIGNED IN GERMANY 最大功耗 MADE IN CZECH REPUBLIC Max. input level Max. Power Consumption 德国设计 捷克共和国制作 electronically balanced ETHERNET CONTROL NETWORK A IEC power socket Bottom B Analog input (XLR-3F) KH 120 II / KH 150 | 4...
  • Page 5: Product Overview: Kh 150

    Leipziger Str. Berlin DESIGNED IN GERMANY 最大功耗 MADE IN CZECH REPUBLIC Max. input level Max. Power Consumption electronically balanced 德国设计 捷克共和国制作 ETHERNET CONTROL NETWORK A IEC power socket Bottom B Analog input (XLR-3F) KH 120 II / KH 150 | 5...
  • Page 6: Setting Up And Connecting The Loudspeaker

    This product has been optimized for use in recording studios . In order to not affect the quality of playback, make sure that the product is used in an EMC (electromagnetically compatible) environment, ideally without electromagnetic radiation from other devices . KH 120 II / KH 150 | 6...
  • Page 7: Positioning The Loudspeakers

    • Recommended listening distance for KH 120 II: 1 .0 m – 2 .0 m • Min ./max . listening distance for KH 120 II: 0 .75 m – 4 .0 m • Recommended listening distance for KH 150: 1 .0 m – 2 .5 m •...
  • Page 8: Connecting Audio Signals

    Use the following wiring if you want to make your own RCA-to-XLR cable: loudspeaker long symmetrical short adapter XLR cable stereo source XLR-M XLR-F XLR-M XLR-F loudspeaker stereo source long adapter cable XLR-M XLR-F KH 120 II / KH 150 | 8...
  • Page 9 MADE IN CZECH REPUBLIC Max. input level Max. Power Consumption MADE IN CZECH REPUBLIC Max. input level 德国设计 捷克共和国制作 electronically balanced 德国设计 捷克共和国制作 electronically balanced S/PDIF ETHERNET ETHERNET CONTROL NETWORK CONTROL NETWORK KH 120 II / KH 150 | 9...
  • Page 10: Connecting Network Cables

    Connect the wall plug on the power cable to a suitable wall outlet . To completely disconnect the loudspeaker from the power supply system: Set the on/off switch to “O” . Pull the wall plug out of the wall outlet . KH 120 II / KH 150 | 10...
  • Page 11: Configuring And Using The Loudspeaker

    There is a five second delay before sound can be heard from the loudspeaker in order to avoid noises (pops) from preceding equipment switched on at the same time . Con- versely, switching off the loudspeaker immediately mutes the audio . KH 120 II / KH 150 | 11...
  • Page 12: Functionality Of The Neumann Logo

    Other protection system is activated (takes priority over other indications) Calibration with the MA 1 – Automatic Monitor Align- ment software Identifying the loudspeaker Flashing pink (2 Hz) Loudspeaker is selected Solid white KH 120 II / KH 150 | 12...
  • Page 13: Switches On The Settings Panel

    S/PDIF R Digital subframe B, RCA socket DIGITAL S/PDIF INPUT is active MONO Digital subframe A is added to digital subframe B with 4 .5 dB damping, RCA socket DIGITAL S/PDIF INPUT is active KH 120 II / KH 150 | 13...
  • Page 14: Resetting The Loudspeaker Settings

    . If a firmware update is required, you will be notified . Follow the instructions shown on screen . It takes approximately 10 seconds per loudspeaker to do the update . KH 120 II / KH 150 | 14...
  • Page 15 Near a small desktop or small reflecting — -2 dB — surface* Near a large desktop or large reflecting — -4 dB — surface* *Use these settings in addition to one of the top settings . KH 120 II / KH 150 | 15...
  • Page 16: Adjusting The Acoustical Level

    If your signal source is not used as a reference for the listening level, make sure that the level of the source is higher and the level on the loudspeakers is lower . This reduces the self-noise from the source and any extraneous signals in the input line . KH 120 II / KH 150 | 16...
  • Page 17: Configuring Standby Mode

    S/PDIF R Ground Network MONO You can disable automatic standby mode using the MA 1 – Automatic Monitor Alignment soft- * INPUT SELECT GROUND LIFT CONTROL ware . * INPUT GAIN SETTINGS KH 120 II / KH 150 | 17...
  • Page 18: Customizing Standby Behavior

    . Make sure that there are no peaks coming from the source or induced in the cable that can wake up the loudspeaker . KH 120 II / KH 150 | 18...
  • Page 19 RCA line output from a television (if the output level is adjustable) or RCA output (pre-amp) from an AV receiver. One cable is required per speaker: Loudspeaker (XLR-M) Source (RCA) Unbalanced RCA to balanced XLR connections KH 120 II / KH 150 | 19...
  • Page 20: Cleaning And Maintaining The Loudspeaker

    – see “Customizing standby behavior” on noise in the source . page 18 . For further information, please refer to the “Questions & Answers” section on the product page at www .neumann . com . KH 120 II / KH 150 | 20...
  • Page 21: Specifications

    Omnimount/VESA adapter LH 65 Table stand for KH 120 II LH 66 Table stand for KH 150 For a full list of mounting accessories, see the Mounting Matrix at www .neumann .com . KH 120 II / KH 150 | 21...
