Summary of Contents for Neumann.Berlin KH 80 DSP

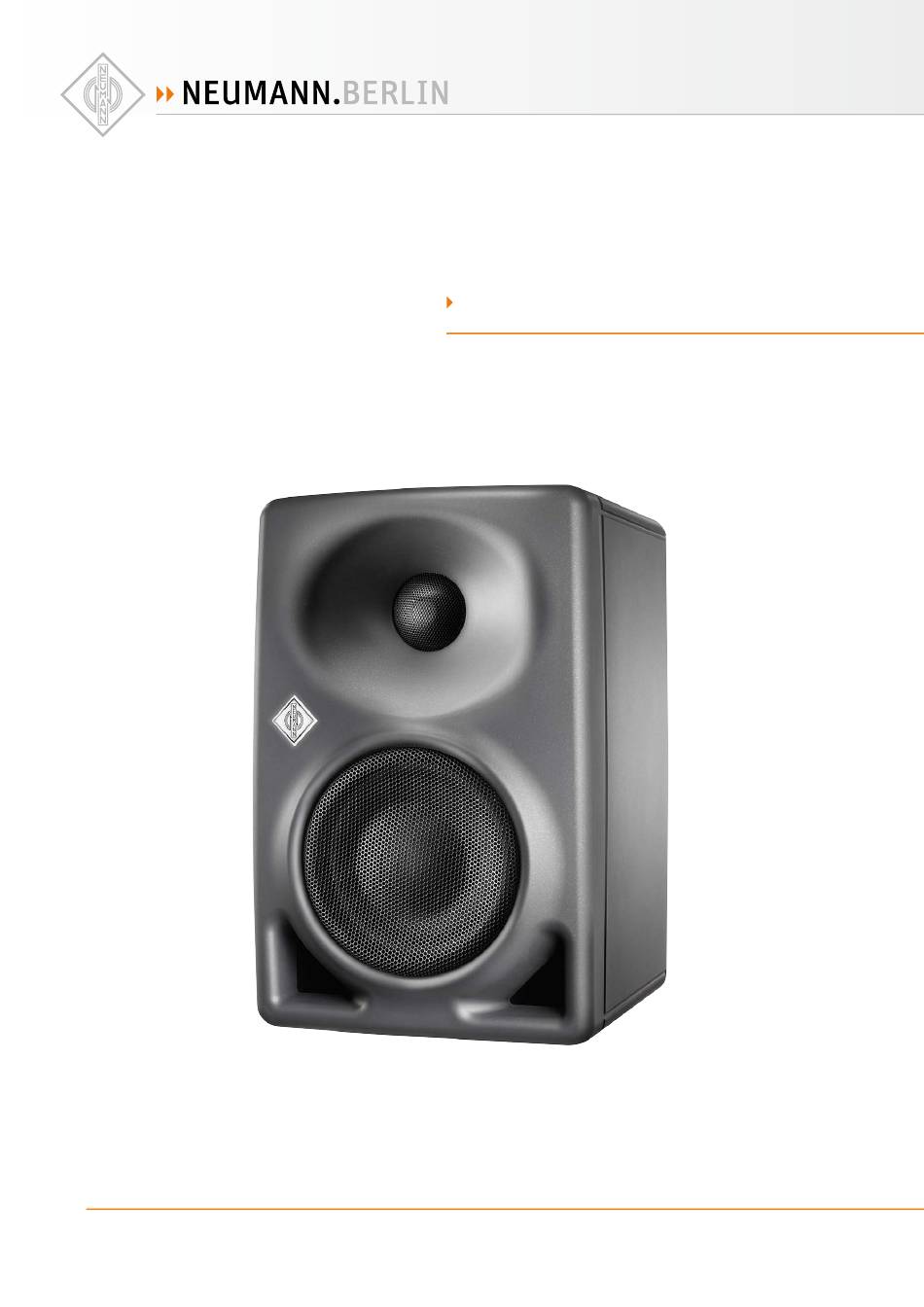

- Page 1 KH 80 DSP Instruction ManuaL georg neumann gmbh · Leipziger str. 112 · 10117 berLin · germany pubL. 11/21 teL +49 (0)30 / 41 77 24-0 · fax -50 · headoffice@neumann.com · www.neumann.com...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Installing and connecting the KH 80 DSP . -
Page 3: The Kh 80 Dsp Studio Monitor
About this manual This operating manual describes the physical setup and autonomous operation of the KH 80 DSP . For information about using the KH 80 DSP in a network with the Neumann .Control iPad® App please refer to the app . -
Page 4: Product Overview
2 Bass reflex ports Back panel 3 Threaded inserts (M6) for Neumann mounting hardware 4 On/off switch 5 RJ-45 socket for network control 6 Cooling vents 7 Control switches 8 Mains socket Bottom 9 XLR/Jack analog input socket KH 80 DSP | 4... -
Page 5: Installing And Connecting The Kh 80 Dsp
Installing and connecting the KH 80 DSP CAUTION Danger of injury and material damage due to tipping/dropping of the product! If improperly mounted, the product and/or the mounting hardware (e .g . rack) can tip over or drop down . -
Page 6: Positioning The Loudspeakers
ITU-R BS .2051-0 for loudspeaker positioning . The acoustical axis of the KH 80 DSP is located at the midpoint of the bass and tweeter drivers . Always point the acoustical axis, in the horizontal and vertical planes, towards the listening x = 7.7 cm... -
Page 7: Connecting Audio Signals
. Connecting analog signals to the KH 80 DSP Connecting Only connect analog signals to the KH 80 DSP . XLR, Jack or Connect the left and right output of your analog audio source to the XLR input sockets of RCA cables the respective loudspeaker . -
Page 8: Connecting Network Cables
Connecting/disconnecting the KH 80 DSP to/from the mains power supply To connect the KH 80 DSP to the mains power supply: Make sure that the on/off switch is set to “OFF” . Connect the figure-8 connector of the supplied mains cable to the mains socket . -
Page 9: Configuring And Using The Kh 80 Dsp
Configuring and using the KH 80 DSP Switching the KH 80 DSP on/off On/O Set the on/off switch to: • “ON” to switch on the loudspeaker . The Neumann logo lights up solid red while the DSP system boots up . After approximately 5 seconds it turns white indicating the loud- speaker is ready to be used . -
Page 10: Functionality Of The Neumann Logo
Protection system is activated (takes priority over other indications) Neumann.Control Alignment Setup: Identify the loudspeaker Rosé pulses (2 Hz) + audible ID tone Guided Alignment: Loudspeaker is selected Rosé pulses (0 .5 Hz) Manual Alignment: Loudspeaker is selected Solid rosé KH 80 DSP | 10... -
Page 11: Settings Switch
13 . CONTROL If the SETTINGS switch has been set to one of the two LOCAL CONTROL positions, the KH 80 DSP will not react to network commands . Control of the loudspeaker will be from the backplate only . -
Page 12: Adjusting The Frequency Response Using The Backpanel Controls
. Examples of sound pressure levels as a function of the input and output level of the KH 80 DSP: Input signal (0 .775 V) -
Page 13: Configuring Standby
Adjusting standby behaviour Standby is too sensitive When standby is too sensitive, the KH 80 DSP does not switch to standby when it is supposed to or it wakes up from standby when it is not supposed to . Possible reasons: The source might have some noise or spikes which wake up the loudspeaker or prevent it from switching to standby . - Page 14 The standby threshold level is above the signal level . When the input and output levels of the KH 80 DSP are set very low but the source has a very high level, this leads to a very low audible output signal .
-
Page 15: Cleaning And Maintaining The Kh 80 Dsp
For further information, please refer to the “Questions & Answers” section on the product page at www .neumann .com . Specifications For a complete list of the product spefications please refer to the product page of the KH 80 DSP at www .neumann .com . Product properties... -
Page 16: Acoustical Measurements And Block Diagram
Acoustical measurements and block diagram Additional technical data such as acoustical measurements and a block diagram can be found on the product page of the KH 80 DSP at www .neumann .com . Accessories Product Description LH 28 Tripod stand adapter... -
Page 17: Installation Angles
Installation angles KH 80 DSP | 17...
