- Page 1 150 aes67 Two-way active Loudspeaker Instruction manuaL georg neumann gmbh · Leipziger str. 112 · 10117 berLin · germany pubL. 06/22 teL +49 (0)30 / 41 77 24-0 · fax -50 · headoffice@neumann.com · www.neumann.com 592888/a01...
-
Page 2: Table Of Contents
Contents The KH 150 AES67 studio monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Delivery includes . -

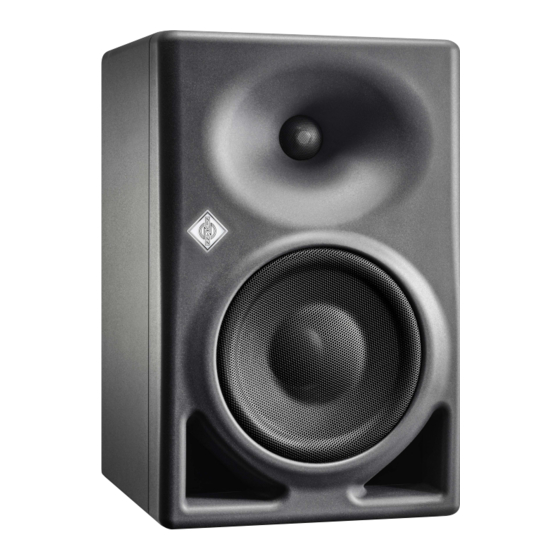

Page 3: The Kh 150 Aes67 Studio Monitor
. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations . The KH 150 AES67 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accu- rate sound reproduction possible . -
Page 4: Product Overview
DESIGNED IN GERMANY 最大功耗 MADE IN CZECH REPUBLIC Max. input level Max. Power Consumption 德国设计 捷克共和国制作 electronically balanced SECONDARY 0 Control switches ETHERNET AES67 AUDIO AND CONTROL NETWORK A IEC power socket Bottom B Analog input (XLR-3F) KH 150 AES67 | 4... -
Page 5: Setting Up And Connecting The Loudspeaker
This product has been optimized for use in recording studios . In order to not affect the quality of playback, make sure that the product is used in an EMC (electromagnetically compatible) environment, ideally without electromagnetic radiation from other devices . KH 150 AES67 | 5... -
Page 6: Positioning The Loudspeakers
Position the loudspeaker so that there is a direct line of sight from the listening position to the bass and tweeter drivers . Make sure that the ports are not blocked or partially covered . Keep sharp edges away from the port outlets, as they can cause air noise . KH 150 AES67 | 6... -
Page 7: Connecting Audio Signals
Use this adapter directly at the source and connect the adapter via a properly wired bal- anced XLR cable to the loudspeaker . The connection of pin 3 to ground should be as close as possible to the source to maximize hum rejection on the cable . KH 150 AES67 | 7... - Page 8 Set the INPUT SELECT switch on the left loudspeaker to S/PDIF L and the INPUT SELECT switch on the right loudspeaker to S/PDIF R . The CONTROL switch must be in the Local position . KH 150 AES67 | 8...
-
Page 9: Connecting A Network Cable For Network Control
This device supports Sennheiser Sound Control (SSC) based on TCP and IPv6 . The static IPv6 address of the device can be determined with mDNS . For more information about SSC, see the Sennheiser website . KH 150 AES67 | 9... -
Page 10: Connecting/Disconnecting The Loudspeaker To/From The Power Supply System
AES67 position) . This suppresses any noise that would be generated by con- nected devices that are switched on at the same time . Conversely, switching off the loudspeaker immediately mutes the audio . KH 150 AES67 | 10... -
Page 11: Functionality Of The Neumann Logo
Other protection system is activated (takes priority over other indications) Calibration with the MA 1 – Automatic Monitor Align- ment software Identifying the loudspeaker Flashing pink (2 Hz) Loudspeaker is selected Solid white KH 150 AES67 | 11... -
Page 12: Switches On The Settings Panel
S/PDIF L Digital subframe A, RCA socket DIGITAL S/PDIF INPUT is active S/PDIF R Digital subframe B, RCA socket DIGITAL S/PDIF INPUT is active AES67 AES67 audio network stream, RJ-45 sockets PRIMARY and SECONDARY are active KH 150 AES67 | 12... -
Page 13: Resetting The Loudspeaker Settings
. If a firmware update is required, you will be notified . Follow the instructions shown on screen . It takes approximately 10 seconds per loudspeaker to update the loudspeaker firmware . The AES67 firmware update may take up to 30 minutes . KH 150 AES67 | 13... - Page 14 Near a small desktop or small reflecting — -2 dB — surface* Near a large desktop or large reflecting — -4 dB — surface* *Use these settings in addition to one of the top settings . KH 150 AES67 | 14...
-
Page 15: Adjusting The Acoustical Level
If your signal source is not used as a reference for the listening level, make sure that the level of the source is higher and the level on the loudspeakers is lower . This reduces the self-noise from the source and any extraneous signals in the input line . KH 150 AES67 | 15... -
Page 16: Configuring Standby Mode
Set the CONTROL switch to Network . S/PDIF R Ground Network You can disable automatic standby mode using the MA 1 – Automatic Monitor Alignment soft- * INPUT SELECT GROUND LIFT CONTROL ware . * INPUT GAIN SETTINGS KH 150 AES67 | 16... -
Page 17: Customizing Standby Behavior
. Make sure that there are no peaks coming from the source or induced in the cable that can wake up the loudspeaker . KH 150 AES67 | 17... - Page 18 RCA line output from a television (if the output level is adjustable) or RCA output (pre-amp) from an AV receiver. One cable is required per speaker: Loudspeaker (XLR-M) Source (RCA) Unbalanced RCA to balanced XLR connections KH 150 AES67 | 18...
-
Page 19: Configuring Aes67 Network And Audio Settings
S/PDIF L Local S/PDIF R Ground Network For more information on selecting the audio input signals, refer to the chapter “INPUT SELECT” on page 12 . * INPUT SELECT GROUND LIFT CONTROL * INPUT GAIN SETTINGS KH 150 AES67 | 19... -
Page 20: Setting Up The Aes67 Network Interface
The factory default is: 192 .168 .20 .100 Mask: 255 .255 .255 .0 NOTE: ensure that these three IP addresses are not in the same subnet as any of the other two IP addresses . KH 150 AES67 | 20... - Page 21 PTP profile . AES67 IP CONFIG Overview and configuration of the active IP addresses, subnet masks and control gateway . AES67 CONFIG Overview and configuration of network modes and connection management settings . KH 150 AES67 | 21...
- Page 22 . The IP address configuration screen will be displayed . To set up IP addresses for non-redundant operation (switched mode): Click on the first line (eth0) of the IP address page . KH 150 AES67 | 22...
- Page 23 The AES67 configuration screen will be displayed . Settings Select the desired redundancy mode from the dropdown menu in the tab on the left . The default redundancy mode is non-redundant . Click Update Redun Mode to save your changes . KH 150 AES67 | 23...
-
Page 24: Setting Up The Ptp Media Clock
PTP profile for AES67 audio-only networks IEEE1588v2:Default PTP profile used for time-sensitive networks such as streaming applications SMPTE:2059-2 PTP profile for ST 2110 video and audio networks We recommend using the AES67:Media Profile (factory default) for audio-only networks . KH 150 AES67 | 24... - Page 25 Configuration . Rebooting the subwoofer After setting up the PTP media clock, the loudspeaker needs to be rebooted before performing any further configuration . Navigate to the AES67 CONFIG menu item . Click Reboot Device . KH 150 AES67 | 25...
-
Page 26: Setting Up The Connection Management Mode
It is possible to define one of the three network ports as the gateway for NMOS control (RDS) in larger networks . AES67 IP CONFIG Navigate to the menu item . Define the gateway for the desired port . Click Apply . KH 150 AES67 | 26... - Page 27 Rebooting the loudspeaker After setting up the ANEMAN connection management mode, the loudspeaker needs to be rebooted before performing any further configuration . AES67 CONFIG Navigate to the menu item . Click Reboot Device . KH 150 AES67 | 27...
-
Page 28: Routing Digital Aes67 Audio Signals To The Loudspeaker
• 1 PC with two network ports • 2 Cisco SG300-08 network switches • 1 Merging Technologies Anubis Pro monitor controller • 1 KH 750 AES67 – connected to both networks • 2 KH 150 AES67 – connected to both networks KH 150 AES67 | 28... - Page 29 In the matrix, click on the green cross point in the top left corner . This will un-route all channels of the AES67 stream from the internal DSP . The audio will stop playing . KH 150 AES67 | 29...
- Page 30 Click on the trash can icon on the right of the list to remove the connection . This will un-route all channels of the AES67 stream from the internal DSP . The audio will stop playing . The entry in the table will be removed . KH 150 AES67 | 30...
- Page 31 Click on the trash can icon on the right of the list to remove the connection . This will un-route all channels of the AES67 stream from the internal DSP . The audio will stop playing . The entry in the table will be removed . KH 150 AES67 | 31...
- Page 32 . Click on the cross points . Click Remove multicast in the top left corner of the matrix . ANEMAN will send the commands to remove the loudspeaker . The audio will stop playing . KH 150 AES67 | 32...
-
Page 33: Compatibility With Dante® Aes67 Audio Streams
. Leave the Link Offset box as it is . Click Update Destination . This will route all channels of the DANTE® AES67 stream to the internal DSP . KH 150 AES67 | 33... - Page 34 Click on the trash can icon on the right of the list to remove the connection . This will un-route all channels of the DANTE® AES67 stream from the internal DSP . The audio will stop playing . The entry in the table will be removed . KH 150 AES67 | 34...
-
Page 35: Cleaning And Maintaining The Loudspeaker
– see “Customizing standby behavior” on noise in the source . page 17 . For further information, please refer to the “Questions & Answers” section on the product page at www .neumann . com . KH 150 AES67 | 35... -
Page 36: Specifications
LH 48 Tripod adapter plate LH 61 Adjustable L-bracket LH 64 Omnimount/VESA adapter LH 66 Table stand for KH 150 For a full list of mounting accessories, see the Mounting Matrix at www .neumann .com . KH 150 AES67 | 36... -
