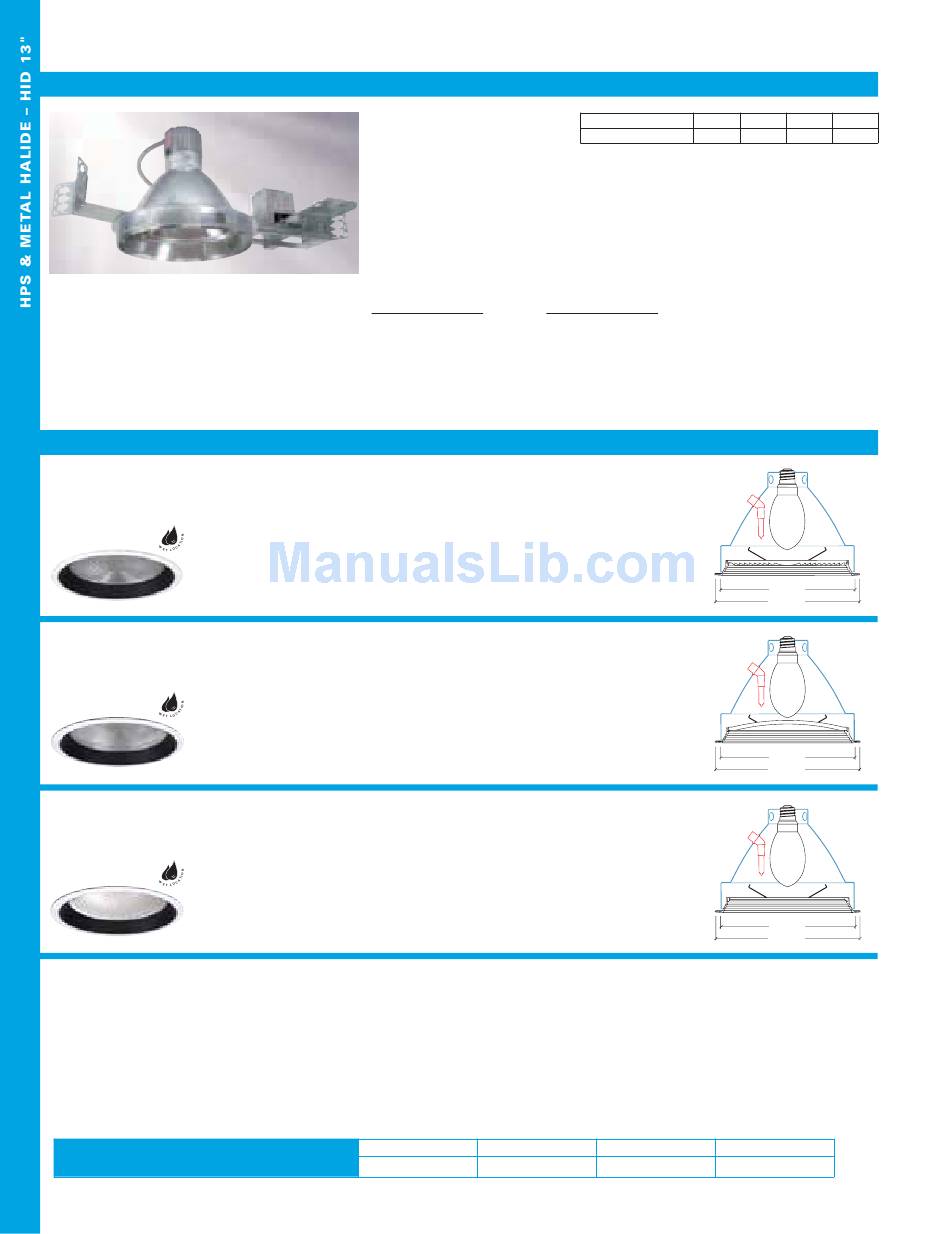

Cooper Lighting Portfolio M6235T Specification Sheet

PORTFOLIO
HOUSING
13"
M6235T, 36T
M6254T, 55T
HOUSING
M6235T=175W Metal Halide
Mogul Base
M6236T=250W Metal Halide
Mogul Base
M6254T=100W HPS Mogul Base
M6255T=150W HPS Mogul Base
TRIM
Regressed
Fresnel Lens
250W Max ED28 MH
150W Max ED23.5 HPS
Concave
Prismatic Lens
250W Max ED28 MH
150W Max ED23.5 HPS
Regressed
Prismatic Lens
250W Max ED28 MH
150W Max ED23.5 HPS
Ordering Example
Housing, Ballast, Trim, Accessories and Lamps ordered as separate line items.
892
COOPER LIGHTING
™
13" Downlight
Metal Halide & HPS
ED23.5
ED28
Wide beam lens downlight for general lighting from a single
vertically mounted ED23.5 high-pressure sodium lamp. Optional
quartz standby lamp is factory installed to upper reflector. Magnetic
ballast ordered separately installs rapidly to ballast bridge with
electrical quick connects.
OPTIONS BALLAST
Q=Quartz Restrike System with M6254T and M6255T only
Time Delay, 100W DC Bayonet 640=100W HPS 120/277V Magnetic
Base Quartz Lamp (Included) 648=100W HPS 120/347V Magnetic
X=DC Bayonet Lamp Socket only 650=150W HPS 120/277V Magnetic
for Quartz Standby Lamp 658=150W HPS 120/347V Magnetic
TRIM
10202=Regressed Fresnel
TRIM
10212=Regressed Concave
Prismatic Lens
TRIM
10222=Regressed Prismatic
Lens
M6235T and M6236T only
750=175W MH 120/277V Magnetic
758=175W MH 120/347V Magnetic
760=250W MH 120/277V Magnetic
768=250W MH 120/347V Magnetic
FINISH
P=Black Baffle with White Metal Trim Ring
PWH=White Baffle with White Trim Ring
FINISH
P=Black Baffle with White Metal Trim Ring
PWH=White Baffle with White Trim Ring
FINISH
P=Black Baffle with White Metal Trim Ring
PWH=White Baffle with White Trim Ring
Housing Ballast
M6235T 750
Dimensions Length Width
Standard Housing 33-3/16" 19-5/16"
ACCESSORIES
HB26=C Channel Bar Hanger,
26" Long, Pair
HB50=C Channel Bar Hanger,
50" Long, Pair
FK – =Field Installed Fuse Kit,
Specify Amperage
Trim Accessories
10202 HB26
Height Cutout
15" 13-7/8"
13-1/8"
14-1/2"
13-1/8"
14-1/2"
13-1/8"
14-1/2"
