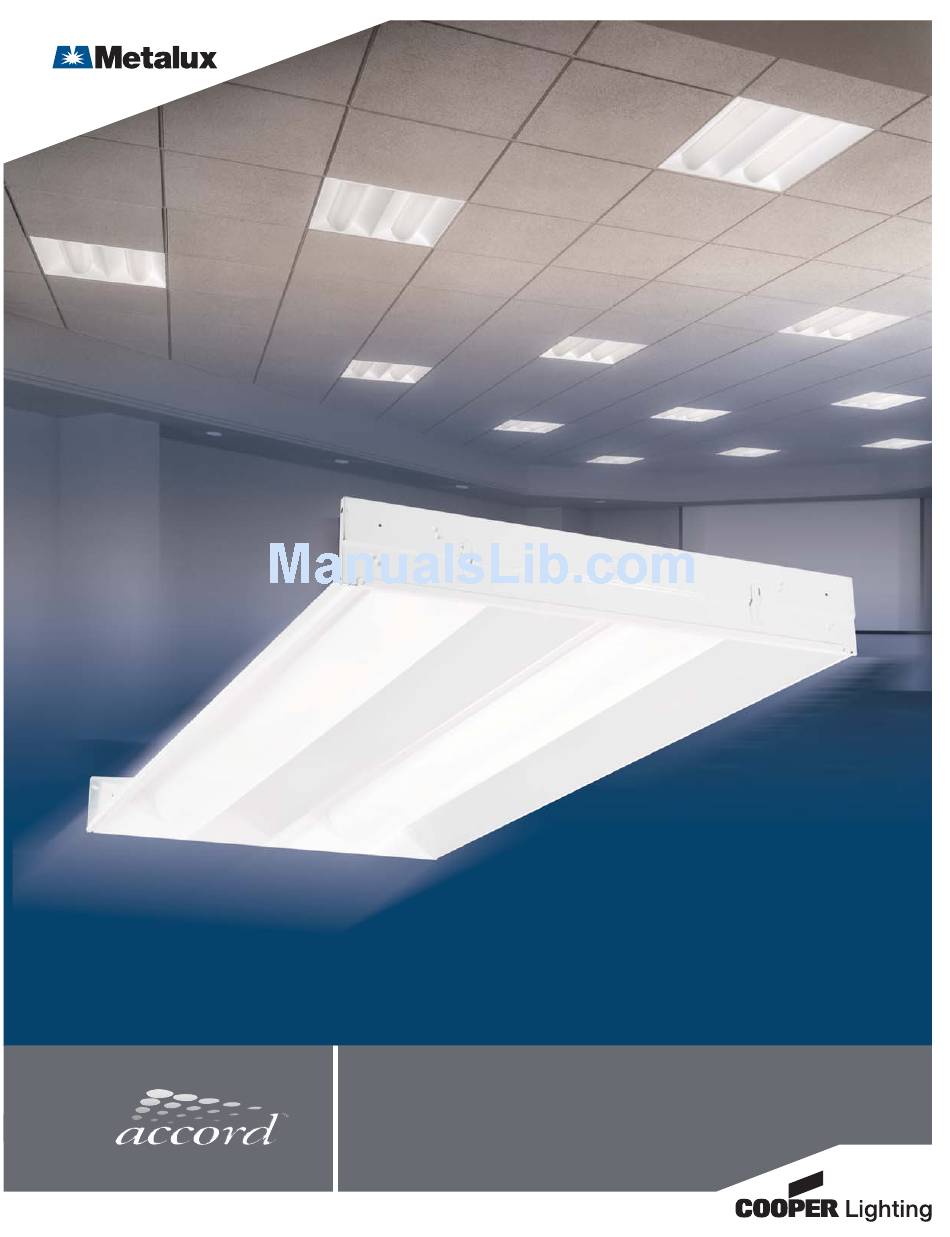

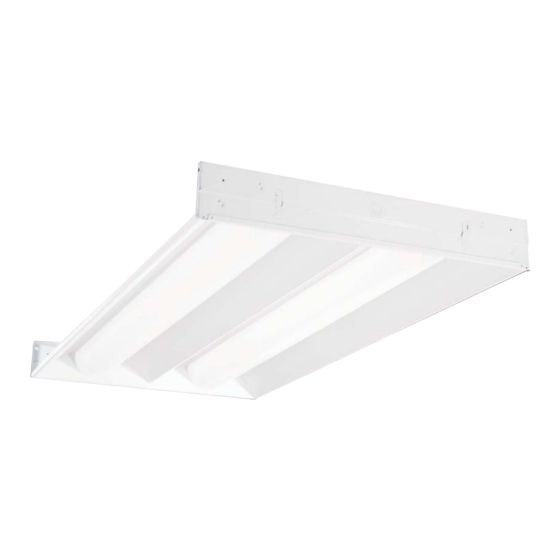

- Page 1 Accord Series T5/T8 Enhanced Lighting System...
- Page 2 I n t r o d u c t i o n Improve your lighting The standard for recessed lighting – Cooper Lighting’s accord is the energy efficient T5 or T8 solution to better lighting. The accord redefines lighting by improving on aesthetics, comfort and energy savings.
- Page 3 Improve visual perception • The accord evenly distributes light, making the space more pleasing to the eye. • Dark spots (cave effect) associated with parabolics are eliminated. Attractive design • Smooth, curved surfaces are attractive but subtle. • Soft white frosted acrylic lens fills the space with even illumination. •...
- Page 4 These areas of minimum light are referred to as “dark spots”. lighting with accord To eliminate the “dark spots” and sharp cutoffs created by parabolics, Cooper Lighting designed accord provides a feeling of spaciousness and does not substantially increase glare, as shown in Figure 2.
- Page 5 Figure 1. Parabolic Light Distribution 85˚ SHIELDED 75˚ ZONE 65˚ 55˚ CUT-OFF ZONE Figure 2. accord Light Distribution MINIMIZED SHIELDED ZONE 85˚ 75˚ 65˚ ENHANCED 55˚ CUT-OFF ZONE Improved visual perception By reducing the “dark spots” and evenly distributing light, accord makes it softer on the eyes.
-
Page 6: Ac Cord
P r o d u c t C o m p a r i s o n accord maximizes savings Choose either T5 or T8 technology to best meet your lighting needs. With a multitude of lamp and ballast combinations, the accord can deliver the perfect amount of light with a maximum energy savings. - Page 7 Troffer accord 4 Lamp 2 Lamp, T8 Typical 4 lamp troffer accord (4) 32W T8 lamps, 12 fixtures (2) 32W T8 lamps, 12 fixtures electronic ballast (.87 ballast factor) electronic ballast (1.20 ballast factor) 122 watts per fixture 77 watts per fixture Based on: Room Size: 50' x 30' Ceiling Height: 10'...
-
Page 8: Energy Savings
E n e r g y S a v i n g s Save energy costs Appearance and performance make accord Energy savings makes accord a sound financial decision. The accord family of products saves up to 40% energy costs when compared to a standard 3 lamp,18 cell parabolic. - Page 9 The following example illustrates accord’s Spacing: 10' x 10' Maintained Average Illuminance: 49 fc Based on: Room Size: 60' x 80' Ceiling Height: 10' Work Plane: 2.5' Reflectances: 80/50/20 Hours of Operation $0.06 Per Day Per Year 4L T8 3L T8 12 hrs.
- Page 10 L a t e s t A d d i t i o n s Surface Mount available Low profile and quality performance – the surface accord Designed for areas without a grid-ceiling type system, the accord’s Sleek yet durable – constructed and formed from heavy gauge C.R.S. then painted after fabrication with a matte white polyester powder enamel finish.
- Page 11 Aesthetically Improved Design Precision engineered, accord’s smooth frosted acrylic diffuser provides higher optical efficiencies and visual comfort without the need of a diffusing film that can get lost or discolor over time. The smooth frosted diffuser provides improved lumen output while reducing the “shadowing effect”...
- Page 12 S p e c i f i c a t i o n s accord - 1' x 4', T5 AC-128T5 Electronic Ballast (1) F28T5/835 Lamp 2600 Lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.4 x mounting height Efficiency 87 .4% Test Report: 241P113 Input Watts: 34...
- Page 13 accord - 2' x 2', T5 C a n d l e p o w e r 2AC-214T5 Electronic Ballast Angle (2) F14T5/835 Lamps 1350 Lumens Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.4 x mounting height Efficiency 89.4% Test Report: 2AC-214T5.IES Input Watts: 30 LER=FL77 LPW...
- Page 14 S=Surface (2' x 2', 2' x 4' only) Step Dimming Ballast available for 14WT5 and 28WT5 lamps only. binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information. T8 Ordering Information...
- Page 15 Simple Maintenance • The ballast is accessible from below through the removable ballast cover. (no tools are required) • For drywall ceilings, standard framing kit is available. (shipped separately for field installation). • Lamp maintenance is as simple as removing the refractors. •...
- Page 16 Ontario, California Peachtree City, Georgia Cooper Lighting and Metalux logos are valuable trademarks of Cooper Industries in the United States and other countries. You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.
