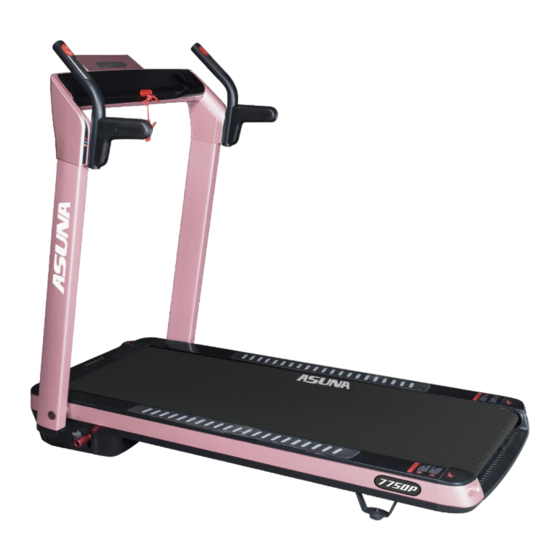

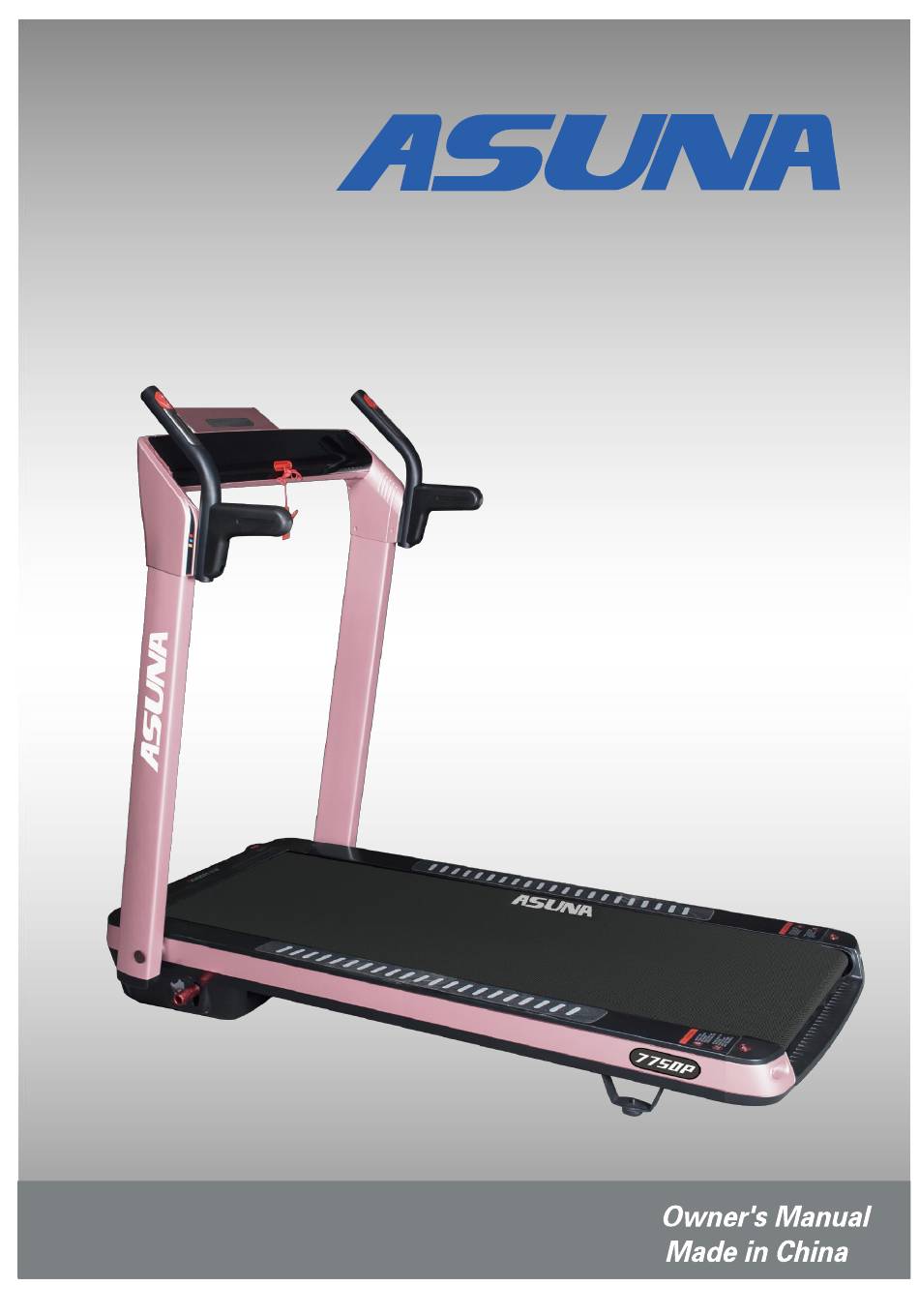

- Page 1 ASUNA 7750P PINK SPACEFLEX MOTORIZED TREADMILL...
-
Page 2: Table Of Contents
INDEX IMPORTANT SAFETY INFORMATION………………………………………………………… EXPLODED DIAGRAM……………………………………………………………………… PARTS LIST……………………………………………………………………………………………. TOOLS & HARDWARE…………………………………………………………………….… ASSEMBLY INSTRUCTIONS………………………………………………………………..LUBRICATION……………………………………………………………………………………..….. FOLDING INSTRUCTIONS……………………………………………………..……………..… MOVING INSTRUCTIONS……………………………………………………………………..… SPECIFICATIONS……………………………………………………………………………..…. IMPORTANT ELECTRICAL INFORMATION…………………………………………… OPERATING INSTRUCTIONS……………………………………………………………….…. DISPLAY METER……………………………………………………………………………..16-21 MAINTENANCE GUIDELINES…………………………………………………………………. ATTENTION: Please verify that all parts associated with this product are in good condition and accounted for. During the assembly process, please be sure to follow each step accordingly as it has been explained within this manual. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 4: Exploded Diagram 1
Exploded Diagram 1... - Page 5 Exploded Diagram 2...
-
Page 6: Parts List
Parts List DESCRIPTION SPEC. DESCRIPTION SPEC. Main Frame Running Board Incline Bracket Running Belt Handlebar Multi-groove Belt Tablet Bracket Ring Wire Plug Meter Bracket Motor Seat Horizontal Tube Loudspeaker Rear End Cap Fixed Seat Tablet Bracket Motor Under Fixed Seat Cover Motor Upper Adjusting Sheet... - Page 7 DESCRIPTION SPEC. DESCRIPTION SPEC. Safety Key Seat C-shape Φ10 Snap Ring Upright Stopper Loudspeaker Light Screw M8*15 Shade M6*12 Flat Washer Φ9*Φ23*T1.5 Screw nickel-chrome Light Transmitting M6*15 half-thread Screw Plate nickel-chrome Handlebar Stopper Screw M6*50 Module Fixer Screw M6*60 Silicone Oil Screw M8*12 M10*45 10.9 grade...
- Page 8 DESCRIPTION SPEC. DESCRIPTION SPEC. Running Board BT2.2*5 Screw Baffle nickel-plating Speed Shortcut Power Cord Key Seat Pad Decorating End Socket Light Loudspeaker Power Switch Decorating Light Incline Shortcut Overload Protector Key PC Speed Shortcut DC Motor Key PC Pulse Outgoing Incline Motor Line Shortcut Key...
-
Page 9: Tools & Hardware
Tools & Hardware When you open the carton, you will find the below spare parts. #20 Allen Wrench 1 PC #103 MP3 Line 1 PC #75 Screw M6*12 4 PCS #96 Power Cord 1 PC #55 Silicone Oil 1 PC #114 Handrail 2 PCS #128 Safety Key 1 PC... -
Page 10: Assembly Instructions
Assembly Instructions STEP 1: Hold the Handlebars (No. 3L & No. 3R). Press the Foot Lever (No. 115) until you hear a click, then raise the Handlebars (No. 3L & No. 3R) to a vertical position until you hear a click. Lightly shake the Handlebars (No. - Page 11 STEP 3: Remove 4 Plugs (No. 137) from the Handlebars (No. 3L & No. 3R). Save the Plugs (No. 137) for later use when you remove the Handrails (No. 114). Attach the Handrails (No. 114) to the Handlebars (No. 3L & No. 3R) with 4 Screws (No.
-
Page 12: Lubrication
Lubrication *IMPORTANT NOTE: This treadmill does come pre-lubricated, but it is recommended to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. 24) and Running Belt (No. 25) is essential as the friction affects the life span and operation of the treadmill. -
Page 13: Folding Instructions
Folding Instructions Before you fold the treadmill, remove the 4 Screws (No. 75) and the 2 Handrails (No. 114) using the Allen Wrench (No. 20). If you saved the Plugs (No. 137), you can plug in the holes. Stand in front of the treadmill. Fold the Tablet Bracket (No. -
Page 14: Moving Instructions
Moving Instructions Before moving the treadmill, fold the treadmill first. Pull out the Supporting Transportation Wheels (No. 36) according to the drawing, to ensure the folded treadmill is stable when standing upright. To store the treadmill upright, lift the treadmill so it stands vertically. To move the treadmill, tilt the treadmill towards you until the Transportation Wheels (No. -
Page 15: Specifications
Specifications Assembly Size Speed Range 0.6—8.0 57.3(L)*29.3(W)*48(H) (INCHES) (MI/H) Folded Standing Size Rating 930W 29.3(L)*10.4(W)*57.3(H) (INCHES) Running Size Motor Spec 51.2(L)*19(W) 2.5HP(PEAK) (INCHES) (HP) N.W. (LBS) Input Volt (V) 126.7 100-120V Max User Weight Operating 0-82°F (LBS) Temperature Incline 0-12% Blue Single Display Speed, Time, Distance, Calorie, Pulse, Incline, Step Count... -
Page 16: Important Electrical Information
Important Electrical Information WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety as well as the safety of others, please verify that the power source is correct before powering in the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user. -
Page 17: Operating Instructions
Operating Instructions 1. Plug the power cord into an outlet with appropriate voltage. 2. Turn on the power switch. 3. Insert the Safety Key (No. 128). 4. Press the Start key on the meter. Never start the treadmill while you are standing on the Running Belt (No. 25). After connecting the power, there may be a pause after the Running Belt (No. -
Page 18: Display Meter
Display Meter Windows Display: Incline: Displays current incline value. Pulse/ Calorie: Displays current pulse value and the calories burned. Time/ Program: Displays current exercise time and the current program. Distance/ Mode: Displays current exercise distance and current mode. Pedometer: Displays current steps value. Number of steps and number of turns will display alternately when number of steps is over 10,000;... - Page 19 Instant Start: a. Turn on the power. Insert the Safety Key (No. 128) in the meter. b. Press Start, system enters into 3 seconds countdown and the treadmill makes a beeping sound. Time/ Program window displays the countdown numbers at the same time. After the 3 seconds countdown, the treadmill starts at 0.6 MI/H speed.
- Page 20 Manual Mode: a. In standby mode, press Start, and the treadmill starts at 0.6 MI/H speed and 0% incline. b. In standby mode, press Mode, to enter time countdown mode. Time/ Program window displays “30:00” and flashes and the time icon will light up. Press the handrail buttons on either side to set exercise time: setting range is: 5:00-99:00.
- Page 21 TIME PROGRAM speed incline speed incline speed incline speed incline speed incline speed incline speed incline speed incline User Customized Program Beside from 8 built-in programs, there are also 3 user customized programs that allow users to set according to personal preferences: U1, U2, U3. a.
- Page 22 Audio: When the power is on, you can connect the MP3 wire to audio device to play music. When the treadmill powers down and enters sleep mode, the music will stop. Pressing any button will reactivate the treadmill. USB Interface: USB connection can only charge your device.
- Page 23 Treadmill Error Codes: treadmill displays error code, please contact Customer Service support@sunnyhealthfitness.com. Er1: Display panel couldn’t receive the signal. Er3: Over voltage. Er4: IGBT short circuit (Over current). Er5: Over load. Er6: The motor is not connected, (only direct current). Er7: The controller couldn’t receive the signal.
-
Page 24: Maintenance Guidelines
Maintenance Guidelines General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 25) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.
