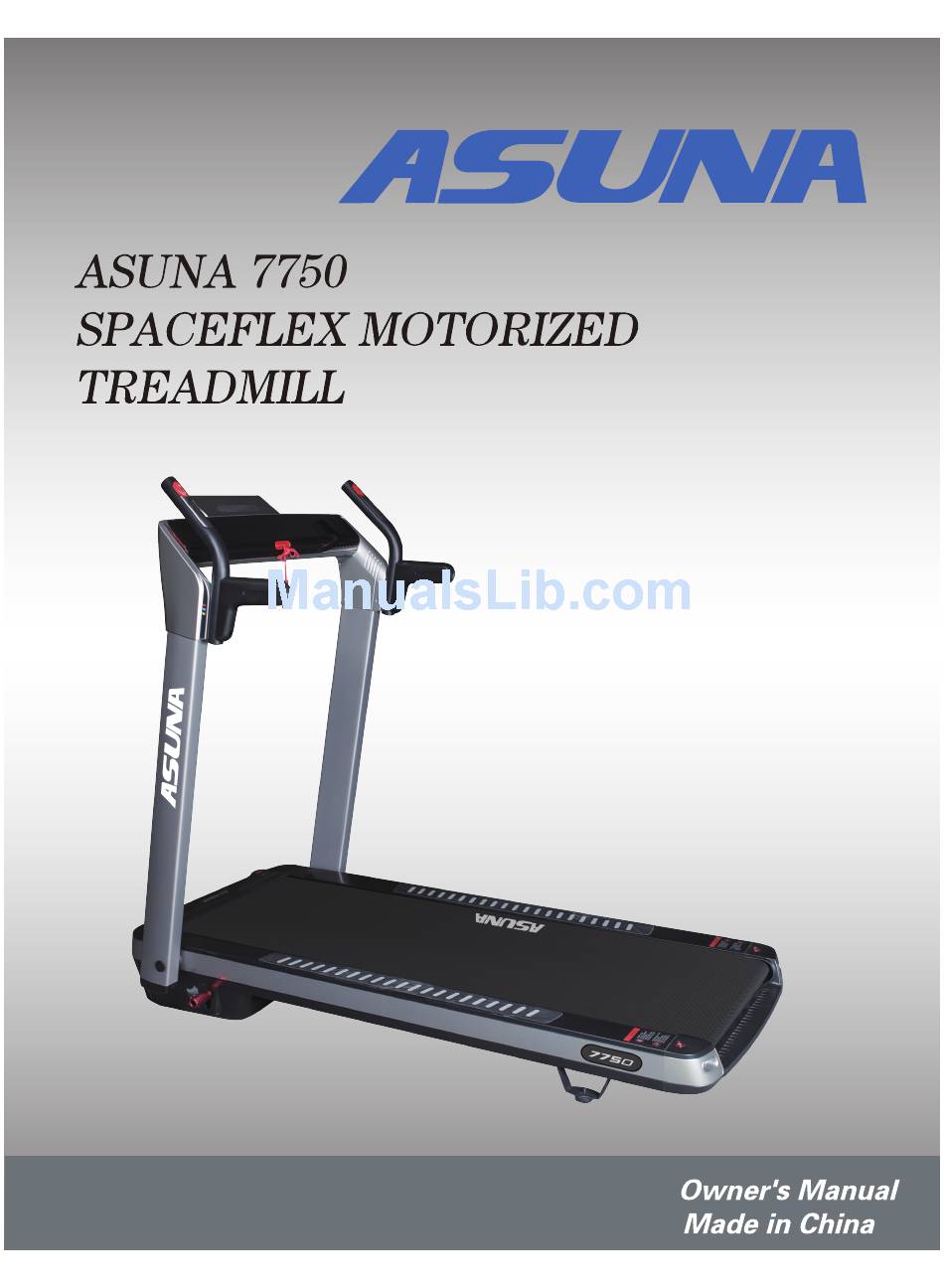

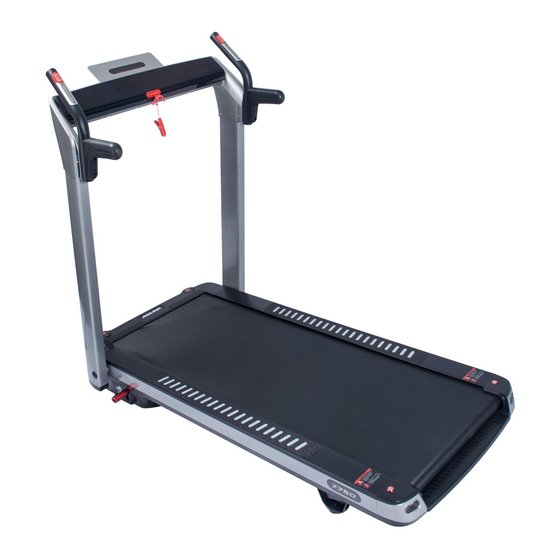

ASUNA 7750 Owner's Manual
  1. Manuals
  2. Brands
  3. ASUNA Manuals
  4. Treadmill
  5. 7750
  6. Owner's manual

ASUNA 7750 Owner's Manual

Spaceflex
Hide thumbs Also See for 7750:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASUNA 7750

Summary of Contents for ASUNA 7750

  • Page 2: Table Of Contents

    INDEX IMPORTANT SAFETY INFORMATION……………………………………………………1 EXPLODED DRAWING……………………………………………………………………. 2 PARTS LIST..………………………………………………………………………………. 3-5 TOOLS & HARDWARE…………………………………………………………………….. 6 ASSEMBLY INSTRUCTIONS……………………………………………………………... 7-8 FOLDING INSTRUCTIONS……………………………………………………………….. 9-10 MOVING INSTRUCTIONS………………………………………………………………..11 SPECIFICATION………………………………………………………………....12 IMPORTANT ELECTRICAL INFORMATION………………………………………... 13 OPERATING INSTRUCTIONS…………………………………………………..…..14 DISPLAY CONSOLE………………………………………………………………..... 15-19 MAINTENANCE INSTRUCTION…………………………………………………..... 20 MAINTENANCE GUIDELINE…………………………………………………....21 LUBRICATION………………………………………………….........

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.

  • Page 4: Exploded Drawing

    Exploded Drawing...

  • Page 5: Parts List

    Parts List ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY Main Frame Running Board Incline Bracket Running Belt 3L/R Handlebar Multi-Groove Belt Tablet Bracket Ring Wire Plug Meter Bracket Motor Seat Horizontal Tube Loudspeaker Rear Cover Fixed Seat Tablet Bracket Motor Under 7L/R Fixed Seat Cover...
  • Page 6 ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY Safety Key Seat C-shape Snap Φ10 Rings Upright Stopper Loudspeaker Light Shade Flat Washer Φ9*Φ23*T1.5 Screw M8*15 Light Transmitting M6*12 Screw Plate nickel-chrome M6*15 half-thread Handlebar Screw Stopper nickel-chrome M6*50 Module Fixer Screw Screw M6*60 Silicone Oil Bolt...
  • Page 7 ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY Flat Washer Φ12.2*Φ17*T0.5 Screw M8*35 inner Φ13 O Shaped Ring Screw M4*12 wire Φ1.5 Running Board Screw M6*25 Baffle BT2.2*5 Power Cord Screw nickle-plating Speed Shortcut End Socket Key Seat Pad Decorating Power Switch Light Overload Loudspeaker...

  • Page 8: Tools & Hardware

    Tools & Hardware When you open the carton, you will find the below spare parts. #20 Allen Wrench 1 PC #103 MP3 Line 1 PC #75 Screw M6*12 4 PCS #96 Power Cord 1 PC #55 Silicone Oil 1 PC #114 Handrail 2 PCS #128 Safety K ey 1 PC...

  • Page 9: Assembly Instructions

    Assembly Instructions STEP 1: Hold the Handlebars (No.3L/R). Press the Foot Lever (No.115) until you hear a click, then raise the Handlebars (No.3L/R) to vertical position till you hear a click. Lightly shake the Handlebars (No.3L/R) to make sure they are secure. STEP 2: Stand in front of the treadmill.
  • Page 10 STEP 3: Remove Plugs (No.137). Save the plugs for later use, when you remove the handrails. Attach the Handrails (No.114) to the treadmill bracket with 4 Screws (No.75). For your safety, make sure they are securely attached. STEP 4: Connect the Power Cord (No.96) to the treadmill.

  • Page 11: Folding Instructions

    Folding Instructions Before you fold the treadmill, remove the 4 Screws (No.75) and remove the Handrails (No. 114). If you saved the Plugs (No.137), you can plug in the holes. Stand in front of the treadmill. Fold the Tablet Bracket (No.4) by pulling it to the right as shown in drawing A.
  • Page 12 Hold the Handlebars (No.3L/R). Press the Foot Lever (No.115) until you hear a click. Then lower the Handlebars (No.3L/R).

  • Page 13: Moving Instructions

    Moving Instructions Before moving the treadmill, fold the treadmill first. Pull out the supporting moving wheels according to the drawing, to ensure the folded treadmill is stable when standing upright. To store the treadmill upright, lift treadmill so it stands vertically.To move the treadmill, tilt the treadmill towards you until the transportation wheels on the front base touch the ground.

  • Page 14: Specification

    Specification Assembly Size Speed Range 57.3(L)*29.3(W)*48(H) 0.6 - 8.0 (INCHES) (MI/H) Folded Standing Size 29.3(L)*10.4(W)*57.3(H) Rating 930W (INCHES) Running Surface Motor 2.5HP(PEAK) 51.2(L)*19(W) (INCHES) Spec(HP) 110 - 120V N.W.(lbs) Input Volt(V) Max User Weight Operating 0-82 F (LBS) Temperature Incline 0 - 12% Blue Single Display Speed, Time, Distance, Calories, Pulse, Incline...

  • Page 15: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

  • Page 16: Operating Instructions

    Operating Instructions 1. Plug the power cord into an outlet with appropriate voltage. 2. Turn on the power switch. 3. Insert the Safety Key. 4. Press the START button on the console. Never start the treadmill while you are standing on the running belt. After connecting the power, there may be a pause after the running belt begins to move, you should always stand on the treadmill side plastic non-slip rails until the belt starts moving.

  • Page 17: Display Console

    Display Console Windows Display a. “ Incline”: displays current incline value. b. “ Pulse/ Calorie”: displays current pulse value and the calories consumed. c. “ Time/ Program”: displays current exercise time and the current program. d. “ Distance/ Mode”: displays current exercise distance and current mode. e.
  • Page 18 Instant Start a. Turn on the power. Insert the safety key in the safety key place on the meter. b. Press “ Start”, system enters into 3 second countdown, and the buzzer makes a sound, “ Time/ Program” window display the countdown numbers at the same time.
  • Page 19 Built-in Automatic Programs This system has 8 built-in automatic programs P1...P8, at the standby mode. Press “// Program”, “ Time/ Program” window display “P1...P8”, and program light turns on. “ Time/ Program” window flashes at the same time. Time light turns on, display preset time “30:00”, after pressing both sides handrail+- to set the exercise time, press “...
  • Page 20 At the standby mode, press “ Program” continually to set the user customized program (U1-U3). Press “ Mode” to confirm and enter setting, then can set the first period of time, use handrail speed button to set speed, and use handrail incline button to set incline.
  • Page 21 Incline Self-Adjustment At the standby state, press “ Stop” and “ Speed 5” to do self-adjustment, after adjustment, gets back to standby state. Power saving mode This system has power saving function in the standby mode. If there is no button command input within 4 minutes, system will enter into power saving mode, and shut off display automatically.

  • Page 22: Maintenance Instruction

    Maintenance Instruction Cleaning Please make sure the treadmill's power plug is unplugged before cleaning or maintaining the product. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part on both sides of the running belt, which can reduce the piling of dust under the running belt.

  • Page 23: Maintenance Guideline

    Maintenance Guideline In order to maintain and prolong the working life of your treadmill, we suggest you power off for 10 minutes after every 2 hours’ running. The loose running belt will lead slip when you are running; the tighten running belt will affect the performance of the motor ,increase the wearing of the rollers and running belt.

  • Page 24: Lubrication

    Lubrication *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill. Therefore it is suggested that the running board and belt be inspected regularly.
