ASUNA 8730G Owner's Manual

Gold slim folding motorized treadmill

Hide thumbs

Table Of Contents

ASUNA 8730G

GOLD SLIM FOLDING MOTORIZED

TREADMILL

Table of Contents

Need help?

Do you have a question about the 8730G and is the answer not in the manual?

Questions and answers

Barbara Blaschke

July 3, 2025

I have an asuna 8430G Treadmill. the ipad/phone holder will not stay up. Is there a replacement holder or part to fix this?

Summary of Contents for ASUNA 8730G

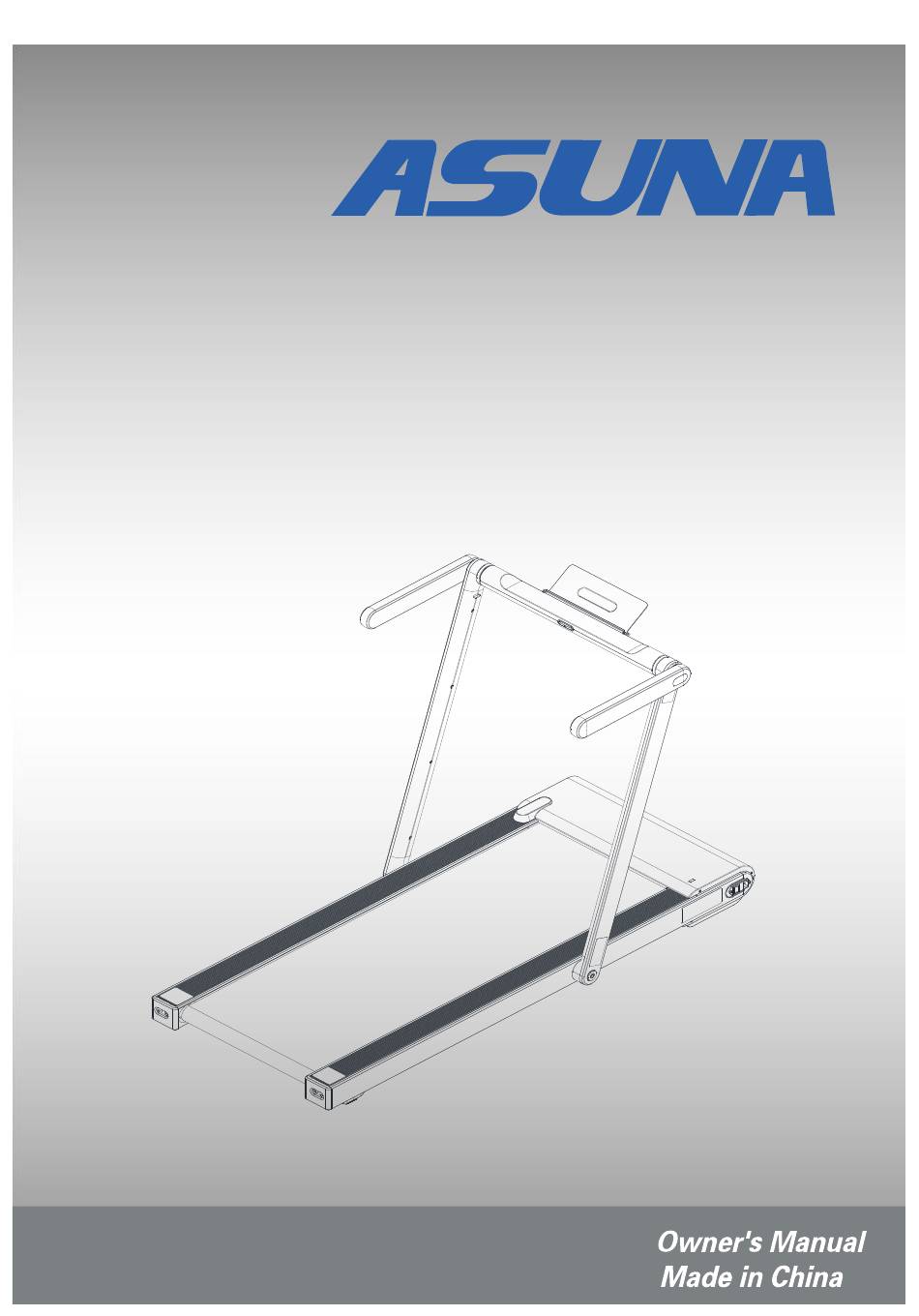

Page 1 ASUNA 8730G GOLD SLIM FOLDING MOTORIZED TREADMILL...
Page 2: Table Of Contents
INDEX IMPORTANT SAFETY INFORMATION………………………………………………………… EXPLODED DRAWING……………………………………………………………………… PARTS LIST……………………………………………………………………………………………. TOOLS & HARDWARE………………………………………………………………..… ASSEMBLY INSTRUCTIONS………………………………………………………………..FOLDING INSTRUCTIONS……………………………………………………..……………..… 10-11 MOVING INSTRUCTIONS……………………………………………………………………..… SPECIFICATION………………………………………………………………………………..…. IMPORTANT ELECTRICAL INFORMATION…………………………………………… OPERATING INSTRUCTIONS……………………………………………………………….…. DISPLAY CONSOLE……………………………………………………………………………... 16-18 MAINTENANCE INSTRUCTIONS……………………………………………………………… MAINTENANCE GUIDELINES…………………………………………………………………. LUBRICATION…………………………………………………………………………………….. ATTENTION: Please verify that all parts associated with this product are in good condition and accounted for.
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
Page 4: Exploded Drawing 1
Exploded Drawing 1...
Page 5: Exploded Drawing
Exploded Drawing 2...
Page 6: Parts List
Parts List DESCRIPTION SPEC. DESCRIPTION SPEC. Main Frame Meter Upper Cover 2L/R L/R Upright Meter Under Cover 3L/R Foam Handrail Safety Key Meter Bracket Safety Key Seat Horizontal Tube PC Board Light Motor Seat Bracket Inner Upright Φ30*23.7H Decorative Cover Pad Bracket Single- Outer Upright Sided Adhesive Tape...
Page 7 DESCRIPTION SPEC. DESCRIPTION SPEC. Φ18*Φ23*Φ2.5 Compression Spring Screw M6*12 *18.5L Φ0.6*Φ4.9*23L Compression Spring Screw M6*27 Screw M2.5*5 Screw M8*35 Rear Supporting Foot Pad Dual Adhesive Screw M8*12 Tape Screw M3*8 Screw M6*30 Screw M4*15 Screw M4*12 Φ5.5*Φ12*T1.2 Screw M4*15 Washer Φ9*Φ16*T1 .6 Screw M4*10...
Page 8 DESCRIPTION SPEC. DESCRIPTION SPEC. Bronze Plate Seat Switch Magnetic Ring Single Wire (Red) 200mm O-shape Ring Single Wire (Black) 200mm Single Wire Meter Keyboard 400mm Grounding Wire Power Cord Screw M5*10 Fuse Panel Sticker Power Switch with Overload Protector...
Page 9: Tools & Hardware
Tools & Hardware When you open the carton, you will find the below spare parts. #26 Safety Key 1PC #36 Silicon Oil 1PC #91 MP3 Line 1PC #97 Power Cord 1PC...
Page 10: Assembly Instructions
Assembly Instructions STEP 1: Take out Tool (No. 38). Loosen 2 Nuts (No. 6) from the Left & Right Upright (No. 2L & No. 2R) using Tool (No. 38). STEP 2: Hold the position “P” of Meter Bracket Horizontal Tube (No. 4) and lift the Left &...
Page 11 STEP 3: Stand in front of the treadmill. Turn the Pad Bracket (No.16) upward as seen in drawing A, then pull it slightly to the left as shown in the drawing B to lock in position. STEP 4: Connect the Power Cord (No. 97) to the treadmill.
Page 12: Folding Instructions
Folding Instructions Before folding the treadmill, stand in front of the treadmill. Fold the Pad Bracket (No. 16) upward by pulling it to the right as shown in drawing A. Then, turn it down as shown in drawing B. Turn the Foam Handrail (No. 3L & No.
Page 13 Tighten 2 Nuts (No. 6) to Left & Right Upright (No. 2L & No. 2R) using the Tool (No. 38). Then, put the Tool (No. 38) back into place.
Page 14: Moving Instructions
Moving Instructions Before moving the treadmill, fold the treadmill and tighten theLeft & Right Upright (No. 2L & No. 2R). After the above steps are finished, hold the Meter Bracket Horizontal Tube (No. 4). Place one foot on the front base and tilt the treadmill towards you until the Transportation Wheels (No. 44) on the front base touch the ground.
Page 15: Specification
Specification Assembly Size Speed Range 0.6—8MI/H 60(L)*30.3(W)*40(H) (INCHES) (MI/H) Folded Standing Rating 930W 62.2(L)*30.3(W)*5.4(H) Size (INCHES) Running Size Motor 49.2(L)*17.7(W) 2.5HP(PEAK) (INCHES) Spec(HP) N.W. (LBS) Input Volt(V) 110-120V Max User Weight Operating 0-82° F (LBS) Temperature Blue Single Display Speed, Time, Distance, Calories...
Page 16: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user.
Page 17: Operating Instructions
Operating Instructions 1. Plug the power cord into an outlet with appropriate voltage. 2. Turn on the power switch. 3. Insert the Safety Key. 4. Press the STARTbutton on the console. Never start the treadmill while you are standing on the running belt. After connecting the power, there may be a pause after the running belt begins to move.
Page 18: Display Console
Display Console 1. Window Display: Distance: Displays exercise distance and counts forward from 0.00-99.0. Time / Step: Displays time in the default settings and switches the display every 5 seconds. Time: Displays the exercise time. Manual mode counts forward from 0:00-99:59. Once the count reaches 99:59, the treadmill decreases the speed steadily to a stop.
Page 19 3. Operating Instructions: A. Press Start/Pause button “ ”, the treadmill will countdown for 3 seconds and begin the initial speed of 0.6 mi/h. B. Press Speed increase and Speed decrease button can adjust the speed. C. Press Speed shortcut button can quickly set the speed to the Speed displayed on the button.
Page 20 Treadmill Error Codes: If the treadmill displays an error code, please contact Customer Service at support@sunnyhealthfitness.com. ---or----(or display E00/E07 according to the request of the customer). E01: Communication fault (driver doesn't receive meter signal). E02: Stalling protection (explosion-proof protection or main motor fault). E03: No speed sensor signal (with speed sense driver).
Page 21: Maintenance Instructions
Maintenance Instructions Cleaning Please make sure the treadmill's power plug is unplugged before cleaning the machine. Keep the treadmill clean by dusting it regularly. Be sure to clean the exposed parts on both sides of the running belt. This can reduce the dust underneath. Make sure your shoes are clean to avoid any foreign material damaging the running belt and running board.
Page 22: Maintenance Guidelines
Maintenance Guidelines General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 22) to prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.
Page 23: Lubrication
Lubrication *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. 21) and Running Belt (No. 22) is essential as the friction between the two affects the life span and function of the treadmill. It is suggested that the Running Board (No.
