Home Decorators Collection Hamilton 788-5X Assembly Instruction

HDC#: 26494 MFG#: 788-5X
ASSEMBLY INSTRUCTION

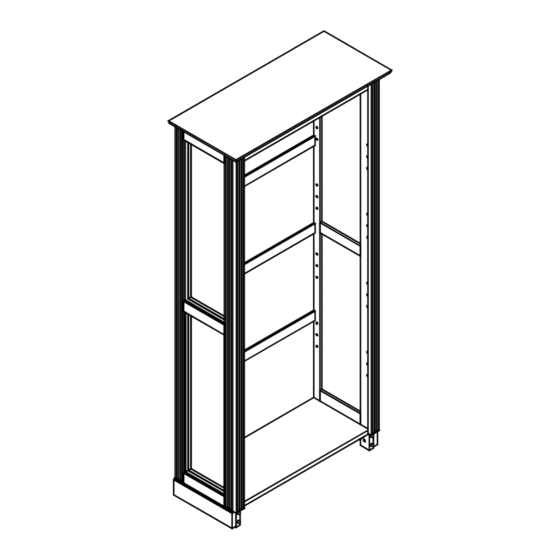

Hamilton Bookcase Standard 5-Shelf
LIST OF WOODEN PARTS
PART DESCRIPTION
A
Left Panel
B Right Panel
C Lower Shelf
D Support
E Back Support
F Back Panel
G Front Mantel Top Support
H Back Mantel Top Support
I Mantel Top
J Lower Cover Front
K Shelves
LIST OF HARDWARE
PART DESCRIPTION
RF40012 Pin Support
RF10002 Screw F6 x 1 1/4"
RF10003 Screw JCA 1/4" x 32 mm.
RF10022 Screw F4 x 5/8"
RF10041 Screw JCB M6 x 40 mm.
RF40015 Hexagonal Wrench
RF40012 RF10002
RF10022 RF10041
Please contact Home Decorators
Collection Customer Service at
(800) 240-6047
for part or other product issues.
RF10003
D
Q'TY
1
1
1
4
3
4
1

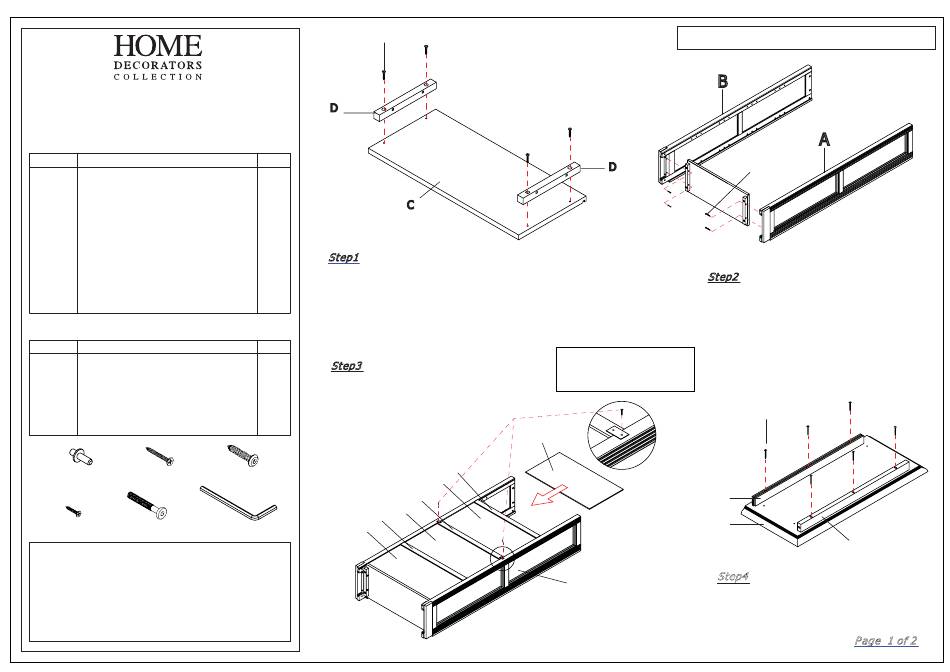

Step1
Fasten the Supports (D) on the Lower shelf (C)
1
with the large screws (RF10003)
1
(notice the holes) and tighten all screws.
1
4
Q'TY
16
Step3
Insert the Back
6
panel (F), the Back support
8
(E), step by step into the
2
grooves of side panel.
8
1
RF10003
F
E
F
RF40015
C
Attach the metal plate as
per detail and secure with
screws (RF10022)
RF10022
F
E
F
E
A
P lease assem ble at every step on soft surface.
B
RF10041
D
Step2
Lay the side panels (A),(B) on
the flat floor.Then put Lower shelf (C)
between them . Loosely screw the
screws (RF10041) to fasten them
together.
RF10002
H
I
Step4
Fasten the mantel top
support(G)(H) on the Mantel top(I)
by 6 small screws (RF10002).
A
G
P age 1 of 2
