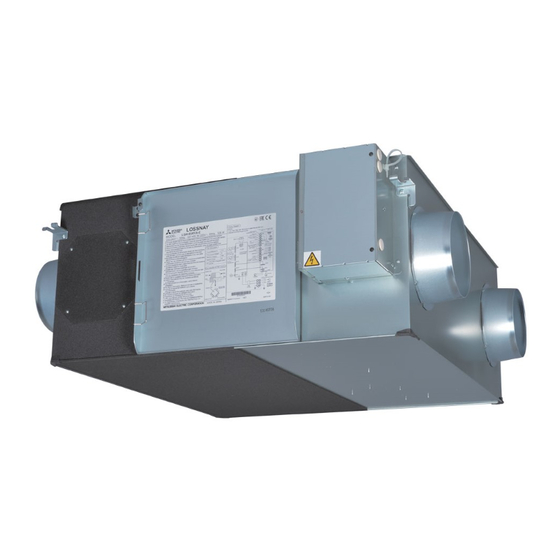

Lossnay Energy Recovery Ventilator
MODELS:
LGH-15RVX3-E
LGH-25RVX3-E
LGH-35RVX3-E
LGH-50RVX3-E
LGH-65RVX3-E
LGH-80RVX3-E
LGH-100RVX3-E
LGH-160RVX3-E
LGH-200RVX3-E
Operating Instructions
For the user
Please read this manual carefully before use for proper and safe use.
Do not attempt to install the product by yourself.
Eng-1
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric Lossnay LGH-15RVX3-E
Summary of Contents for Mitsubishi Electric Lossnay LGH-15RVX3-E
- Page 1 2303N22HHZA0012 Lossnay Energy Recovery Ventilator MODELS: LGH-15RVX3-E LGH-25RVX3-E LGH-35RVX3-E LGH-50RVX3-E LGH-65RVX3-E LGH-80RVX3-E LGH-100RVX3-E LGH-160RVX3-E LGH-200RVX3-E Operating Instructions For the user Please read this manual carefully before use for proper and safe use. Do not attempt to install the product by yourself. Eng-1...
-
Page 2: Safety Precautions
2303N22HHZA0012 1. Safety precautions The following signs indicate that death or serious injury may be caused by failure to heed the precautions described below. WARNING Incorrect handling could cause serious injury or death. Do not turn the unit on or off when flammable gas has leaked. It could catch fire or cause explosion with sparks released from electrical components. -
Page 3: Names Of The Parts
2303N22HHZA0012 2. Names of the parts Models 15 to 100RVX3 Models 160 and 200RVX3 Lossnay core holder Lossnay core holder Control box Control box Air supply fan Maintenance cover Maintenance cover Air supply fan Fix piece Fix piece Air filter Lossnay core Damper plate Air exhaust fan... - Page 4 2303N22HHZA0012 n Display and Function button (PZ-62DR-EA/EB) Backlit LCD ON/OFF lamp MENU RETURN SELECT ON/OFF button button button button Function buttons n LOSSNAY ENERGY RECOVERY VENTILATE n AUTOMATIC VENTILATION setting The automatic ventilation mode automatically provides the correct setting ventilation for the conditions in the room. The following shows the Both fresh air supply and return air pass through the energy effect “By-pass”...
-
Page 5: Maintenance
2303N22HHZA0012 4. Maintenance Remove all dust and dirt on air filters and Lossnay cores at regular Note intervals in order to prevent a deterioration in the Lossnay functions. • When the unit is installed upside down, air filters are positioned upper Lossnay cores. Guideline: Clean the air filters once a year. - Page 6 2303N22HHZA0012 4.3 Assembly after maintenance Bearing in mind the following points, assemble the parts following the sequence for their removal in reverse. Check the fix piece does not slide off the hinge wire by the black screw. Maintenance cover Hinge wire Black screw Fix piece •...
-
