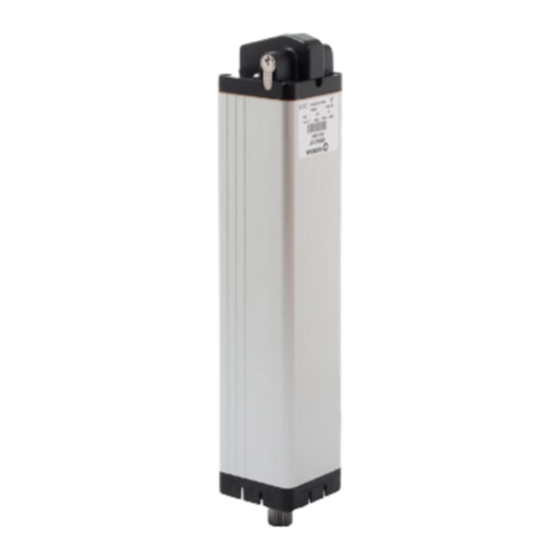

Erreka MAGIC Installer Manual
Integrated in-post electromechanical operator for swing gates
Hide thumbs
Also See for MAGIC:
- Installer manual (104 pages) ,
- Quick installation and programming manual (20 pages) ,
- Quick installation and programming manual (20 pages)
Table of Contents
Advertisement
Quick Links
MAGIC
ACCIONADOR ELECTROMECÁNICO INTEGRADO PARA PUERTAS BATIENTES
MANUAL DEL INSTALADOR
INTEGRATED IN-POST ELECTROMECHANICAL OPERATOR FOR SWING GATES
INSTALLER´S MANUAL
ACTIONNEUR ÉLECTROMÉCANIQUE INTÉGRÉ POUR PORTES BATTANTES
MANUEL DE L'INSTALLATEUR
ACCIONADOR ELECTROMECÂNICO INTEGRADO PARA PORTAS BATENTE
MANUAL DO INSTALADOR
EINGEBAUTER ELEKTROMECHANISCHER ANTRIEB FÜR FLÜGELTORE
INSTALLATEUR-BEDIENUNGSANLEITUNG
www.erreka.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Erreka MAGIC
Summary of Contents for Erreka MAGIC
- Page 1 MAGIC ACCIONADOR ELECTROMECÁNICO INTEGRADO PARA PUERTAS BATIENTES MANUAL DEL INSTALADOR INTEGRATED IN-POST ELECTROMECHANICAL OPERATOR FOR SWING GATES INSTALLER´S MANUAL ACTIONNEUR ÉLECTROMÉCANIQUE INTÉGRÉ POUR PORTES BATTANTES MANUEL DE L'INSTALLATEUR ACCIONADOR ELECTROMECÂNICO INTEGRADO PARA PORTAS BATENTE MANUAL DO INSTALADOR EINGEBAUTER ELEKTROMECHANISCHER ANTRIEB FÜR FLÜGELTORE INSTALLATEUR-BEDIENUNGSANLEITUNG www.erreka.com...
-
Page 3: Table Of Contents
Required tools _____________________________________________ 28 Required materials __________________________________________ 28 Initial conditions and checks __________________________________ 28 Installing the operator _______________________________________ 29 Final preparation ___________________________________________ 38 Maintenance and troubleshooting Maintenance_______________________________________________ 39 Troubleshooting ____________________________________________ 39 Scrap _____________________________________________________ 39 Spare parts ________________________________________________ 39 MAGIC built-in electromechanical operator... -
Page 4: General Safety Instructions
For further details, see “Fig. 1 Elements of the The safety of the complete installation depends on complete installation” on page 23. all the elements installed. Install only Erreka components order guarantee proper operation. -
Page 5: Description Of The Product
F: Antenna Coaxial cable 50 (RG-58/U) *NOTE: the electrical installation of the operator can be carried out correctly and straightforwardly using the wire with code AYCY8, which ERREKA can supply by metre. This wire has the characteristics 4x1mm +2x1mm + ((2x0.5mm )) and was developed specifically for this purpose. -
Page 6: General Characteristics Of The Operator
DESCRIPTION OF THE PRODUCT GENERAL CHARACTERISTICS OF THE OPERATOR The MAGIC operator is made to form part of an The MA210 and MA250 models are reversible, automated system, integrated in the frame of iron or meaning the installation must be fitted with an aluminium swing doors. -
Page 7: Technical Characteristics Of The Operator
Using an electrolock for leaf lengths of over 1.8 m is recommended. Values for illustration purposes. The shape of the leaf and the presence of strong wind may bring notable differences in the values of the chart. MAGIC built-in electromechanical operator... -
Page 8: Manual Operation
• 2006/95/EC (low voltage materials) 42/EC and successive modifications. • 2004/108/EC (electromagnetic compatibility) The MAGIC electromechanical operator can be used to • UNE-EN 60335-1 carry out installations in line with standards EN 13241- 1 and EN 12453, provided it is correctly and suitably installed. -
Page 9: Unpacking And Contents
CONTENTS The following elements are supplied in the MAGIC operator package: operator (4), capacitor (21), release keys (22) and installation instructions (quick guide). The other elements which appear in the... -
Page 10: Installation
INSTALLATION REQUIRED TOOLS Set of screwdrivers Tape measure Fixed wrenches (13 mm and 17 mm) Allen key (5mm) Marker pencil Electrical drill and broaches Use the electrical drill in line with the user instructions. Spirit level REQUIRED MATERIALS Screws for attachment to the base plate and the wall Lubrication grease (graphite or lithium grease). -
Page 11: Installing The Operator
INSTALLATION INSTALLING THE OPERATOR Assembly positions and levels 110mm 85mm 57mm For safety reasons: A>25mm (B>45mm) 670mm 96mm 78mm 174mm 130mm M249A1 M249D1 Fig. 4 Assembly position for the frame and the integrated operator MAGIC built-in electromechanical operator... - Page 12 INSTALLATION Frame size =100mm Level A: Exterior frame size: 100mm Level B: Interior frame size: 100 x 100 x 3 M249C Template to make the orifices Holes to secure the top profile cover Orifices for lock Motor attachment orifices Holes to secure the bottom profile cover 46mm 9,5mm M249B1...
- Page 13 1 Position the template (1) supplied with the operator, ensuring the lower edge of the template coincides with the base of the frame (2). 2 Drill the four orifices (3) where the motor will be attached. Use 10.5 mm broach. P249B1 MAGIC built-in electromechanical operator...
- Page 14 INSTALLATION Make the orifices for the attachment of the metal fittings 1 Position the template (1) supplied with the operator, ensuring the lower edge of the template coincides with the base of the frame (2) on the interior side of the door.
- Page 15 MAS250F: position the two caps (4), one on each side. Take care to correctly position the two caps (4) (one on each side), using the four screws (T), to prevent the ingress of water. P249F2 MAGIC built-in electromechanical operator...
- Page 16 INSTALLATION Position the base of the profile 1 Mount the lower cover (1) on the frame of the door. 2 Tighten the screws (3) and (4). 3 Position the assembly (M) on the base plate (5), ensuring the traction wheel (2) is correctly coupled. P05G1 Position the upper profile support 1 With the sealing joint (T) correctly in place, secure...
- Page 17 Before carrying out any door movement, ensure there is no person or object in the radius action door drive mechanisms. Ensure the earth wire of the motors is connected to the control board earth terminal. MAGIC built-in electromechanical operator...
- Page 18 INSTALLATION General connections, using the VIVO-M203 or VIVO-M204 board VIVO-M203, VIVO-M203, VIVO-M204: VIVO-M204: VIVO-M203M, VIVO-M203M, VIVO-M204M: VIVO-M204M: A1, A2: operators capacitors earth connection (yellow/green wire) Encoder connection (when available) M1 connections (A1 motor) red wire brown wire GND :mesh black wire SGN1:blue wire grey wire M2 connections (A2 motor)
- Page 19 COM white wire COM white wire red wire red wire If the operator HAS an encoder: If the operator HAS an encoder: COM orange wire COM orange wire purple wire purple wire Fig. 6 EPS1 plate brake connection MAGIC built-in electromechanical operator...
-
Page 20: Final Preparation
INSTALLATION FINAL PREPARATION Connections and checks 1 Install an electrolock to lock the door in closing position. This is necessary for models MAS210 and MAS250, along with the other models, if the length of the leaf is over 1.8 m. ... -
Page 21: Maintenance And Troubleshooting
If the operator needs repairing, go to an Use only original spare parts. See the figure authorised assistance centre or manufacturer; “MAGIC operator and metal fittings (AMA10 / never try to repair it yourself. AMA11)” on page 27. MAGIC built-in electromechanical operator... - Page 22 MAINTENANCE AND TROUBLESHOOTING Installation Manual...
