INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
WOOD STOVE
225CB
03.27124.000 06/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 225CB and is the answer not in the manual?

Questions and answers

Summary of Contents for Dovre 225CB

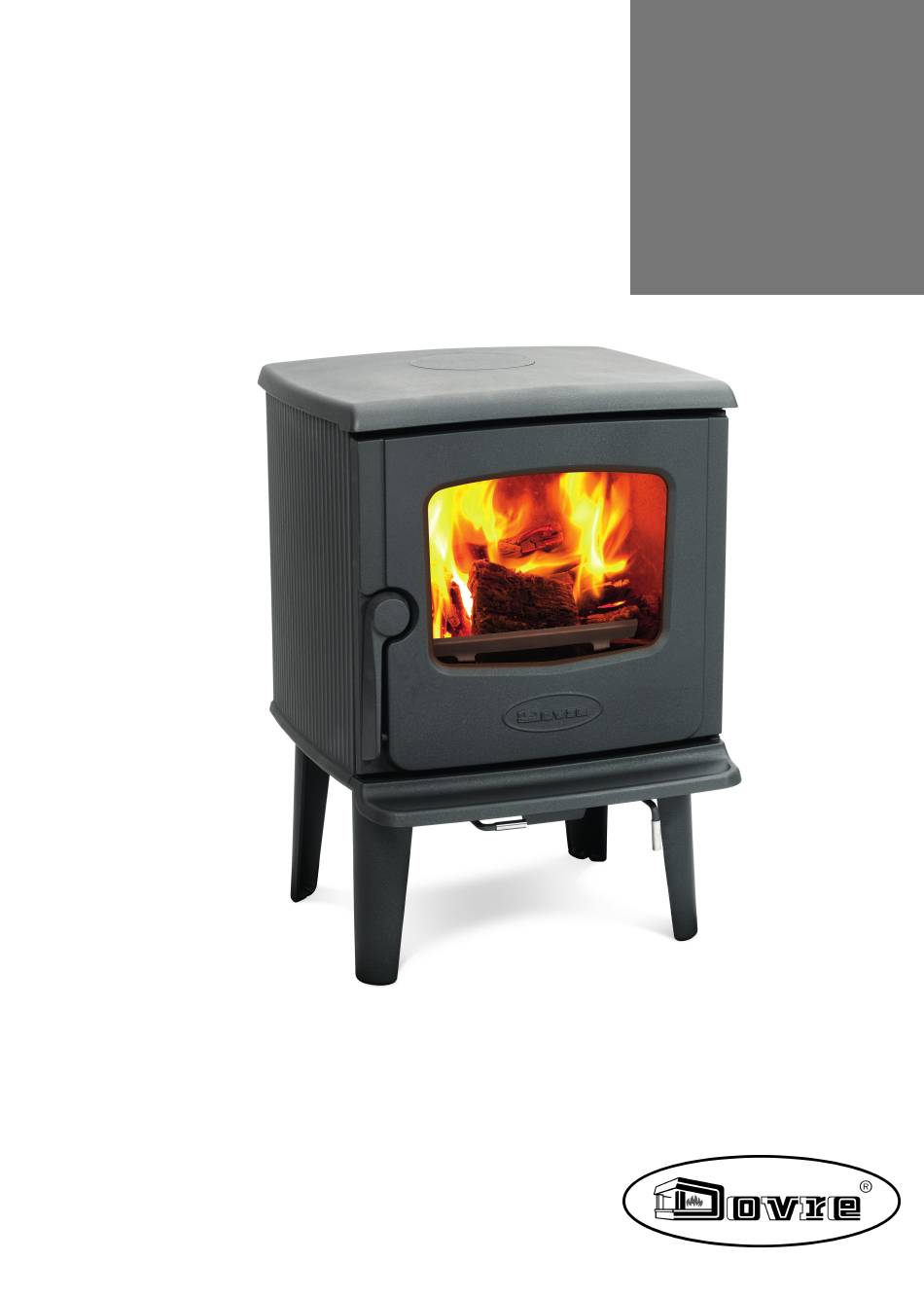

  • Page 1 INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE 225CB 03.27124.000 06/2013...
  • Page 2: Table Of Contents

    Removing ashes Fog and mist Solving problems Maintenance Chimney Cleaning and other regular maintenance acti- vities Spare parts 225CB Appendix 1: Technical Data Appendix 2: Dimensions Appendix 3: Distance from combustible material Appendix 4: Diagnosis diagram Index Subject to change because of technical improvements...
  • Page 3: Introduction

    The appliance is intended for use in a living room. It should be connected hermetically to a well-func- tioning chimney. that the wood stove 225CB has been produced in We advise you have the appliance installed by an accordance with EN 13240.
  • Page 4: Safety

    Safety Installation requirements Please note: All safety regulations must be complied with strictly. General Please read carefully the instructions supplied with the appliance for installation, use and The appliance must be connected tightly to a well- maintenance, before using the appliance. functioning chimney.
  • Page 5: Ventilation Of The Area

    Starting from the flue spigot, the flue must run as Ventilation of the area vertically as possible. Changes in direction and horizontal pieces disrupt the outward flow of com- For good combustion, the stove needs air (oxygen). bustion gases and may cause soot deposits. This air is supplied via adjustable air inlets from the area in which the stove is installed.
  • Page 6: Product Description

    material. Features of the appliance The rule of thumb for a single-walled tube is a distance of 3x the diameter. If a lining shell is The appliance is an entirely cast-iron design with fitted around the tube, a distance of 1x the dia- modern combustion technology.
  • Page 7 3. Close the door. 1. Open the door; see the following figure. 09.20020.100 Removable internal sections 3 fire basket 4 inner plate on the left and right side 5 baffle plate Connecting to the rear 1. Apply supplied fibre glass sealing tape (2) mea- suring 10 x 3 mm to the connection collar's con- tact surface (8).
  • Page 8: Preparing The Outside Air Connection

    3. Remove the cover (1) from the back wall. 4. Install the connection collar to the back wall with the materials. 5. Install the cover in the top plate using the moun- ting bracket (4). Preparing the outside air connection If the appliance is installed in a room without sufficient ventilation, you can install the connecting kit on the appliance for the supply of outside air.
  • Page 9: Use

    3. In the case of connection to outside air: connect Saw the wood to size and split it while it is still the outside air supply to the connector fitted to the fresh. Fresh wood is easier to split, and split wood appliance.
  • Page 10: Burning Wood

    appliance; see the following figure. Open stacking 5. Allow the fire develop into a good blaze until there is glowing bed of charcoal. You can then add fuel and adjust the appliance, see the chapter "Stoking with wood". If the logs are stacked openly, the wood will burn quickly as the oxygen can reach each log easily.
  • Page 11: Controlling Combustion Air

    the stove window and door. Controlling combustion air When the outside temperature is not very low, it is better to burn wood intensely for a few The appliance has various features for air control; see hours instead of having a low intensity fire for a following figure.
  • Page 12: Maintenance

    Cast-iron inner plates last a long time if you Maintenance remove frequently the ash that can accumulate behind them. If accumulated ash behind the Follow the maintenance instructions in this chapter to cast-iron plate is not removed, the plate will no keep the stove in good condition.
  • Page 13: Spare Parts 225Cb

    Lubrication Spare parts 225CB Although cast-iron is slightly self-lubricating, you will still need to lubricate moving parts frequently. Lubricate the moving parts (such as guide sys- tems,hinge pins, latches and air slides) with heat resistant grease that is available in the specialist trade.
  • Page 14: Appendix 1: Technical Data

    Appendix 1: Technical Data 225CB Model (4.9 kW) Nominal output 4.9 kW Chimney connection (diameter) 125 mm Weight +/- 100 kg Recommended fuel Wood Fuel property, max. length 30 cm Mass flow of flue gases 3.4 g/s Flue gas temperature measured in the measurement section 228 °C...
  • Page 15: Appendix 2: Dimensions

    Appendix 2: Dimensions 225CB (GB) Subject to change because of technical improvements...
  • Page 16: Appendix 3: Distance From Combustible Material

    Appendix 3: Distance from combustible material 225CB - Minimum distance in millimetres 09-20008-017 Combustible material Incombustible material, thickness 100 mm Please note! To guarantee the flow of combustion air, when no outside air connection is provided, the dis- tance from the outside air connection collar to the wall must be at least 20 mm. The connection collar may be removed where appropriate.
  • Page 17 225CB - Dimensions of fireproof protective plate 09-20002-004 Minimal dimensions of fireproof protective plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...
  • Page 18: Appendix 4: Diagnosis Diagram

    Appendix 4: Diagnosis diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in stove is too intense, is hard to adjust Deposit on the glass possible cause possible solution A cold flue usually fails to create sufficient draught.
  • Page 19: Index

    Index Control air supply Control of air Cover on flue Creosote Adding fuel Adding wood smoking stove Damage Air control Damp wood Air inlets Dimensions Air leak Door Air supply for fire open Ashes sealing rope remove Draught Drying wood Bearing capacity of floor Burning Efficiency...
  • Page 20 Fog, do not burn wood Fuel Open adding door adding wood Outside air intake necessary amount connection to suitable unsuitable wood Paint finish Particulate emission Glass Parts, removable clean Prevent a chimney fire deposit Primary air inlet Heat, insufficient 11, 18 Removable parts Hood on the flue Removal of ashes...
  • Page 21 Ventilation connect supply of outside air rule of thumb Ventilation louvre Vermiculite fire-resistant Vermiculite inner plates Walls fire safety Warning chimney fire 4, 9, 11 combustible materials fireproof inner plates glass broken or cracked 4, 12 hot surface regulations stove window cleaner terms and conditions for insurance ventilation Weather conditions, do not burn wood...
