- Page 1 Thin Client Operating Manual FUJITSU Thin Client FUTRO S9010...
- Page 2 Thank you for buying an innovative product from Fujitsu. Latest information about our products, useful tips, updates etc. is available on our website: "http://www.fujitsu.com/fts/" You can find driver updates at: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact: •...
- Page 4 Published by / Contact address in the EU Fujitsu Technology Solutions GmbH Mies-van-der-Rohe-Straße 8 80807 Munich, Germany "http://www.fujitsu.com/fts/" Copyright © Fujitsu Technology Solutions GmbH 2019. All rights reserved. Publication Date 12/2019 Order No.: A26361-K1090-Z329-1-7619, edition 1...
- Page 5 FUJITSU Thin Client FUTRO S9010 Operating Manual Your FUTRO... Ports and Operating Elements Important notes Getting started Operation System expansions and repairs Technical data Index...
- Page 6 Information on the product description meets the design specifications of Fujitsu and is provided for comparison purposes. Several factors may cause the actual results to differ. Technical data is subject to change without prior notification. Fujitsu rejects any responsibility with regard to technical or editorial mistakes or omissions.
-
Page 7: Table Of Contents
............... . 29 Fujitsu... - Page 8 FUJITSU FUTRO S9010 thin client ........
-
Page 9: Your Futro
Validity of the Reference Manual This Reference Manual is valid for the following system: • FUJITSU FUTRO S9010 thin client Notational conventions Pay particular attention to text marked with this symbol. Failure to observe these warnings could pose a risk to health, damage the device or lead to loss of data. -
Page 10: Ports And Operating Elements

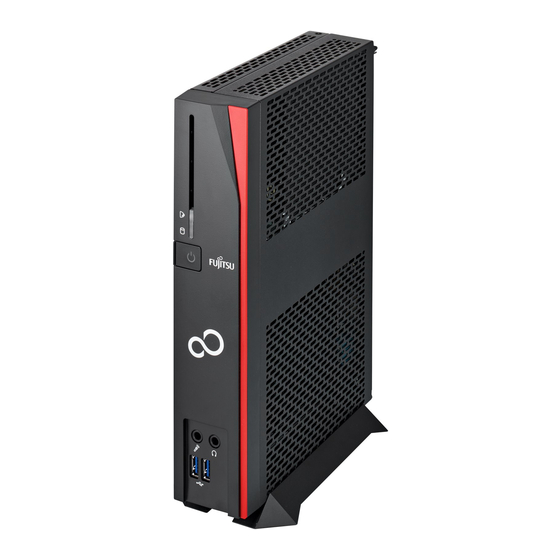

1 = SmartCard reader (optional) 5 = Microphone jack 2 = Indicator for SmartCard reader 6 = USB 3.1 Gen1 ports (USB Type-A) 3 = Flash memory or hard disk access 7 = Headphone port 4 = ON/OFF switch Fujitsu... -
Page 11: Rear View
5 = RJ45 socket (Local Area Network) with double screw security 6 = USB 2.0 ports (USB Type-A) 14 = PS/2 mouse port 7 = DisplayPort 15 = Audio input (Line In) 8 = Serial port 16 = PCI/PCIe slot Fujitsu... -
Page 12: Security Functions
If you are using the VESA sub-adapter, first connect the Kensington Lock Cable to the Security Lock device and then mount your device on the VESA sub-adapter. You can find more information in the manual for your FUJITSU FUTRO S monitor carrier. When using the Security Lock device, opening of the casing is also prevented. -
Page 13: Securing Usb Covers (Optional)
Please note that USB covers, once fitted, cannot be removed again! Ensure that you fit the USB covers the right way round. ► Insert the USB covers in the USB ports on the front of the device and push the USB covers in firmly. Fujitsu... - Page 14 ► Insert the USB covers in the USB ports on the rear side of the device and push the USB covers in firmly. In the BIOS Setup, under Advanced - USB Port Security, you can also deactivate the USB ports, in order to limit the use of USB devices. Fujitsu...
-
Page 15: Important Notes
Make sure that the rated current of the mains adapter is not higher than that of the power system to which you connect the mains adapter. ON/OFF switches do not disconnect the device from the mains voltage. To completely disconnect the mains voltage, remove the power plug from the power socket. Fujitsu... -
Page 16: Module
Ensure that no liquid enters the system. The surface can be cleaned with a dry cloth. If particularly dirty, use a cloth that has been moistened in mild domestic detergent and then carefully wrung out. Use disinfectant wipes to clean the keyboard and the mouse. Fujitsu... -
Page 17: Energy Saving, Disposal And Recycling
26, on the Recovery DVD or on our website ("http://www.fujitsu.com/fts/about/fts/environment-care/"). The following sections apply to the FUJITSU Thin Client FUTRO only: Information about the "Eco-design directive": Regulation 1275/2008, based on the EU Eco-design Directive (2009/125/EU), defines requirements for the power consumption of electrical and electronic domestic and office devices in stand-by and off mode. -
Page 18: Getting Started
Proceed as follows to prepare the device for the vertical operating position: ► Disconnect the cables if required. ► Lay the device on its top (narrow side) as shown, on a stable, flat and clean surface. Fujitsu... - Page 19 To protect your device against unauthorised removal of the feet, the feet can also be secured with two screws each, of type M2.5x5 mm. These are not included in the delivery scope. ► Secure the feet with the screws (3). Fujitsu...
-
Page 20: Horizontal Operating Position
Proceed as follows to prepare the device for the horizontal operating position: Horizontaloperatingposition Operatingposition,horizontal Base feet ► Disconnect the cables if required. ► Lay the device on its right side as shown, on a stable, flat and clean surface. Fujitsu... - Page 21 To protect your device against unauthorised removal of the feet, the feet can also be secured with two screws each, of type M2.5x5 mm. These are not included in the delivery scope. ► Secure the feet with the screws (3). Fujitsu...
- Page 22 Getting started ► Stand the device on the feet. ► If necessary, reconnect any cables that were previously disconnected. Fujitsu...
-
Page 23: Connecting External Devices
UniversalSerialBus DisplayPort PS/2 mouse port, green DisplayPort Mouseport PS/2mouseport PS/2 keyboard port, purple Keyboardport Some of the connected devices require special software (e.g. drivers) (refer to the documentation for the connected device and operating system). Fujitsu... -
Page 24: Connecting A Monitor
► Switch your device off. ► Plug the round plug of the keyboard cable into a keyboard port of the device. Keyboard, ► Switch your device on again. Fujitsu... -
Page 25: Connecting External Devices To The Serial Interface
External USB devices which you connect to one of the USB ports don’t usually need their own drivers because the software required is already included in the operating system. If the device requires separate software, please follow the instructions in the manufacturer’s documentation. Fujitsu... -
Page 26: Connecting Microphone, Headphones, Line-Out And Line-In Devices
► Connect the mains cable (1) to the mains adapter. ► Connect the mains adapter cable (2) to the DC jack (DC IN) of the device. ► Plug the mains cable (3) into a mains socket. Fujitsu... -
Page 27: Operation
Citrix and Microsoft clients as well as the optional VMware client. It has a user-friendly licence model, with the possibility of transferring licences to new devices. Updates for eLux® can be found on the Fujitsu support pages or on the Internet at "www.myelux.com". -
Page 28: Windows® 10 Iot Enterprise
The write protect filter is not enabled in the delivery state, to make it easier to adapt the thin client to your requirements. Fujitsu strongly advises that the write protect filter should be enabled during normal operation, because only then is the typical thin client high security of the device guaranteed. -
Page 29: Scout Enterprise Management Suite® - The Management Solution For Thin Clients
• Support of Wake-On-LAN and Remote Power On/Off Mirroring of desktops, encrypted and audit-proof • • Extensive diagnostic information For more information on Scout Enterprise, go to "http://www.unicon-software.com/produkte/scout-enterprise/". More information and manuals are available on the Internet at "http://www.unicon-software.com/udocs". Fujitsu... -
Page 30: Switching Off The Device
► When the system starts, press the ON/OFF switch for two to three seconds. ► Press (possibly several times) the key. BIOS Setup will be started. Select one of the tabs to access other setting options in BIOS Setup. Fujitsu... -
Page 31: Pxe System Boot
BIOS Update When should a BIOS update be performed? Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can be integrated. A BIOS update should also always be performed if there is a problem that cannot be solved using new drivers or new software. -
Page 32: System Expansions And Repairs
Servicing Information on system expansions and repairs can be found on the Internet in the "System Expansions and Repairs" manual at "http://www.fujitsu.com/fts/support". Operations that are distinguished in the manual as Only For Service, such as repairs to the device, may only however be performed by authorised service technicians. -
Page 33: Technical Data
Technical data Technical data Technicaldata FUJITSU FUTRO S9010 thin client Electrical data Processor: Intel Pentium J5040, Gemini Lake Refresh Quad Core 2.0 GHz (max. 3.2 GHz Single Core Burst Freq.) with integrated Intel UHD Graphics 605 Rated voltage: With AC adapter: 19 – 20 V With internal PSU: 100 –... -
Page 34: Ac Adapter
• 65W: S26113-E623-V55 Model: ADP-65JH AB Internal AC adapter Electrical data Rated voltage: 100 - 240 V Max. rated current: 1,0 A 50 – 60 Hz Rated frequency: Only the following internal adapter may be used: S26113-E598-V50 Model: DPS-65AB-2A Fujitsu... -
Page 35: Index
