Summary of Contents for European Home FULCRUM 95

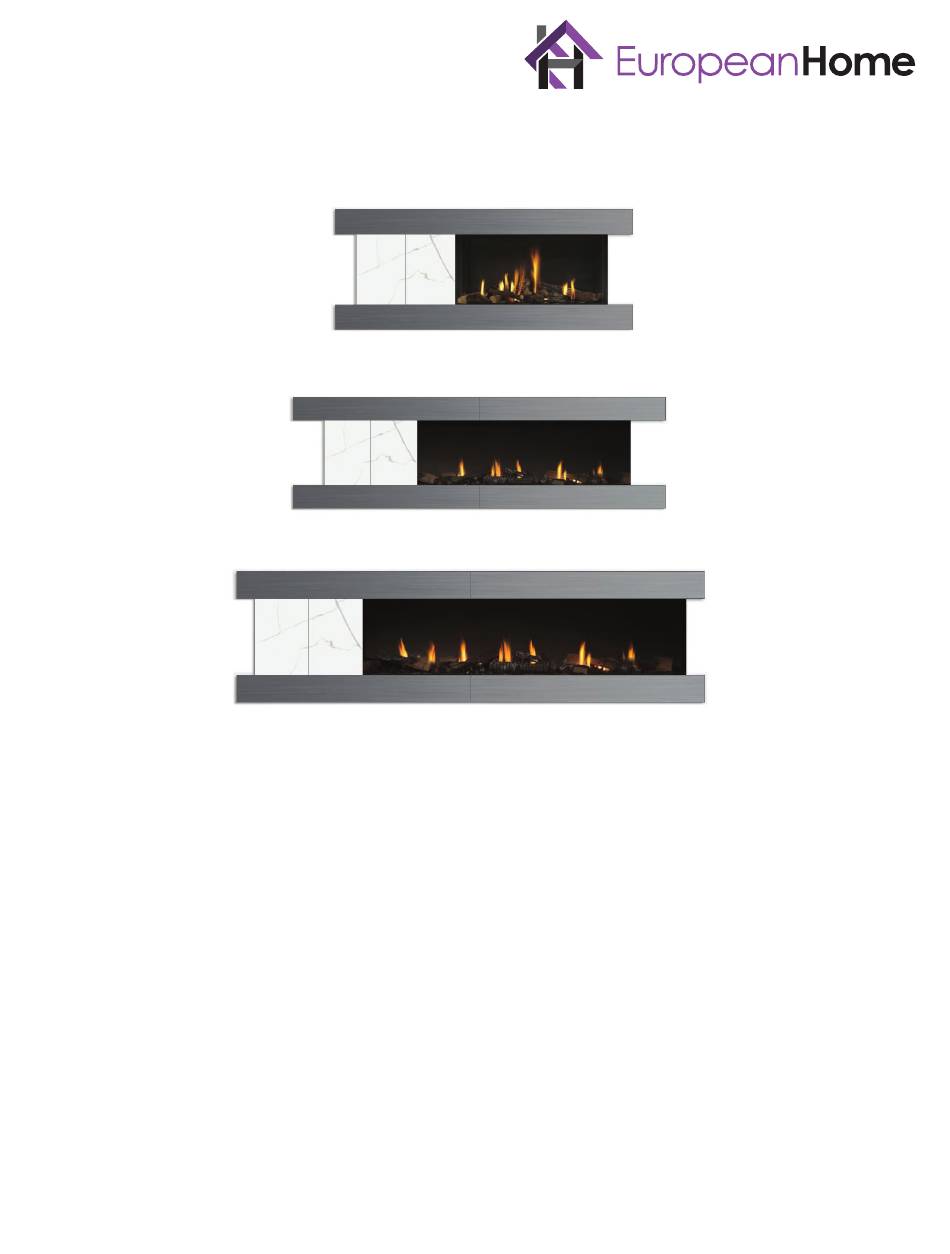

- Page 1 F U L C R U M Designer Surround Installation Guide Exclusively designed to fit these Element4 Fireplaces: Modore 95 Modore 140 Modore 185 May 2019 Element4 Modore Fireplaces EuropeanHome.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Information Specifications and Dimensions Pre-Installation Planning Installation Maintenance Warranty Element4 Modore Fireplaces EuropeanHome.com... -
Page 3: Important Information
IMPORTANT INFORMATION PRODUCT INSTALLATION RECORD Installer: Please complete this form. Customer: Please retain this information. Purchased From Date of Purchase Installed By Date of Installation Surround Serial Number Thank you for your purchase of a Designer Surround for Element4! Since your Designer Surround for Element4 is designed to install, and perform, like ceramic tile, it should be installed by a professional. - Page 4 FULCRUM SURROUND PANELS Fulcrum Tile Panel 17 1/8” 16 3/4” 16 13/16” 12” 12” 12” Fulcrum Metal Panels 6” 48” 6” 52” 6” 72” Drawing not to scale. 48” Panel 52” Panel 72” Panel 16 13/16” 16 3/4 “ Tile 17 1/8” Tile 95 Fulcrum 140 Fulcrum 185 Fulcrum...
-
Page 5: Specifications And Dimensions
SPECIFICATIONS and DIMENSIONS SPECIFICATIONS and DIMENSIONS 72” 72” Tile Tile 95 Modore Fireplace 28 13/16” 72” Fulcrum 95 96” 48” 48” 28 3/4” Tile Tile 140 Modore Fireplace 48” 48” Fulcrum 140 104” 52” 52” Tile Tile 185 Modore Fireplace 29 1/8”... -
Page 6: Pre-Installation Planning
PRE-INSTALLATION PLANNING BEFORE YOU BEGIN These surrounds are intended to be installed in the same manor you would use a french cleat system. (See image below) Please read these instructions thoroughly before proceeding. There is information which is important for safe and eff ective installation. -
Page 7: Installation
The intersection of these two lines is the starting point for the installation. 5 1/4” right of fireplace opening 6” down from fireplace Starting Layout Lines for the Fulcrum 95 Point (not to scale) 8 1/2” right of fireplace opening 6” down from fireplace... - Page 8 The metal panels and tile panels should be applied to the wall in the order shown below. They will be hung on the wall using z-clips by the system described on page 6,9,10 and 11. 4 (Metal) (Tile) (Tile) 1 (Metal) Fulcrum 95 6 (Metal) 5 (Metal) (Tile) (Tile) 2 (Metal)
- Page 9 INSTALLATION: WALL LAYOUT + Z-CLIPS NOTE ABOUT Z-CLIPS Z-clips installed on the wall should have the interlocking side facing up. The slotted side of the clips face the wall. The length of the clips is to account for contact with the existing wall stud behind the wall sheeting.
- Page 10 Red lines Represent guidelines for Z-clip, draw these in as guides for mounting. 6” 2 5/16” 2 5/16” 24” 5 1/4” 2 3/16” 6” Fulcrum 95 (not to scale) (red lines for z-clips) 6” 2 5/16” 2 5/16” 24” 8 1/2” 2 3/16”...
- Page 11 Red lines Represent guidelines for Z-clip; draw these in as guides for mounting. 6” 2 5/16” 2 5/16” 24” 5 1/4” 2 3/16” 6” Align Z-Clips to the Red Lines Fulcrum 95 not to scale 6” 2 5/16” 2 5/16” 8 1/2” 24” 2 3/16” 6”...
-
Page 12: Maintenance
MAINTENANCE SURROUND MAINTENANCE Weekly Cleaning Both the metal and tile panels should be wiped with a lint free cloth to remove any dust then wiped with a damp cloth. Element4 Modore Fireplaces EuropeanHome.com... -
Page 13: Warranty
YEARS from the date of original retail purchase. If a defect exists, European Home will, at its option, either (1) provide needed components using new or refurbished replacement parts or (2) exchange the product with one which is new or which has been manu- factured from new or serviceable used parts and is at least functionally equivalent to the original product. - Page 14 EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGHVFFS 1.0 Element4 Modore Fireplaces EuropeanHome.com...
