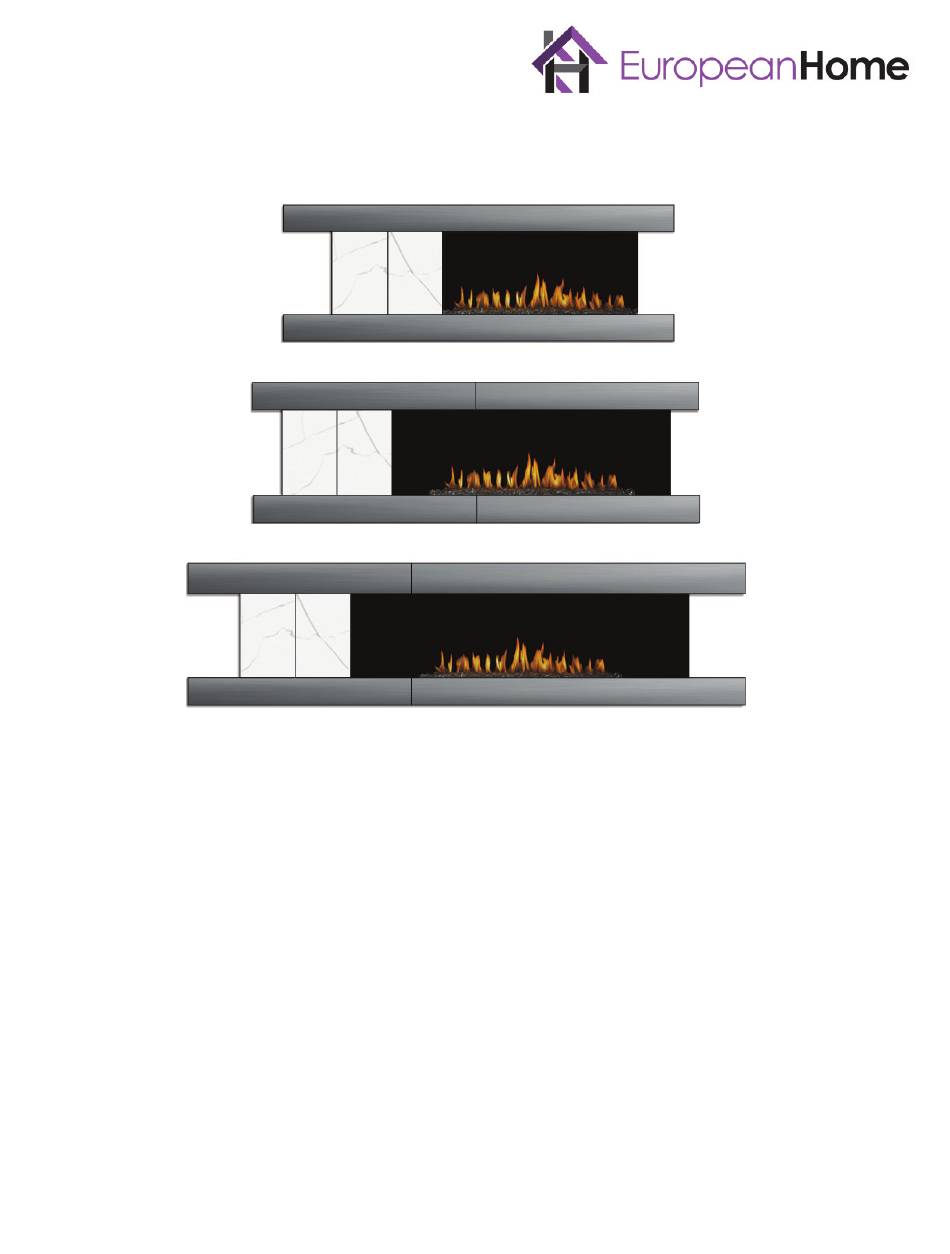

- Page 1 F U L C R U M Designer Surround Installation Guide Exclusively designed to fit these European Home H Series Fireplaces: H-42-1 H-60-1 H-72-1 H-42-ST H-60-ST H-72-ST November 2017 Designer Surround for H Series EuropeanHome.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Information Specifications and Dimensions Pre-Installation Planning Installation Maintenance Warranty Designer Surround for H Series EuropeanHome.com... -
Page 3: Important Information
IMPORTANT INFORMATION PRODUCT INSTALLATION RECORD Installer: Please complete this form. Customer: Please retain this information. Purchased From Date of Purchase Installed By Date of Installation Surround Serial Number Thank you for your purchase of a Designer Surround for H Series! Your Designer Surround for H Series is a proprietary combination of modern non-combustible materials designed to please the eye and delight the senses. - Page 4 FULCRUM SURROUND PANELS Fulcrum Tile Panel 18” 12” 6” 48” 6” 72” 6” 84” Fulcrum Metal Panels 48” Panel 72” Panel 84” Panel Tile Panel 42” Fulcrum 60” Fulcrum 72” Fulcrum Each surround contains Metal and Tile Panels according to the chart, above. All surround panels are 7/16”...
-
Page 5: Specifications And Dimensions
SPECIFICATIONS and DIMENSIONS SPECIFICATIONS and DIMENSIONS 84” Metal Tile Tile 42” H Series Fireplace 30” Metal Fulcrum 42 96” Metal Metal 30” Tile Tile 60” H Series Fireplace Metal Metal Fulcrum 60 120” Metal Metal Tile Tile 72” H Series Fireplace 30”... -
Page 6: Pre-Installation Planning
PRE-INSTALLATION PLANNING BEFORE YOU BEGIN These surrounds are intended to be installed in the same manor you would use a french cleat system. Please read these instructions thoroughly before proceeding. There is information which is important for safe and effective installation. Please inspect your shipment for completeness and any damage. -
Page 7: Installation
The intersection of these two lines is the starting point for the installation. 9” right of fireplace opening 6” down from fireplace Starting Layout Lines for the Fulcrum 42 Point (not to scale) 6” right of fireplace opening 6” down from fireplace... - Page 8 INSTALLATION INSTALLATION: WALL LAYOUT The metal panels and tile panels should be applied to the wall in the order shown below. 4 (Metal) (Tile) (Tile) 1 (Metal) Fulcrum 42 6 (Metal) 5 (Metal) (Tile) (Tile) 2 (Metal) 1 (Metal) Fulcrum 60...
- Page 9 INSTALLATION: WALL LAYOUT + Z-CLIPS NOTE ABOUT Z-CLIPS Z-clips installed on the wall should have the interlocking side facing up. The slotted side of the clips face the wall. The length of the clips is to account for contact with the existing wall stud behind the wall sheeting.
- Page 10 Red lines Represent guidelines for Z-clip, draw these in as guides for mounting. 6” 2 5/16” 2 5/16” 24” 9” 33” 2 3/16” 6” Layout Lines for the Fulcrum 42 (not to scale) (red lines for z-clips) 6” 2 5/16” 2 5/16” 24” 6” 30” 2 3/16”...
- Page 11 INSTALLATION Using the starting point and the edges of the fireplace, mark lines on the wall using the measurements appropriate to your model, below. Red lines Represent guidelines for Z-clip; draw these in as guides for mounting. 6” 2 5/16” 2 5/16”...
-
Page 12: Maintenance
MAINTENANCE SURROUND MAINTENANCE Weekly Cleaning Both the metal and tile panels should be wiped with a lint free cloth to remove any dust then wiped with a damp cloth. Yearly Cleaning Both the metal and tile panels should be wiped with a lint free cloth to remove any dust then wiped with a damp cloth. -
Page 13: Warranty
YEAR from the date of original retail purchase. If a defect exists, European Home will, at its option, either (1) provide needed components using new or refurbished replacement parts or (2) exchange the product with one which is new or which has been manu- factured from new or serviceable used parts and is at least functionally equivalent to the original product. - Page 14 EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGHVFFS 1.0 Designer Surround for H Series EuropeanHome.com...
