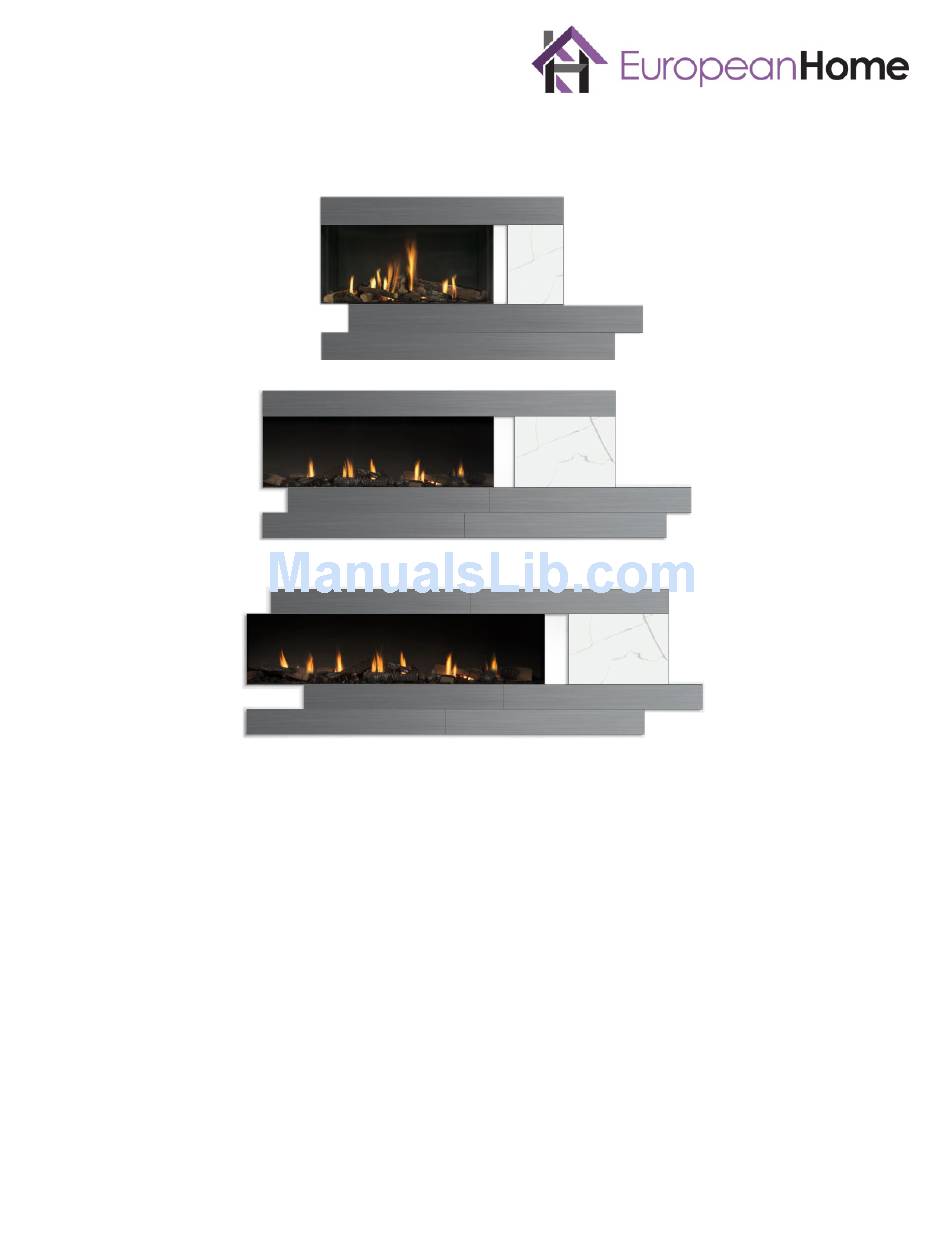

- Page 1 J o i s t Designer Surround Installation Guide Exclusively designed to fit these Element 4 Modore Fireplaces: August 2018 Element4 Modore Fireplaces EuropeanHome.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Information Specifications and Dimensions Pre-Installation Planning Installation Maintenance Warranty Element4 Modore Fireplaces EuropeanHome.com... -
Page 3: Important Information
IMPORTANT INFORMATION PRODUCT INSTALLATION RECORD Installer: Please complete this form. Customer: Please retain this information. Purchased From Date of Purchase Installed By Date of Installation Surround Serial Number Thank you for your purchase of a Designer Surround for Element4! Since your Designer Surround for Element4 is designed to install, and perform, like ceramic tile, it should be installed by a professional. - Page 4 JOIST SURROUND PANELS Joist Tile Panels 16 13/16” 16 3/4” 17 1/8” 24” 12” 12” Joist Metal Panels 6” 52” 6” 63” 6” 84” 6” 96” 52” Metal 63” Metal 84” Metal 96” Metal 16 13/16” Tile 16 3/4” Tile 17 1/8”...
-
Page 5: Specifications And Dimensions
SPECIFICATIONS and DIMENSIONS SPECIFICATIONS and DIMENSIONS 72” 52” 95 Fireplace Tile Tile 34 13/16” 63” 63” 105” 84” 34 3/4” 140 Fireplace Tile 96” 96” 118” 96” 185 Fireplace Tile 35 1/8” 52” 52” 52” 52” Element4 Modore Fireplaces EuropeanHome.com... -
Page 6: Pre-Installation Planning
PRE-INSTALLATION PLANNING BEFORE YOU BEGIN These surrounds are intended to be installed in the same manner as a french cleat system. (See image below) Please read these instructions thoroughly before proceeding. There is information which is important for safe and effective installation. Please inspect the shipment for completeness and any damage. -
Page 7: Installation
The intersection of these two lines is the starting point for the installation. 25” right of fireplace opening 12” down from fireplace Starting Point Layout Lines for the Joist 95 (not to scale) 40” right of fireplace opening 12” down from fireplace Starting Point... - Page 8 6,9,10 and 11. 4 (Metal) 3 (Tile) Tile 95 Fireplace 8 1/4” 1 (Metal) 2 (Metal) Joist 95 4 (Metal) 140 Fireplace 3 (Tile) 10” 1 (Metal) 2 (Metal) Joist 140...
- Page 9 INSTALLATION: WALL LAYOUT + Z-CLIPS NOTE ABOUT Z-CLIPS Z-clips installed on the wall should have the interlocking side facing up. The slotted side of the clips face the wall. The length of the clips is to account for contact with the existing wall stud behind the wall sheet- ing.
- Page 10 Red lines Represent guidelines for Z-clip; draw these in as guides for mounting. 6” 2 5/16” 2 5/16” 24” 12” 2 3/16” 6” 2 3/16” 6” Layout Lines for the Joist 95 (not to scale) 6” 2 5/16” 2 5/16” 24” 24” 2 3/16” 6” 2 3/16”...
- Page 11 6” 2 5/16” 2 5/16” 24” 12” 2 3/16” 6” 2 3/16” 6” Align Z-Clips to the Red Lines Layout Lines for the Joist 95 (not to scale) 6” 2 5/16” 2 5/16” 24” 24” 2 3/16” 6” 2 3/16”...
-
Page 12: Maintenance
MAINTENANCE SURROUND MAINTENANCE Weekly Cleaning Both the metal and tile panels should be wiped with a lint free cloth to remove any dust then wiped with a damp cloth. Yearly Cleaning Both the metal and tile panels should be wiped with a lint free cloth to remove any dust then wiped with a damp cloth. -
Page 13: Warranty
YEARS from the date of original retail purchase. If a defect exists, European Home will, at its option, either (1) provide needed components using new or refurbished replacement parts or (2) exchange the product with one which is new or which has been manu- factured from new or serviceable used parts and is at least functionally equivalent to the original product. - Page 14 EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGHVFJS 1.0 Element4 Modore Fireplaces EuropeanHome.com...
