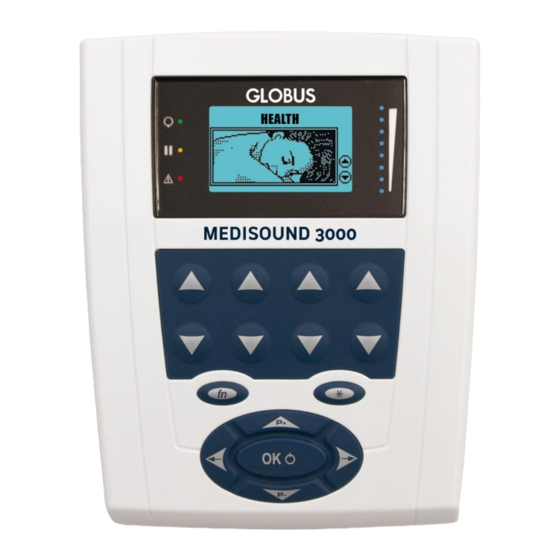

Globus MEDISOUND 3000 User Manual
  1. Manuals
  2. Brands
  3. Globus Manuals
  4. Medical Equipment
  5. MEDISOUND 3000
  6. User manual

Globus MEDISOUND 3000 User Manual

Hide thumbs Also See for MEDISOUND 3000:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEDISOUND 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Globus MEDISOUND 3000

Summary of Contents for Globus MEDISOUND 3000

  • Page 2 Rev. n° 03 - 08.03.2021...
  • Page 3 DEAR CUSTOMER THANK YOU FOR CHOOSING A GLOBUS PRODUCT. WE REMAIN AT YOUR ENTIRE DISPOSAL FOR ANY ASSISTENCE OR ADVICE YOU MAY NEED DOMINO s.r.l. via Vittorio Veneto 52 31013 - Codognè - TV - Italy Tel. (+39) 0438.7933 Fax. (+39) 0438.793363 e-mail: info@globusitalia.com...

  • Page 4: Table Of Contents

    Table of contents TECHNICAL FEATURES ............................... 5 Device .................................... 5 Transducer ..................................5 Power supply ................................. 5 Battery (optional) ................................5 Use and storage conditions............................5 INTENDED USE OF THE DEVICE ............................6 DEVICE CLASSIFICATION ..............................6 SAFETY PRECAUTIONS ............................... 6 Warnings before the use ...............................

  • Page 5: Technical Features

    TECHNICAL FEATURES Device Case: ABS food grade Protection level of the case: IP 20 Dimensions: 170x220x60 Weight: about 1000 g. Certifications CE MDD certificate Transducer Transducer: Head Ø 4.2 cm. Transducer emission: continuous, pulsed. Emission frequency: 1- 3 MHz Duty Cycle: 10%-100% Maximum power: 3 W/cm²...

  • Page 6: Intended Use Of The Device

    INTENDED USE OF THE DEVICE Medisound 3000 is not intended for domestic use, and it has been conceived to be used in the following operating environments: - clinics; - physiotherapy centers; - rehabilitation in general; - general pain treatments (medical sector).

  • Page 7: Warnings Before The Use

    Read carefully the entire operating manual before using the device; keep this manual with care. The unit must be used only with the diffusers provided with the original equipment (or Globus brand) and according to the therapeutic methods described.

  • Page 8: Contraindications

    To purchase these accessories, please contact your dealer. Accessories not included: - Ref. G1120 rechargeable battery (Ni-MH 12 V 4Ah) - Ref. G5516 Handpiece 16 mm for Medisound 3000 DEVICE OPERATION In order to start the device, the following elements must be connected. Pay particular attention to avoid damage to the connections.

  • Page 9: Device

    Handpiece To connect the handpiece to the device, plug the connector in the intended inlet on the back of the unit (see picture). The part of the connector with the word Globus must be kept upwards. Accessories (rechargeable battery) The device can be powered with a set of rechargeable nickel-metal hydride batteries (12Vdc 4000mAh) with high performances and without memory effect (the rechargeable batteries are optional).

  • Page 10: Device Description

    DEVICE DESCRIPTION The execution screen on the device display will be explained below. Name of the program Duty % 0.20 W/cm² 1 - Indicates the name of the selected program 2 - Indicates the duty cycle used in the selected program 3 - Power in Watts per cm²...

  • Page 11: Device Use

    DEVICE USE Automatic calibration of the handpieces Each time the machine is switched on, it automatically carries out the head calibration procedure. Note: at start-up, the head must be clean, dry and free in the air (not in contact with any object or surface).

  • Page 12: Creating A New Program

    Creating a new program Follow the flow chart: The saved programs will be stored in My Programs. Press fn to delete a saved program. Settings By selecting Settings you access the menus to adjust the following functions: • Acoustic signals •...
  • Page 13 Acoustic signals If the acoustic signal function is on (ON) the device emits a tone when buttons are pressed. Rev. n° 03 - 08.03.2021...

  • Page 14: Program List

    Automatic shutdown It allows to set the time after which, if not used, the machine switches off. It is possible to select a value between 1 and 20 minutes. Use P+ and P- to select and confirm with the Ok button. Contrast Use the arrows to improve the contrast of the display and better read the information displayed.
  • Page 15 List of Aesthetic programs (non-medical treatments) Name of the program Recommended power Edematous cellulite 1 - 2 Watt/cm2 Fibrous cellulite 1 - 2 Watt/cm2 Lipolysis 1 - 2 Watt/cm2 Hypotonie 1 - 2 Watt/cm2 Stretch marks 1 - 2 Watt/cm2 Orange peel skin 1 - 2 Watt /cm2 Skin smoothing...

  • Page 16: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Maintenance and cleaning of the device In case of actual or alleged malfunctioning, do not tamper with the device do not try to repair it by yourself. Do not try to repair the device and do not open it. Only specialized and authorized centers can repair Avoid violent impacts, which may damage the device and lead to malfunctioning even if not immediately detectable.

  • Page 17: Application Method

    APPLICATION METHOD Specific health applications The therapeutic effects of ultrasound are partly due to the increase in temperature. They include analgesia, the fibrolytic effect and the trophic effect. a) Analgesia The analgesic effect is due to the heat and probably also to a direct action of the ultrasound on the sensitive nervous terminations.

  • Page 18: Direct Contact Method

    considerable and generate important mechanical effects inside the tissues. The mechanical modifications induced by ultrasounds determine: a) Acceleration of the processes of diffusion through cellular membranes. b) Scission of complex molecules (proteins, polysaccharides, etc). c) Tissue micromassage Thermal effects: the passage of ultrasounds through "the soft" tissues creates an increase in temperature with: - the absorption linked to viscosity, - the absorption induced by thermal conductivity and chemical absorption.

  • Page 19: Symbols And Labeling

    In a treatment with non-degassed water, the lowering of the ultrasound power is greater than in the direct contact treatment, so a higher dosage is required. When you use gas-free water, instead, the dosage has to be the same as in the contact treatment. Recommended intensity The device starts from a preset intensity of 0.0 Watt/cm2 and can reach a maximum power that depends on each protocol.
  • Page 20 Output: 3 ± 20% W/cm Pulse Duration: 100ms–900ms Waveform: Continued – Pulsed Duty factor: 10% to 100% Ultrasound: MEDISOUND 3000 SN: MS3191701234 Internal Battery: 12 V NiMH 4000 mAh The first 4 digits of the serial number indicate the week and year of manufacture of the device you purchased (for example, if the code is *** 2319 *****, it means that the device was manufactured in week 23 of 2019).

  • Page 21: Sound And Light Signals And Alarms

    SOUND AND LIGHT SIGNALS AND ALARMS Annex 2: the sound signals comply with directive 60601-1-8 (CE MDD Certifications). Correct power emission The treatment is carried out correctly Cable not connected Check that the cable is connected to the right output Device in pause Press OK to continue the treatment.

  • Page 22: Warranty Conditions

    N.B. Before returning the device for repairs, we suggest reading carefully the user manual and consulting the Globus website. If you have to return the product for repair, please contact your dealer or the Globus customer service. Rev. n° 03 - 08.03.2021...

  • Page 23: Emc Accompanying Documents

    EMC accompanying documents "WARNING: The use of accessories, transducers and cables other than those specified or supplied by the manufacturer of this equipment may lead to increased electromagnetic emissions or a decrease in the electromagnetic immunity level of this device, resulting in incorrect operation. " NOTE: The EMISSION characteristics of this device make it suitable for use in industrial and hospital environments (class A of CISPR 11).
  • Page 24 Loading machine Setting data Impaired operation. The machine must check the settings. memory error. correctness of the setting data and, in the event of errors, it must load the default settings present in copy in the memory and indicate on the display that the reset has been carried out.
  • Page 25 Rev. n° 03 - 08.03.2021...
  • Page 26 Rev. n° 03 - 08.03.2021...
  • Page 27 Rev. n° 03 - 08.03.2021...
  • Page 28 Rev. n° 03 - 08.03.2021...
