Altronix VertiLine8 Series Installation Manual page 7

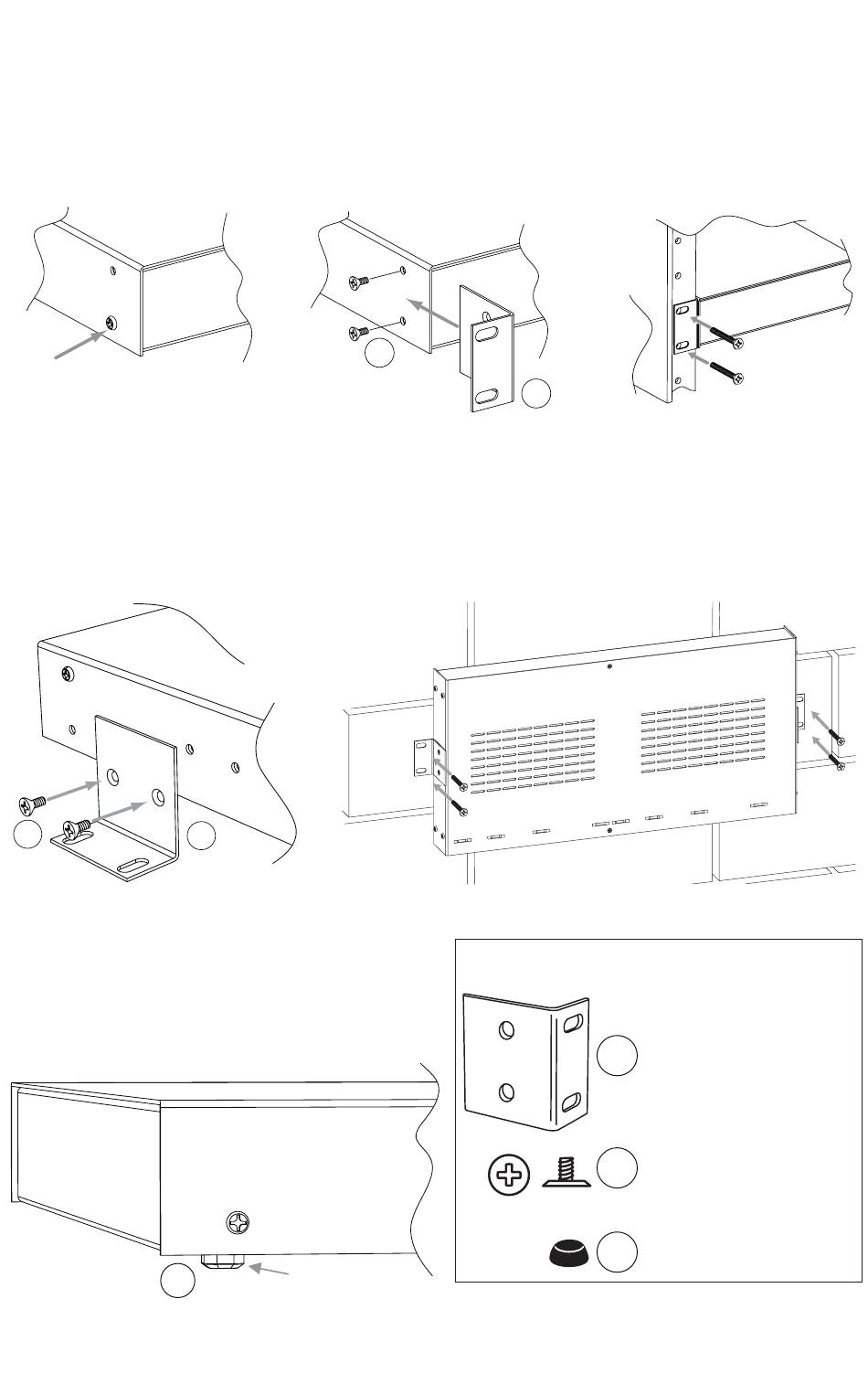

Rack Mount Installation
1. Remove factory installed screws from both sides of the rack chassis (Fig. 4a) .
2. Install mounting brackets (A) on the left and right side of rack chassis using the
two (2) flat head screws (B) (included) (Fig. 4b) .
3. Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 4c).
Fig. 4
Fig. 4a
Top
Front
Left
Remove
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Wall Mount Installation
1. Install mounting brackets (A) on the left and right side of rack chassis using
two (2) flat head screws (B) (included) (Fig. 5a) .
2. Place unit at desired location and secure with mounting screws (not included) (Fig. 5b).
Caution: It is necessary to make sure mounting screws are securely fastened to a beam when installing.
Fig. 5
B
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Shelf Installation
1. Position and affix rubber pads (C) (included) at
each corner on the bottom of the unit (Fig. 6) .
2. Place unit in desired location.
Fig. 6
C
VertiLine8 Series Installation Guide
Mounting Options:
Fig. 5a
A
Left Side
Rubber Pad
Fig. 4b
Top
B
A
Mounting Hardware (Included):
Front
Left
Fig. 5b
A
Two (2) mounting brackets
Six (6) flat head screws
B
for mounting brackets.
C
Four (4) rubber pads.
Fig. 4c
Top
Front Left
- 7 -
