Model/Modelo/Modèle
65098LF▲, 65098LF▲-ECO
Series/Series/Seria
Levoir™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
▲
Specify Finish / Especifíque el Acabado / Précisez le Fini
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de déb-
uter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com
100846
1/8" (3.17mm)
®
®
100846
1

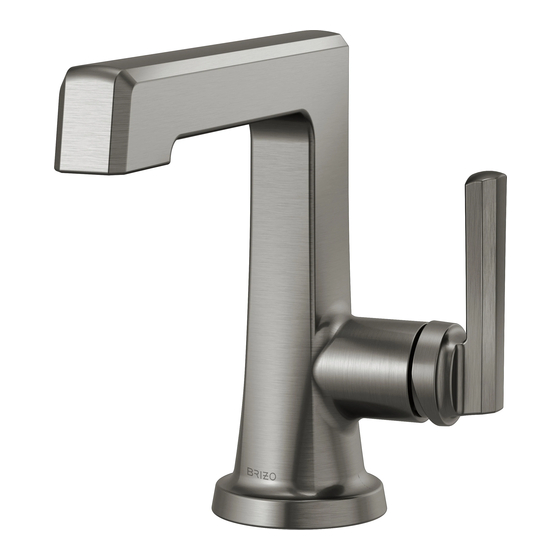

SINGLE HANDLE LAVATORY FAUCET
LLAVE DE AGUA DE UNA MANIJA
PARA LAVAMANOS
ROBINET À UNE MANETTE POUR
LAVABO
09/15/2022
Rev. C
Advertisement
Related Manuals for Brizo Levoir 65098LF ECO Series
Summary of Contents for Brizo Levoir 65098LF ECO Series
- Page 1 Specify Finish / Especifíque el Acabado / Précisez le Fini You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin: 1/8" (3.17mm) For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
- Page 2 1 1/2" (38 mm) 1 1/2 po 1 1/4" (31.8 mm) - 1 1/2" (38 mm) 1 1/4 po - 1 1/2 po Diameter Hole Lavatory Faucet Installation MAKE CONNECTIONS TO WATER LINES: Note: This faucet fits 1 1/4 " min. mounting hole size. When drilling a new hole, 1 1/2 " is recommended.
- Page 3 Metal Pop-Up Remove pivot nut (1). Install horizontal rod Apply silicone to underside of flange (1). Insert Remove stopper (1) and flange (2). (2) and stopper (3) as removable (4) or non- body (2) into sink. Screw flange (1) into body (2). removable (5).
-
Page 4: Maintenance
Maintenance If faucet leaks from under handle: Remove handle (1) and cap (2). Note: To remove cap (2), pry it off with your fingernail or a small knife. Ensure bonnet nut (3) is tight. Replace valve cartridge (4) RP92349*. If faucet leaks from spout outlet: SHUT OFF WATER SUPPLIES. Replace valve cartridge (4) RP92349*. -
Page 5: Cleaning And Care
CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. LIMPIEZA Y CUIDADO DE SU LLAVE Tenga cuidado al ir a limpiar este producto. - Page 6 Brizo Kitchen & Bath Company Masco Canada Limited, Plumbing Group application” refers to the purchase of the faucet from an authorized Brizo seller by a purchaser who owns but does not live in the residential 55 E. 111th Street Technical Service Centre...
