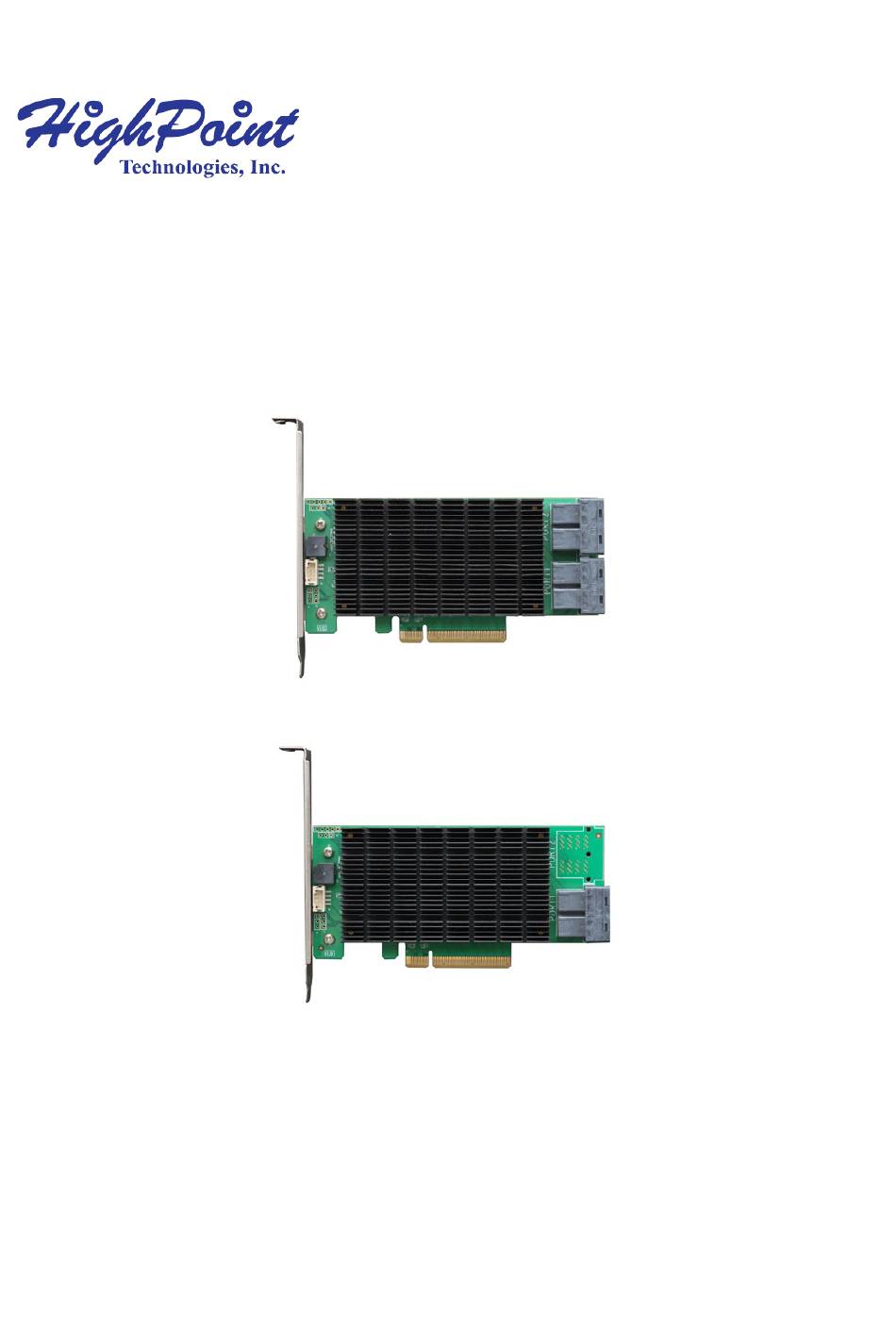

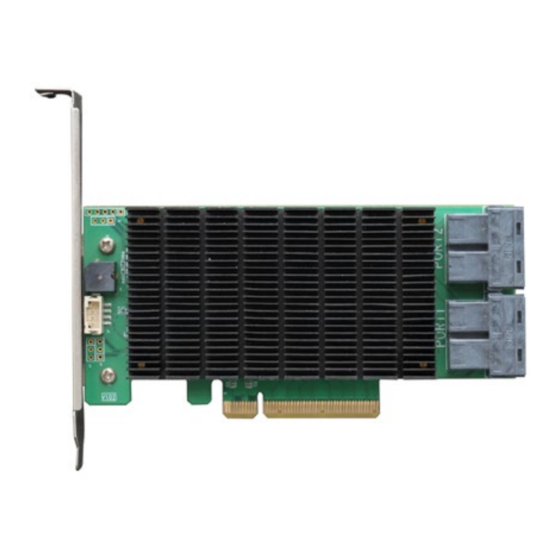

- Page 1 RR3740/3720/2840/840 PCI-Express 3.0 x8 RAID Controller RR3740/2840/840 RR3720 Quick Installation Guide v1.02...
- Page 2 RR3740/3720/2840/840 Kit Contents • RAID Controller Card • Low Profile Bracket • Quick Installation Guide Operating System • Windows 11,10, 8, 7 / Server 2022, 2019, 2016, 2012R2, 2008 / Microsoft Hyper-V • RHEL/Ubuntu/Debian/Fedora/Proxmox (Linux kernel 3.10 and later) • Arch Linux (Kernel 5.17.5 and above)
-
Page 3: Required Accessories
For more information, please contact our Sales Department (sales@highpoint-tech.com). 1. In order to use SATA drives with the RR3740/3720/2840/840 R AID controller, you will need at least one 8643-4SATA-1M ca ble. Each cable can support four SATA hard drives or SSD’s via an SFF-8643 port. -
Page 4: Front View
RR3740/2840/840 Hardware Front View Channels 13-16 Channels 9-12 Channels 5-8 Channels 1-4 RR3720 Hardware Front View Channels 5-8 Channels 1-4... - Page 5 RR3740/3720/2840/840 Hardware Installation Note: Make sure the system is powered-off before installing the RAID Controller. 1. Connect the RR3740/3720/2840/840 into the PCIe 3.0/ 4.0 x8 or x16 slot of the motherboard; 2. How to connect disks to the RR3740/3720/2840/840 using the 8643- 4SATA-1M cable.
- Page 6 3. How to connect disks to the RR3740/3720/2840 using the 8643- 4SAS-1M cable. Each cable can support up to four SAS/SATA hard drives or SSDs via an SFF-8643 port. SAS Power Connector SATA/SAS Drivers...
- Page 7 Optional Certified Cable Accessories Device Cables 8643-4SAS-1M 1M SFF-8643 SAS to 4x SFF-8482 SAS cable Length: 1M 8643-4SATA-1M SFF-8643 SAS to 4x SATA cable, with Power Connector Length: 1M...
- Page 8 Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation and more information about this product, please visit the following website: RR3700: https://www.highpoint-tech.com/rr3700-overview RR800: https://www.highpoint-tech.com/rr800-overview RR2800: https://www.highpoint-tech.com/rr2800-overview Certified Accessories: https://www.highpoint-tech.com/rr-accessories FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com)
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the RAID controllers, or have any questions about HighPoint Technologies, Inc. products & solutions, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: http://www.highpoint-tech.com © Copyright 2022 HighPoint Technologies, Inc. All rights reserved.
