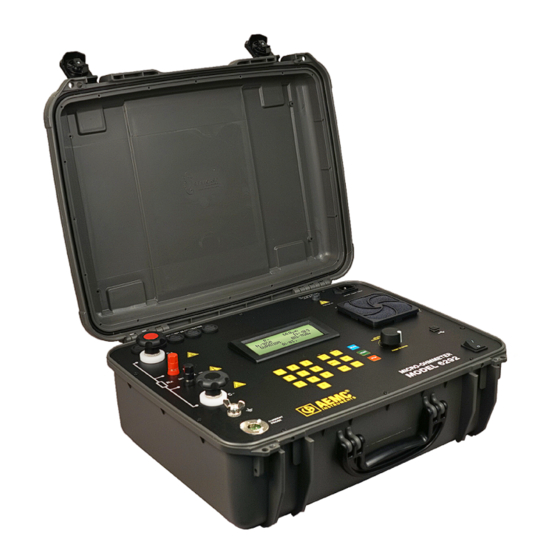

- Page 1 Quick Start Guide ENGLISH Micro-Ohmmeter Model 6292 MICRO-OHMMETERS WITH AEMC INSTRUMENTS ®...
- Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
- Page 3 For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com/calibration. Serial #: Catalog #: 2129.83 Model #: 6292 Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: Chauvin Arnoux , Inc. ®...
- Page 4 PRODUCT PACKAGING Large Classic Tool Bag Micro-Ohmmeter Model 6292 USB Cable (5 ft) Cat. #2133.71 Cat. #2129.83 Cat. #2140.46 Power Cord, 110V US Set of Two, 25 ft Kelvin Clips (200A - Hippo) Cat. #5000.40 Cat. #2129.72 (1) 4 GB USB Drive Green Ground Lead w/ Clamp Cat.
- Page 5 Example: hardwired equipment in fixed installation and circuit breakers. CAT II: Corresponds to measurements performed on circuits directly connected to the electrical distribution system. Example: measurements on household appliances and portable tools. Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 6 The instrument, test leads, and measuring wires must be free of defects ƒ and should be changed if there is any evidence of deterioration (insulation split, burnt, etc.). Never exceed the safety values indicated in the specifications. ƒ Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 7 (+9 V 2. Negative supply for the current probe (Gnd) 3. Not connected 4. Current probe output signal (+) 5. Current probe output signal (-) NOTE: The positive supply can supply 80 mA maximum. Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 8 Keypad and Function Buttons The Model 6292 can be operated and configured using the alphanumeric keypad. The keypad enables you to name objects (groups of tests) and enter the date/time, and the function buttons let you select a number of configuration settings.
- Page 9 NOTE: For more information on using the DataView software, refer to ® the Model 6292 user manual that is supplied on the USB stick. Getting Started WARNING: Read the user manual and safety warnings before using this instrument. Safety procedures and rules for working near high voltage energized systems must be observed during the use of this instrument.
- Page 10 The instrument name should appear in the Communication port field. If not, select it from the drop-down list. Ensure that the Instrument model field is set to 6292, and the Communication rate is set to 57600. Then, click OK. Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 11 Language specifies the language to be used by the instrument’s display. ƒ Auto Save specifies whether or not a test is automatically saved at the ƒ time it is performed. Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 12 Control Panel. NOTE: For complete operating instructions and more information on using the DataView software, refer to the product user manual that is ® supplied on the USB stick. Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 13 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Phone: (800) 343-1391 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com www.aemc.com Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 14 Phone: (800) 945-2362 (Ext. 360) / (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend that you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. Micro-Ohmmeter Model 6292 - Quick Start Guide...
- Page 15 NOTES:...
- Page 16 06/23 99-MAN 100394 v10 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • (800) 343-1391 • Fax: (603) 742-2346 www.aemc.com © 2013 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ® ®...
