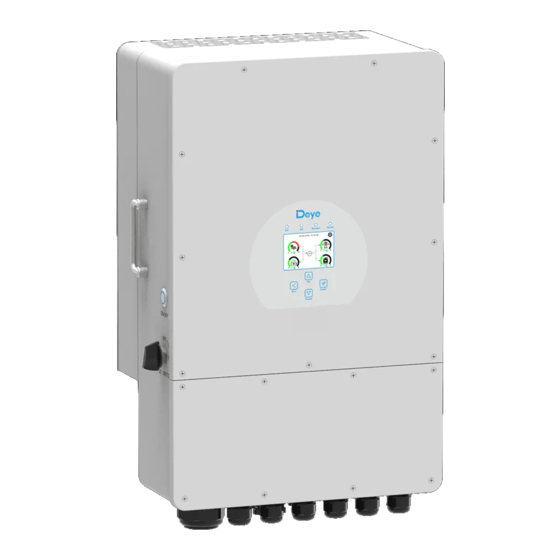

Deye SUN-5K-SG04LP3-AU User Manual

Hide thumbs Also See for SUN-5K-SG04LP3-AU:
Table of Contents

Advertisement

Quick Links

Hybrid Inverter
SUN-5K-SG04LP3-AU
SUN-6K-SG04LP3-AU
SUN-8K-SG04LP3-AU
SUN-10K-SG04LP3-AU
SUN-12K-SG04LP3-AU
User Manual
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUN-5K-SG04LP3-AU and is the answer not in the manual?

Questions and answers

Related Manuals for Deye SUN-5K-SG04LP3-AU

Summary of Contents for Deye SUN-5K-SG04LP3-AU

  • Page 1 Hybrid Inverter SUN-5K-SG04LP3-AU SUN-6K-SG04LP3-AU SUN-8K-SG04LP3-AU SUN-10K-SG04LP3-AU SUN-12K-SG04LP3-AU User Manual...

  • Page 2: Table Of Contents

    Contents Contents 1. Safety Introductions ………………………………………………… 2. Product instructions 01-04 ………………………………………………… 2.1 Product Overview 2.2 Product Size 2.3 Product Features 2.4 Basic System Architecture 2.5 Maintenance of the System 3. Installation 05-23 …………………………………………………………… 3.1 Parts list 3.2 Mounting instructions 3.3 Battery connection 3.4 Grid connection and backup load connection 3.5 PV Connection 3.6 CT Connection...

  • Page 3: Safety Introductions

    Contents may be periodically updated or revised due to product development. The information in this manual is subject to change without notice. The latest manual can be acquired via service@deye.com.cn 1. Safety Introductions · This chapter contains important safety and operating instructions. Read and keep this manual for future reference.

  • Page 4: Product Overview

    2.1 Product Overview 1: Inverter indicators 7: Meter-485 port 13: Grid 2: LCD display 8: Battery input connectors 14: Load 3: Function buttons 9: Function port 15: Generator input 4: Power on/off button 10: ModeBUS port 16: WiFi Interface 17: DRM port 5: DC switch 11: BMS port 6: Parallel port...

  • Page 5: Product Size

    2.2 Product Size Inverter Size Mounting bracket - 03 -...

  • Page 6: Product Features

    2.3 Product Features - 230V/400V Three phase Pure sine wave inverter. - Self-consumption and feed-in to the grid. - Auto restart while AC is recovering. - Programmable supply priority for battery or grid. - Programmable multiple operation modes: On grid, off grid and UPS. - Configurable battery charging current/voltage based on applications by LCD setting.

  • Page 7: Installation

    3. Installation 3.1 Parts List Check the equipment before installation. Please make sure nothing is damaged in the package. You should have received the items in the following package: Stainless steel anti-collision Hybrid inverter Wall mounting bracket x1 bolt M8×80 Parallel communication L-type Hexagon wrench Battery temperature sensor...

  • Page 8: Mounting Instructions

    3.2 Mounting instructions Installation Precaution This Hybrid inverter is designed for outdoor use(IP65), Please make sure the installation site meets below conditions: · Not in direct sunlight · Not in areas where highly flammable materials are stored. · Not in potential explosive areas. ·...
  • Page 9 ≥500mm ≥500mm For proper air circulation to dissipate heat, allow a clearance of approx. 50cm to the side and approx. 50cm above and below the unit. And 100cm to the front. Mounting the inverter Remember that this inverter is heavy! Please be careful when lifting out from the package. Choose the recommend drill head(as shown in below pic) to drill 4 holes on the wall, 52-60mm deep.

  • Page 10: Battery Connection

    3.3 Battery connection For safe operation and compliance, a separate DC over-current protector or disconnect device is required between the battery and the inverter. In some applications, switching devices may not be required but over-current protectors are still required. Refer to the typical amperage in the table below for the required fuse or circuit breaker size.
  • Page 11 All wiring must be performed by a professional person. Connecting the battery with a suitable cable is important for safe and efficient operation of the system. To reduce the risk of injury, refer to Chart 3-2 for recommended cables. Please follow below steps to implement battery connection: 1.
  • Page 12 3.3.3 Temperature sensor connection for lead-acid battery Inverter Temp. CT - 11 -...
  • Page 13 3.3.2 Function port definition Inverter CN1: TEMP: 1,2 CN2: G_start: 1,2 CT_1: 3,4 G_valve: 3,4 CT_2: 5,6 Grid_Ry: 5,6 Parallel_A Parallel_B Meter-485 CT_3: 7,8 RSD: 7+, 8- 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 ModeBUS DRM port Parallel A: Parallel communication...

  • Page 14: Grid Connection And Backup Load Connection

    3.4 Grid connection and backup load connection · Before connecting to grid, please install a separate AC breaker between inverter and grid. Also, it is recommended that installs an AC breaker between backup load and inverter.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current.The recommended of AC breaker for the load port is 20A for 8kw, 32A for 10kw and 32A for 12KW.

  • Page 15: Pv Connection

    Be sure that AC power source is disconnected before attempting to wire it to the unit. 3. Then, insert AC output wires according to polarities indicated on the terminal block and tighten terminal. Be sure to connect corresponding N wires and PE wires to related terminals as well. 4.
  • Page 16 3.5.1 PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters: 1) Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter. 2) Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage. SUN-5K- SUN-6K- SUN-8K-...
  • Page 17 Safety Hint: Please use approved DC cable for PV system. Cross section（mm ） Cable type Range Recommended value Industry generic PV cable 4.0~6.0 4.0(12AWG) (model: PV1-F) (12~10AWG) Chart 3-6 The steps to assemble the DC connectors are listed as follows: a) Strip off...
  • Page 18 Pic 3.5 connector with cap nut screwed on d) Finally insert the DC connector into the positive and negative input of the inverter, shown as picture 5.6 Pic 3.6 DC input connection Warning: Sunlight shines on the panel will generate voltage, high voltage in series may cause danger to life.

  • Page 19: Ct Connection

    3.6 CT Connection Inverter GRID Black wire White wire 6 7 8 Arrow pointing inverter Grid *Note：when the reading of the load power on the LCD is not correct, please reverse the CT arrow. - 17 -...

  • Page 20: Meter Connection

    3.6.1 Meter Connection GRID Inverter Parallel_A Parallel_B Meter-485 port Three-Phase Smart Meter RS485A Grid RS485B Three-Phase Smart Meter (1,4,7,10) (3,6,9,10) RS 485 CHINT meter CHNT DTSU666 GRID Inverter Parallel_A Parallel_B Meter-485 port RS485B RS485A 1 2 3 4 5 6 7 8 Eastron Grid (1,2,3,4)

  • Page 21: Earth Connection(Mandatory)

    Note: When the inverter is in the off-grid state, the N line needs to be connected to the earth. Note: Inverter has built-in leakage current detection circuit,If an external RCD is required, a type-A RCD with rated residual current of 300mA or higher is suggested.otherwise inverter may not work properly.

  • Page 22: Wiring System For Inverter

    3.9 Wiring System for Inverter - 20 -...

  • Page 23: Wiring Diagram

    3.10 Wiring diagram L wire N wire PE wire Ground Inverter ①DC Breaker Battery pack ②AC Breaker ③AC Breaker CT1 CT2 Grid ④AC Breaker Home Load ① DC Breaker for battery SUN 5K-SG-AU: 150A DC breaker Backup Load SUN 6K-SG-AU: 200A DC breaker SUN 8K-SG-AU: 250A DC breaker SUN 10K-SG-AU:300A DC breaker SUN 12K-SG-AU:300A DC breaker...

  • Page 24: Typical Application Diagram Of Diesel Generator

    3.11 Typical application diagram of diesel generator L wire N wire PE wire coil relay open contact Backup Load ②AC GS (diesel generator startup signal) Breaker G-start (1,2): dry contact signal for startup the diesel generator. GR ID LOA D G EN Ground Inverter...

  • Page 25: Phase Parallel Connection Diagram

    3.12 Three phase parallel connection diagram L wire N wire PE wire Inverter No.3 Parallel_A Parallel_B Meter-485 (slave) Ground Inverter ① Inverter ④ ⑤ No.2 (slave) Ground ⑦ ② ⑥ Inverter No.1 (master) Ground ③ ⑨ ⑧ Battery pack CT1 CT2 Grid R S T ⑩...

  • Page 26: Operation

    4. OPERATION 4.1 Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off button(located on the left side of the case) to turn on the unit. When system without battery connected, but connect with either PV or grid, and ON/OFF button is switched off, LCD will still light up(Display will show OFF), In this condition, when switch on ON/OFF button and select NO battery,system can still working.(NOTE: Choose the correct country code.

  • Page 27: Lcd Display Icons

    5. LCD Display Icons 5.1 Main Screen The LCD is touchscreen, below screen shows the overall information of the inverter. 05/28/2019 15:34:40 8.30 -3.00 -2.00 3.00 1.The icon in the center of the home screen indicates that the system is Normal operation. If it turns into "comm./F01~F64"...
  • Page 28 5.1.1 LCD operation flow chart Solar Page Solar Graph Grid Page Grid Graph Inverter Page Main Screen Battery Page BMS Page Load Page Load Graph Battery Setting System Work Mode Grid Setting System Setup Gen Port Use Basic Setting Advanced Function Device info - 26 -...

  • Page 29: Solar Power Curve

    5.2 Solar Power Curve Solar This is Solar Panel detail page. ③ ① ① Solar Panel Generation. Power: 1560W Today=8.0 KWH Voltage, Current, Power for each MPPT. ② ② PV1-V: 286V PV2-V: 45V Total =12.00 KWH ③ Solar Panel energy for Day and Total. PV1-I: 5.5A PV2-I: 0.0A PV1-P: 1559W PV2-P: 1W...

  • Page 30: Curve Page-Solar & Load & Grid

    Li-BMS Mean Voltage:50.34V Charging Voltage :53.2V Batt Total Current:55.00A Discharging Voltage :47.0V Data Mean Temp :23.5C Charging current :50A Total SOC :38% Discharging current :25A Discharge Dump Energy:57Ah Details Data U:49.58V I:2.04A Li-BMS Power: 101W Charge Volt Curr Temp Energy Fault Volt Curr...

  • Page 31: System Setup Menu

    5.4 System Setup Menu System Setup This is System Setup page. System Work Mode Battery Setting Gen Port Grid Setting Basic Advanced Device Info. Setting Function 5.5 Basic Setup Menu Basic Setting Factory Reset: Reset all parameters of the inverter. Lock out all changes: Enable this menu for setting Time Syncs Beep...

  • Page 32: Battery Setup Menu

    5.6 Battery Setup Menu Battery Setting Battery capacity: it tells Deye hybrid inverter to know your battery bank size. Batt Mode Use Batt V: Use Battery Voltage for all the settings (V). Lithium 400Ah Batt Capacity Batt Mode Use Batt %: Use Battery SOC for all the settings (%).
  • Page 33 Generator This page tells generator output voltage, frequency, power. And, how much energy is used from generator. Power: 6000W Today=10 KWH Total =10 KWH P_L1: 2KW V_L1: 230V P_L2: 2KW V_L2: 230V P_L3: 2KW V_L3: 230V Battery Setting Lithium Mode: This is BMS protocol.Please reference the document(Approved Battery).

  • Page 34: System Work Mode Setup Menu

    Recommended battery settings Torque value Battery Type Absorption Stage Float Stage (every 30 days 3hr ) AGM (or PCC) 14.2v (57.6v) 13.4v (53.6v) 14.2v(57.6v) 14.1v (56.4v) 13.5v (54.0v) 14.7v (59.0v) 13.7v (55.0v) 14.7v(59.0v) Lithium Follow its BMS voltage parameters 5.7 System Work Mode Setup Menu System Work Mode Work Mode Selling First: This Mode allows hybrid inverter to sell...
  • Page 35 Solar Sell: “Solar sell” is for Zero export to load or Zero export to CT: when this item is active, the surplus energy can be sold back to grid. When it is active, PV Power source priority usage is as follows: load consumption and charge battery and feed into grid.

  • Page 36: Grid Setup Menu

    5.8 Grid Setup Menu Grid Setting This menu is where you can select the country grid parameters.For example: Grid Mode • INMETRO • EN50549-1 Australia A 1/13 Grid • EN50438 • IEC61727 • VDE_4105 Set1 • UTE_C15 • RD_1699 • CEI_0_21 •...
  • Page 37 Default volt-var settings for different regions are shown in the following table: Voltage 220V 240V 207V 258V Australia A Inverter maximum active 44%supplying 60%absorbing power output level(P) % of S rated Voltage 220V 235V 205V 255V Australia B Inverter maximum active 30%supplying 40%supplying power output level(P) % of S...

  • Page 38: Generator Port Use Setup Menu

    5.9 Generator Port Use Setup Menu GEN PORT USE Generator input rated power: allowed Max. power from diesel generator. Mode GEN connect to grid input: connect the diesel generator to the Generator Input GEN connect to Grid input grid input port. PORT Rated Power Smart Load Output: This mode utilizes the Gen input connection...

  • Page 39: Advanced Function Setup Menu

    5.10 Advanced Function Setup Menu Advanced Function Solar Arc Fault ON: This is only for US. System selfcheck: Disable. this is only for factory. Solar Arc Fault ON Backup Delay Gen Peak-shaving: Enable When the power of the generator exceeds the rated value of it, the inverter will Func Clear Arc_Fault provide the redundant part to ensure that the generator...

  • Page 40: Device Info Setup Menu

    5.11 Device Info Setup Menu Li-BMS Li-BMS Device Info. This page show Inverter ID, Inverter version and alarm Inverter ID: 2102199870 Flash SUN-12K Charge Charge Volt Volt Curr Curr Temp Temp Energy Energy Fault Fault codes. HMI: Ver 1001-8010 MAIN:Ver2002-1046-1707 Volt Volt Curr...

  • Page 41: Limitation Of Liability

    Mode III: With Smart-Load AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery Smart Load Mode IV: AC Couple On-Grid+AC couple AC cable DC cable Solar Backup Load On-Grid Home Load Grid Battery On-Grid Inverter The 1st priority power of the system is always the PV power, then 2nd and 3rd priority power will be the battery bank or grid according to the settings.
  • Page 42 Error code Description Solutions 1，Check the PV input polarity DC input polarity reverse fault 2，Seek help from us, if can not go back to normal state. 1，The BUS voltage can t be built from PV or battery. DC_START_Failure 2，Restart the inverter, If the fault still exists, please contact us for help 1.
  • Page 43 Error code Description Solutions BUS over current. 1, Check the PV input current and battery current setting Tz_HV_Overcurr_fault 2. Restart the system 2~3 times. 3. If the fault still exists, please contact us for help. Remotely shutdown Tz_EmergStop_Fault 1, it tells the inverter is remotely controlled. Leakage current fault 1.
  • Page 44 Error code Description Solutions 1，Please check each battery status, such as voltage/ SOC and parameters etc., and make sure all the parameters are same. backup battery fault 2，If the fault still exists, please contact us for help Grid frequency out of range 1.
  • Page 45 Under the guidance of our company, customers return our products so that our company can provide service of maintenance or replacement of products of the same value. Customers need to pay the necessary freight and other related costs. Any replacement or repair of the product will cover the remaining warranty period of the product.

  • Page 46: Datasheet

    8. Datasheet Model SUN-5K-SG04LP3-AU SUN-6K-SG04LP3-AU Battery Input Date Battery Type Lead-acid or Li-lon Battery Voltage Range(V) 40-60V Max. Charging Current(A) 120A 150A Max. Discharging Current(A) 120A 150A Charging Curve 3 Stages / Equalization External Temperature Sensor Charging Strategy for Li-lon Battery...
  • Page 47 Certifications and Standards EN50549, AS4777.2, VDE0126, IEC61727, VDEN4105, G99, Grid Regulation NBT32004, CEI0-21, NRS097, NBR16149/16150, RD1699 IEC62109-1/-2, EN61000-6-1,EN61000-6-2, EMC/Safety Regulation EN61000-6-3,EN61000-6-4 General Data Operating Temperature Rande(℃) -45~60℃, >45℃ Derating Cooling Smart cooling Noise(dB) ≤45 dB(A) Communication with BMS RS485; CAN Weight(kg) 33.6 Size(mm)
  • Page 48 SUN-8K- SUN-10K- SUN-12K- Model SG04LP3-AU SG04LP3-AU SG04LP3-AU Battery Input Date Battery Type Lead-acid or Li-lon Battery Voltage Range(V) 40-60V Max. Charging Current(A) 190A 210A 240A Max. Discharging Current(A) 190A 210A 240A Charging Curve 3 Stages / Equalization External Temperature Sensor Charging Strategy for Li-lon Battery Self-adaption to BMS PV String Input Data...
  • Page 49 Certifications and Standards EN50549, AS4777.2, VDE0126, IEC61727, VDEN4105, G99, Grid Regulation NBT32004, CEI0-21, NRS097, NBR16149/16150, RD1699 IEC62109-1/-2, EN61000-6-1,EN61000-6-2, EMC/Safety Regulation EN61000-6-3,EN61000-6-4 General Data Operating Temperature Rande(℃) -45~60℃, >45℃ Derating Cooling Smart cooling Noise(dB) ≤45 dB(A) Communication with BMS RS485; CAN Weight(kg) 33.6 Size(mm)
  • Page 50 9. Appendix I Definition of RJ45 Port Pin for BMS 1 2 3 4 5 6 7 8 BMS Port RS485 Pin 485_B 485_A CAN-H CAN-L GND_485 485_A 485_B Definition of RJ45 Port Pin for Meter-485 Meter-485 Pin 1 2 3 4 5 6 7 8 Meter-485 Port METER-485_B METER-485_A...
  • Page 51 Definition of RJ45 Port Pin for DRM Port Modbus port DRM1/5 1 2 3 4 5 6 7 8 DRM port DRM2/6 DRM3/7 DRM4/8 REF-GEN/0 D-GND NetJ4_7 NetJ4_7 RS232 WIFI/RS232 D-GND 12Vdc WIFI/RS232 This RS232 port is used to connect the wifi datalogger - 49 -...

  • Page 52: Appendix

    10. Appendix II 1. Split Core Current Transformer (CT) dimension: (mm) 2. Seconddary output cable length is 4m. Lead Outside - 50 -...
  • Page 53 Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China Tel: +86 (0) 574 8622 8957 Fax: +86 (0) 574 8622 8852 E-mail: service@deye.com.cn Web: www.deyeinverter.com Ver: 2.2, 2022-03-11...
