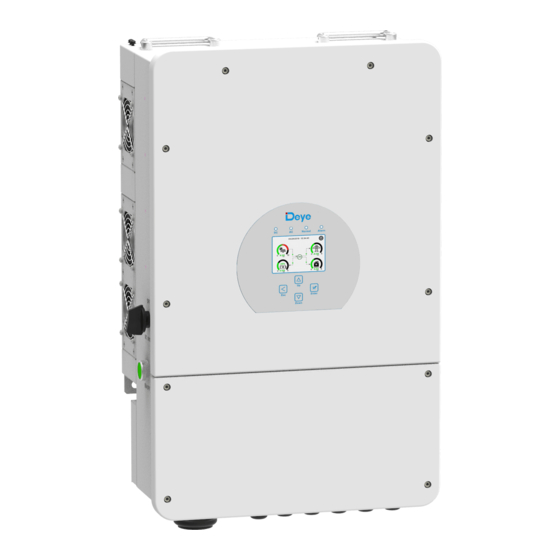

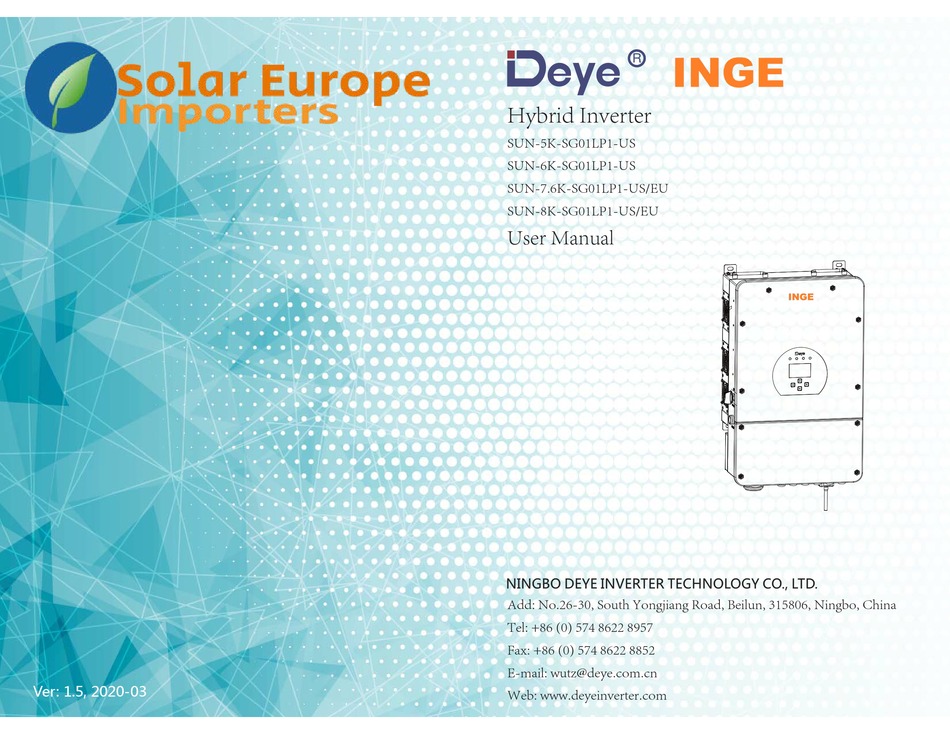

- Page 1 Hybrid Inverter SUN-5K-SG01LP1-US SUN-6K-SG01LP1-US SUN-7.6K-SG01LP1-US/EU SUN-8K-SG01LP1-US/EU User Manual Add: No.26-30, South Yongjiang Road, Beilun, 315806, Ningbo, China Tel: +86 (0) 574 8622 8957 Fax: +86 (0) 574 8622 8852 E-mail: wutz@deye.com.cn Web: www.deyeinverter.com...
-
Page 2: Table Of Contents
Contents Contents Contents 5.6 Battery Setup Menu ………………………………………………… 5.7 System Work Mode Setup Menu ………………………………………………… 5.8 Grid Setup Menu 2.1 Product Overview 5.9 Generator Port Use Setup Menu 2.2 Product Features 5.10 Advanced Function Setup Menu 2.3 Basic System Architecture 5.11 Device Info Setup Menu ……………………………………………………………... -
Page 3: Product Overview
1. Safety Introductions 2.1 Product Overview ・This chapter contains important safety and operating instructions. Read and keep this manual for future reference. ・Before using the inverter, please read the instructions and warning signs of the battery and corresponding sections in the instruction manual. ・Do not disassemble the inverter. -
Page 4: Product Features
2.2 Product Features AC cable DC cable WiFI GPRS ・ -220V Single phase,120V/240V Split phase Pure sine wave inverter. Cloud services phone ・ - Self-consumption and feed-in to the grid. ・ - Auto restart while AC is recovering. ・ - Programmable supply priority for battery or grid. Wind Solar Backup Load... -
Page 5: Mounting Instructions
・ The ambient temperature should be between -25~60℃ to ensure optimal operation. 2(US)/1(EU) Current transformer (Optional) ・ Be sure to keep other objects and surfaces as shown in the diagram to guarantee Battery sensor sufficient heat dissipation and have enough space for removing wires. L-type Hexagon wrench Chart 3-1 Parts List 3.2 Mounting instructions... -
Page 6: Battery Connection
All wiring must be performed by a professional person. 14 mm (0.55 in.) Connecting the battery with a suitable cable is important for safe and 52~60mm efficient operation of the system. To reduce the risk of injury, refer to [(2.05 in.)to(2.36 in.)] Chart 3-2 for recommended cables. -
Page 7: Ac Input/Output Connection
3.3.2 Battery temperature connection 3.4 AC Input/Output Connection ・ Before connecting to AC input power source,please install a separate AC breaker between inverter and AC input power source.This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input.The recommended of AC breaker is 50A for 5kw and 80A for 8KW. -
Page 8: Pv Connection
3.5.1 PV Module Selection: Be sure that AC power source is disconnected before attempting to wire it When selecting proper PV modules, please be sure to consider below parameters: to the unit. 1) Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter. -
Page 9: Ct Connection
3.6 CT Connection Note: (Region:EU) When the inverter is in the off-grid state, the N line needs to be connected to the earth. Inverter 3.7 Earth Connection(mandatory) Ground cable shall be connected to ground plate on grid side this prevents electric shock. if the original protective conductor fails. -
Page 10: Wiring System For Inverter
3.9 Wiring System for Inverter (Region:EU) (Region:US) - 15 - - 16 -... -
Page 11: Single Phase Parallel Connection Diagram
3.10 Single phase parallel connection diagram 3.11 Split phase parallel connection diagram (Region:EU) (Region:US) Inverter Inverter No.3 Grid Load Grid Load No.3 (slave) (slave) (slave) Ground Ground Parallel box Parallel A Parallel B Parallel box Parallel A Parallel B Inverter Inverter Inverter Inverter... -
Page 12: Three Phase Parallel Inverter
3.12 Three phase Parallel Inverter 4. OPERATION 4.1 Power ON/OFF Once the unit has been properly installed and the batteries are connected well,simply press On/Off button(located on the left side of the case) to turn on the unit.When system without battery connected,but connect with either PV or grid,and ON/OFF button is switched off,LCD will still light up(Display will show OFF),In this condition,when switch on ON/OFF button and select NO battery,system can still working. -
Page 13: Main Screen
5. LCD Display Icons 5.1.1 LCD operation flow chart 5.1 Main Screen The LCD is touchscreen,below screen shows the overall information of the inverter. Solar Page Solar Graph 05/28/2019 15:34:40 Grid Page Grid Graph Inverter Page 8.30 -3.00 Main Screen Battery Page BMS Page -2.00... -
Page 14: Solar Power Curve
Li-BMS 5.2 Solar Power Curve Mean Voltage:50.34V Charging Voltage :53.2V Batt Total Current:55.00A Discharging Voltage :47.0V Data Solar Mean Temp :23.5C Charging current :50A This is Solar Panel detail page. Total SOC :38% Discharging current :25A Stand-by Solar Panel Generation. Dump Energy:57Ah Power: 1560W Today=8.0 KWH... -
Page 15: System Setup Menu
Lock out all changes Grid Signal ---Disable. Battery Setting 5.6 Battery Setup Menu Lithium Mode--This is BMS protocol.default is 0 please reference the document（Approved Battery-Deye）. Lithium Mode Shutdown 10%--the inverter will shutdown if the SOC is Battery Setting Lithium Battery Batt below this. -
Page 16: System Work Mode Setup Menu
5.8 Grid Setup Menu Battery Setting This is Battery 4 tages charge voltage. Grid Setting Float V 55.2V Shutdown 41.0V This is for professional installers,you can hold default Please select the correct Grid Mode in your local area. If Low Batt 45.0V Grid Mode General Standard... -
Page 17: Generator Port Use Setup Menu
5.9 Generator Port Use Setup Menu PassWord Factory Reset: 9999 GEN PORT USE Lock out all changes:7777 X--X--X--X Generator Input:use Generator Mode SmartLoad Output: if the SOC is up than Generator Input Gen connect to Grid input PORT “ON”and solar power is high than 1000W. Set1 the inverter will open smartload. - Page 18 AC cable DC cable On-Grid+AC couple AC cable DC cable Wind Backup Load On-Grid Home Load Solar Backup Load On-Grid Home Load Grid Grid Battery Battery Single Phase Inverter The 1st priority power of the system is always the PV power,then 2nd and 3rd priority power will be the battery bank or grid according to the settings.
- Page 19 The DC busbar is 2. If still same, and turn off the DC switch and AC switch and to Ningbo Deye Inverter Technology Co., Ltd. wait for one minute and then turn on the DC/AC switch; unbalanced 3.
- Page 20 9. Datasheet SUN-5K-SG01LP1- SUN-6K-SG01LP1- SUN-7.6K-SG01LP1- SUN-8K-SG01LP1- Technical Data US/EU US/EU Max. Efficiency 97.60% Euro Efficiency 97.00% Battery Type Lead-acid or lithium-ion MPPT Efficiency 99.90% Battery Voltage Range (V) 40V-60V Max. Charging Current (A) 120A 135A 190A 190A PV Arc Fault Detection Integrated(Except European Type) Max.
