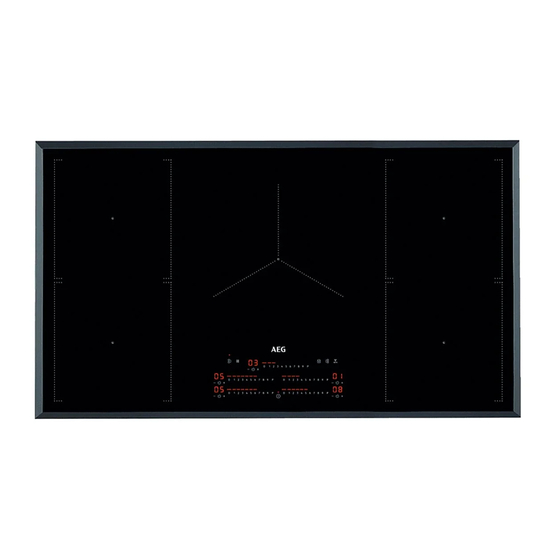

- Page 1 IKE95771FB User Manual USER MANUAL...
- Page 2 Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the AEG manufacturer’s warranty in the event that your product fault is due to failure to adhere to this manual.
- Page 3 ENGLISH General information and tips Environmental information Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage.
- Page 4 1.2 General Safety This appliance is for cooking purposes only. • This appliance is designed for single household • domestic use in an indoor environment. This appliance may be used in, offices, hotel guest • rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
- Page 5 ENGLISH disconnect the appliance from power supply. In either case contact the Authorised Service Centre. If the supply cord is damaged, it must be replaced by • the manufacturer, an authorized Service or similarly qualified persons in order to avoid a hazard. WARNING: Use only hob guards designed by the •...
- Page 6 • Make sure that a shock protection is • Set the cooking zone to “off” after installed. each use. • Use the strain relief clamp on the • Do not put cutlery or saucepan lids on cable. the cooking zones. They can become •...
- Page 7 ENGLISH on the glass / glass ceramic. Always separately: These lamps are intended lift these objects up when you have to to withstand extreme physical move them on the cooking surface. conditions in household appliances, such as temperature, vibration, 2.4 Care and cleaning humidity, or are intended to signal information about the operational •...
- Page 8 If the appliance is installed above a Find the video tutorial "How to install drawer, the hob ventilation can warm up your AEG Induction Hob - Worktop the items stored in the drawer during the installation" by typing out the full name cooking process.
- Page 9 ENGLISH 4.2 Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sen‐ Function Description field On / Off To activate and deactivate the appliance. Timer To set the function. To increase or decrease the time.
- Page 10 4.3 Display indicators Indicator Description There is a malfunction. + digit OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / residual heat. 5. DAILY USE the area marking. If the cookware is WARNING! located between the two centres, Bridge Refer to Safety chapters.
- Page 11 ENGLISH The function can be activated for the Set the heat setting for the selected induction cooking zone only for a limited cooking zone and then set the function. period of time. After this time the You cannot activate the induction cooking zone automatically function while the Hob²Hood sets back to the highest heat setting.
- Page 12 • If the hob reaches the limit of maximum available power (refer to Sym‐ Setting Possible op‐ the rating plate), the power of the tions cooking zones will be automatically reduced. Alarm / error The list of recent • The heat setting of the cooking zone history alarms / errors.
- Page 13 ENGLISH The function stays active Heat setting The hob deacti‐ when you deactivate the vates after hob. The indicator above is on. 3 - 4 5 hours 4 hours To deactivate the function: press Do not set any heat setting. Press and 6 - 9 1.5 hours hold...
- Page 14 You choose the combination of the sections by choosing the mode applicable to the size of the cookware you want to use. There are three modes: Standard, Big Bridge, and Max Bridge. To set the heat setting use the two control bars on the left side.
- Page 15 ENGLISH FlexiBridge Max Bridge mode To activate the mode press until you see the correct mode indicator . This FlexiBridge Big Bridge mode mode connects all sections into one cooking area. To set the heat setting use To activate the mode press until you any of the two control bars on the left see the correct mode indicator...
- Page 16 1. Place the correct cookware on the left front side of the cooking area. 2. Press and hold to activate the PowerSlide hob. A signal sounds and indicators above This function allows you to adjust the temperature by moving the cookware to appear.
- Page 17 ENGLISH basis of mode setting and temperature of 2. Press for 3 seconds. The display the hottest cookware on the hob. You comes on and goes off. can also operate the fan from the hob 3. Press for 3 seconds. manually.
- Page 18 7. HINTS AND TIPS during the cooking session. This WARNING! might impact the functioning of the Refer to Safety chapters. control panel or accidentally activate hob functions. 7.1 Cookware Refer to "Technical data". For induction cooking zones a strong electro-magnetic 7.2 The noises during...
- Page 19 ENGLISH Heat setting Use to: Time Hints (min) Keep cooked food warm. as nec‐ Put a lid on the cookware. essary 1 - 2 Hollandaise sauce, melt: but‐ 5 - 25 Mix from time to time. ter, chocolate, gelatine. Solidify: fluffy omelettes, baked 10 - 40 Cook with a lid on.
- Page 20 Cooker hoods with the Hob²Hood function To find the full range of cooker hoods which work with this function refer to our consumer website. The AEG cooker hoods that work with this function must have the symbol 8. CARE AND CLEANING 8.2 Cleaning the hob...
- Page 21 ENGLISH 9.1 What to do if... Problem Possible cause Remedy You cannot activate or oper‐ The hob is not connected to Check if the hob is correctly ate the hob. an electrical supply or it is connected to the electrical connected incorrectly.
- Page 22 Make sure, you operated the hob correctly. If not the 10. TECHNICAL DATA 10.1 Rating plate Model IKE95771FB PNC 949 597 976 00 Typ 62 E5A 07 AA 220 - 240 V, 50 Hz Induction 7.35 kW Made in: Germany Ser.Nr.
- Page 23 Appliances, conditions of the product warranties purchased and used in Australia or for AEG Appliances. It is an important New Zealand and is in addition to document. Please keep it with your (and does not exclude, restrict, or...
- Page 24 Appliance to and from Electrolux – the Appliance’s serial number or its ASC. Travel and transportation or warranty seal has been will be arranged by Electrolux as part removed or defaced. of any valid warranty claim. 8. How to claim under this warranty: 6.
- Page 25 Important Notice Before calling for service, please ensure that the steps listed in clause 8 above have been followed. SERVICE AUSTRALIA aeg.com/au FOR SERVICE FOR SPARE PARTS or to find the address of your nearest au‐ or to find the address of your nearest spare...
- Page 28 www.aeg.com/au...
