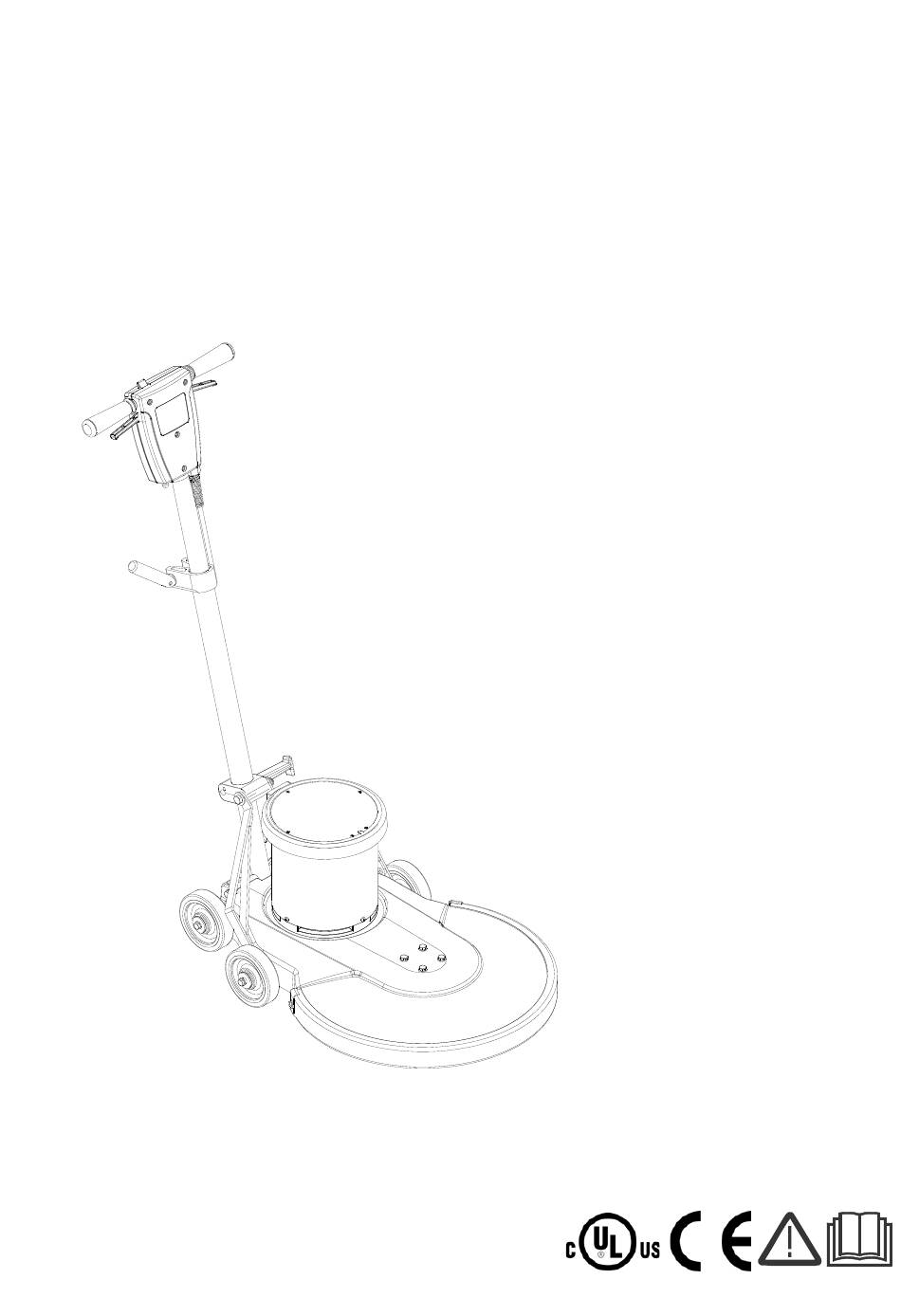

Floor Burnisher
Burnisher
Operating instructions (ENG)
MODELS:
U1500
10090570
LB1500
10090160
LB1500IE
10090180
LB1500IA
10090170
SPT1500
10090360
From Serial Number (Ref No1*)
*See Serial Number Page in Spare
Parts List or call manufacturer
86402430-A
06/23/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kärcher U1500
Summary of Contents for Kärcher U1500
- Page 1 Floor Burnisher Burnisher Operating instructions (ENG) MODELS: U1500 10090570 LB1500 10090160 LB1500IE 10090180 LB1500IA 10090170 SPT1500 10090360 From Serial Number (Ref No1*) *See Serial Number Page in Spare Parts List or call manufacturer 86402430-A 06/23/15...
- Page 2 Machine Data Label Warranty Registration Thank you for choosing our product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to: http://warranty.karcherna.com/warrantyregistration.aspx 86402430 Operator’s Manual - Floor Burnisher...
- Page 3 Table of Contents Machine Data Label ......2 Table of Contents ......3 How To Use This Manual .
- Page 4 How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...
- Page 5 Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
- Page 6 Safety CONSIGNES DE SÉCURITÉ IMPORTANTES Lors de l'utilisation de cette machine, des précautions de base doivent toujours être prises, y compris les précautions suivantes : LIRE TOUTES LES INSTRUCTIONS AVANT D'UTILISER CETTE MACHINE. Pour réduire le risque d'incendie, d'électrocution ou de blessure : N’utiliser cette machine qu’en intérieur.
- Page 7 Safety The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
- Page 8 Safety Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions : DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou AVERTISSEMENT - entraîner la mort...
- Page 9 Safety Safety Labels NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. Emplacement De L'étiquette De Sécurité REMARQUE: Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé...
- Page 10 Safety Grounding Instructions - 120v Grounding Pin THIS PRODUCT IS FOR COMMERCIAL USE ONLY. GROUNDING CONNECTION USING AN ADAPTOR Grounded Grounded Electrical: Outlet Box Adaptor Outlet In the USA this machine operates on a 15 amp FIGURE A nominal 120V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine.
- Page 11 Safety Grounding Instructions - 230v THIS PRODUCT IS FOR COMMERCIAL USE Improper connection of the equipment-grounding ONLY. conductor can result in a risk of electric shock. Check with a qualified electrician or service Electrical: person if you are in doubt as to whether the outlet is properly grounded.
- Page 12 MOTOR 1.5 hp PAD SPEED 1500 rpm ELECTRICAL SYSTEM 115 volts, 60 Hz LB1500, U1500, SPT1500 230 volts, 50 Hz LB1500IE, LB1500IA CABLE 75’ [22.9 m] SWITCHES Dual levers with safety lock Four 5” (12.7 cm) dia., 1.25” (3 cm) wide,...
- Page 13 Operations Handle Installation HANDLE RECEPTACLE HANDLE ASSEMBLY MOTOR PLUG DECK PIVOT ASSEMBLY HOLE The machine is shipped with handle unassembled. 3. Remove bolt, nut and washers (items 4, 5 and 6) from lower block on handle assembly. Attach Follow these steps for installation: links as shown.
- Page 14 Operations Controls NOTE: It is incorrect to make it lock opposite from the way it was assembled by applying 1. Safety Lock – Prevents unintended operation of more force to the nut. the machine. The pivot pin is off center in relationship to the axis of 2.
- Page 15 Operations Machine Operation NOTE: The machine is equipped with a circuit breaker to protect the motor in the event an overload condition occurs. The circuit breaker is located on the handle. Push the reset button to For indoor use only. restart the machine.
- Page 16 Maintenance Machine Troubleshooting PROBLEM CAUSE SOLUTION Circuit breaker tripped in building. Check and reset. Test switch for continuity and Power switch failure replace if necessary. Tripped circuit breaker Reset. Faulty power cord Replace. Replace Machine will not run CAUTION: To reduce the risk of electrical shock, unplug the Fuse in motor blown machine before opening fuse...
- Page 17 Maintenance Service Schedule MAINTENANCE DAILY MONTHLY Check pad wear to prevent buildup of chemicals Check pad driver system for damage Check handles, switches, and knobs for damage Store with pad off the floor Check all bearings for noise Check skirt/bumpers for damage and replace as necessary Check overall performance of machine 86402430 Operator’s Manual - Floor Burnisher...
- Page 18 Suggested Spare Parts SERIAL PART NO. DESCRIPTION NOTES: NO. FROM 86225710 WASHER, BEARING (HANDLE ADJ) 86224740 SPRING, EXT .5 OD X 3.5L 86224750 SPRING, COMP .48 OD X .91 L 86215130 BAR, HANDLE ADJ 86222560 PIN, PIVOT, HANDLE ADJ 86223550 ROD, HANDLE ADJ 86003660 FUSE...
- Page 19 Notes 86402430 Operator’s Manual - Floor Burnisher...
