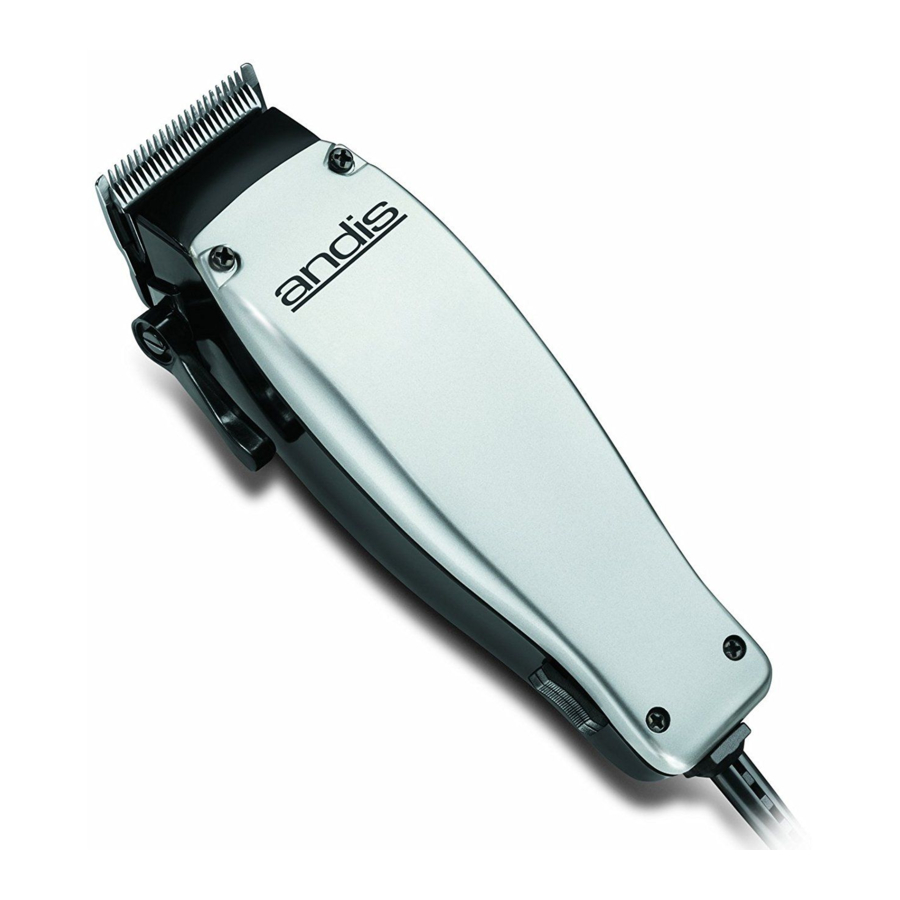

Andis MC-2 - Hair Clipper Manual

CUTTING HAIR

CONVENTIONAL BOY'S AND MEN'S CUT

1. Oil clipper blades before first use and before and after each use. Always use Andis Clipper Blade Oil. Secure 3/8" attachment comb on clipper (optional). Comb hair the way it is worn naturally.

2. Taper hair at base of neck with comb and clipper. Taper the hair up and out. Trim to desired length. Work your way up toward the crown of the head in blended layers.

   NOTE: In step 2 and 3 your comb should be held with teeth pointing upward.
3. Begin working around to the side of the head by angling comb so that the hair toward the back of the head protrudes more than it does at the front. Clip to desired length, working your way around to both sides and up toward the crown of the head in layers.

4. Time to trim the top of the head. If there is a part in the hair, make sure it is in its proper place. Now comb the hair forward toward the face. Then standing behind the person, secure a section of hair between your first and second fingers. Control the amount of hair to be cut by the amount of hair that extends beyond your fingers. Then, using either the clipper or the barber shears, trim the front to the back of the head.

5. Continue this method of trimming. As you work from front to back, you can gradually cut hair shorter (if you wish) by holding your fingers closer to the head, allowing more hair to be trimmed.

6. Trimming longer hair on the sides of the head can be done with either shears or clipper. Use a comb or fingers to lift the hair, then trim the hair that extends beyond the comb or fingers. Blend the longer hair into the shorter clipper-cut hair. Cut only a small amount of hair at a time, and comb often to find any uneven spots.

7. Clean nape of neck using clipper as shown up to hair line. For this step, and for step six, use 3/8" comb attachment over blades.

8. Trim the hair line around the ears and neck with the clipper. Tip the clipper so that you use only the corner of the blade; then slowly and carefully follow the outline over and behind the ears and down the side of the neck.

9. Comb hair again, trim the front hairline with your shears and conduct a final inspection for any uneven spots.


GIRLS AND WOMENS BASIC CUT

1. Begin layer cut by parting the hair vertically down the middle in the back. Make a horizontal part several inches above the bottom of the hair line. Comb shorter hairs down, longer layer forward and over the ears. With scissors, cut shortest layers to desired length.

2. Comb hair up, away from nape of neck and with a barrette fasten in place. Hold clippers upside down to clean nape of neck

3. Holding hair between fingers, continue layer cutting hair. Each layer should be cut about 1/4" longer than the layer underneath

4. Part hair vertically from the crown to the ear. Comb hair to sides and fasten sections in place with clips. Hold hair over ears between fingers. Trim hair to desired length. Continue as in step three. Then cut behind ear, connecting lengths and layers. Repeat on other side.

5. Cut bangs with scissors about an inch above the eyebrows. Use eyebrows as a guideline for a straight cut. Blend with sides to desired shape.
   Be sure that forehead is relaxed while cutting, not wrinkled.


IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using the Andis Clipper.

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Always unplug this appliance from the electrical outlet immediately after using.
5. Unplug this appliance before cleaning, removing, or assembling parts.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. An appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by, on or near children or individuals with certain disabilities.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Andis.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to an Andis Authorized Service Station for examination or repair.
5. Keep the cord away from heated surfaces.
6. Never drop or insert any object into any opening.
7. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
8. Do not use this appliance with a damaged or broken blade or comb, as injury to the skin may occur.
9. To disconnect turn control to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

THIS PRODUCT INTENDED FOR HOUSEHOLD USE

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

OPERATING INSTRUCTIONS

Please read the following instructions before using your new Andis Clipper. Give it the care that a fine precision built instrument deserves and it will give you years of service. Before starting clipper remove blade guard. Plug cord into electrical outlet, operate at 120 volt, 60 cycle AC electrical current or as noted on the unit. To start clipper move switch button forward, to stop, move switch button back to original position. After using your Andis Clipper, rewrap cord and store in a safe place.

USER MAINTENANCE

The internal mechanism of your clipper has been permanently lubricated at the factory. Other than the recommended maintenance described in this manual, no other maintenance should be performed, except by Andis Company or an Andis Authorized Service Station. To find an Andis Authorized Service Station near you log on to www.andis.com or contact our customer service department: 1-800-558-9441 (U.S.) or 1-800-335-4093 (Canada).

POWER ADJUSTMENT

Your Andis clipper has been adjusted to line voltage at the factory. However, because of voltage variations it may be necessary to adjust the power setting for your area. If the power adjustment is off, you will usually notice a "clatter", when the clipper is "on" or introduced into the hair. (It is normal for your clipper to "clatter" for an instant when initially turned on).

TO ADJUST YOUR CLIPPER

1. Oil the blades.

2. The power screw is located in the lower part of the housing opposite the switch.

3. Turn your clipper "on".
4. Using a standard screwdriver that fits the slot, turn the power screw clockwise until the clipper clatters continuously. Then turn the screw counter clockwise carefully until the clatter ceases.

5. Your clipper is now adjusted to its optimum power setting.

CARE AND SERVICING OF YOUR UNIT BLADES

Blades should be oiled before, during, and after each use. If your clipper blades leave streaks or slow down, it's a sure sign blades need oil. The clipper should be held in the position shown in Diagram below to prevent oil from getting into the motor. Place a few drops of Andis Clipper Blade Oil on the front and side of the cutter blades. Wipe excess oil off blades with a soft dry cloth. Spray lubricants contain insufficient oil for good lubrication, but are an excellent clipper coolant. Always replace broken or nicked blades to prevent injury. You can clean the excess hair from your blades by using a small brush or worn out toothbrush. To clean the blades we suggest to immerse the blades only into a shallow pan of Andis Clipper Blade Oil, while the clipper is running. Any excess hair and dirt that has accumulated between the blades should come out. After cleaning, turn your clipper off and dry blades with a dry cloth and start clipping again. Before storing the clipper, spread one or two drops of oil over the blades to prevent the blades from rusting.

REPLACEMENT (REMOVAL) OF BLADE SET

To remove the blades, first unplug the clipper from the electrical outlet. Turn the clipper upside down, so that the blade teeth are pointing down. You may want to place the clipper on a flat surface to do this. Unscrew the screws on the blade (Diagram D). Remove the blades. Separate the blade spacer from the upper blade (Diagram E), and insert into new upper blade. Blade should curve away from blade spacer. To install the upper blade, place one slot of the blade spacer on one prong of the tension spring. Placing your thumb on the opposite side of the blade, gently push the blade sideways to separate the two prongs. Press down. Line up the screw holes in the bottom blade with the two holes in the clipper housing, and replace screws. Do not tighten down screws completely. Turn clipper over and align lower blade so teeth on both blades are parallel, but with lower blade's teeth slightly above the upper blade teeth. Failure to do this may result in nipping the skin when cutting the hair.

ATTACHING THE CLIPPER COMBS

The clipper comb blade attachments mount easily. Just snap them on. Snap them off. You can always set the blades for a coarser cut by attaching any of the snap-on blade attachments made for your Andis Clipper. To use blade attachment, slip the cutter blade teeth into blade attachment. Snap the blade attachment down; they snap on and off easily. These attachments guide hair into the clipper blades and give you precise control of hair lengths. The length of trim is indicated on the blade attachment: 1/16", 1/8", 1/4", 3/8", 1/2" & 3/4". Use the chart to find the approximate lengths of cut. Different blade angles in relation to the skin, thickness and texture of the hair will vary the cutting length.
Attachment comb sizes may vary in each kit.

UNIT BLADE ADJUSTMENT

Your Andis adjustable clipper blade set is easy to adjust. From coarse to fine cuts, all that's needed is a flick of the adjustment lever with your thumb. In the upright position, blades are set for the finest, or shortest cuts.

CLIPPING GUIDE

FACTORY REPAIR SERVICE

When the blades of your Andis clipper become dull after repeated use, it is advised to purchase a new set of blades available through your Andis Supplier or through an Andis Authorized Service Station. If you wish your clipper to be serviced as well, it should be carefully packed and mailed either Parcel Post Insured, or U.P.S. to any Andis Authorized Service Station.
