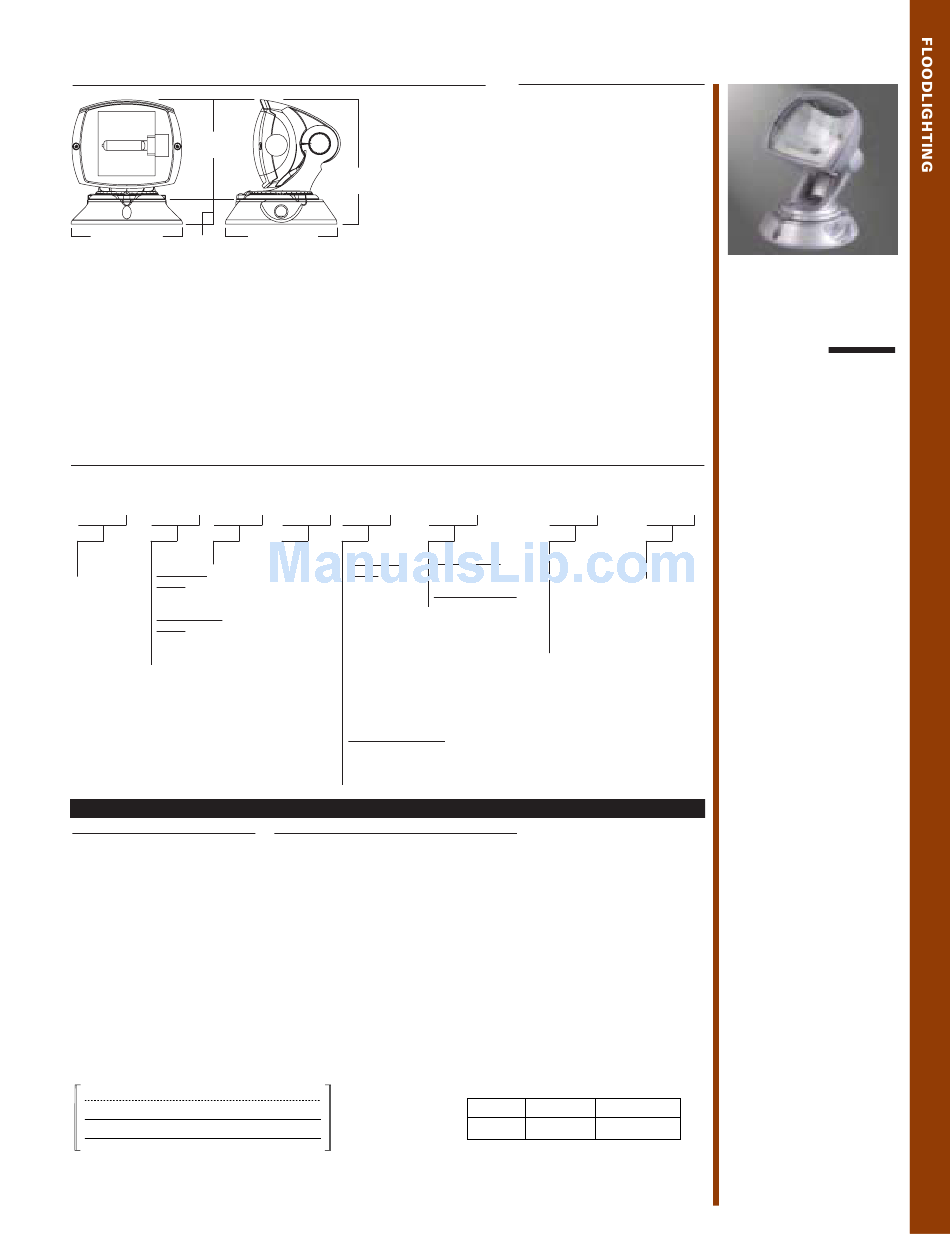

Cooper Lighting PHQ Specifications

D I M E N S I O N S
6 1/4"
[158mm]
7 3/8" [188mm] 7 3/8" [188mm]
1 5/8"
[42mm]
O R D E R I N G I N F O R M AT I O N
PHQ-150-HL-120-VWF-WD-DP-L
S A M P L E N U M B E R :
Product Lamp Lamp Type
Family Wattage 1 HL=Quartz
PHQ=PHOCUS T4 Halogen Halogen
Quartz Lamps
100=100W
Halogen
150=150W
PAR30 Halogen
Lamps
50=50W
60=60W
75=75W
Options 4
FR=Frosted Flat Glass Lens
L=Lamp Included (Standard)
WATTAGE TABLE
Quartz Halogen-T4
Quartz Halogen-PAR30
NOTES: 1 T4 lamps feature a mini-can base, PAR30 lamps feature a medium screw base. 2 60W PAR30 halogen lamp not available in FL40 distribution. 3 Custom and RAL
color matching available upon request. Consult your INVUE Lighting Systems Representative for further information. 4 Add as suffix in the order shown. 5 Order
separately, replace XX with color suffix. 6 Specifications and dimensions subject to change without notice.
7 7/8"
[201mm]
Mounting Options
Voltage Optical Systems
Ground Mount
120=120V T4 Halogen
GD=Direct Ground Mount
Lamps
GS=Spike Mount
NS=Narrow Spot
Wall/Ceiling Mount
Axial
WD=Direct Wall Mount
HNF=Horizontal
Narrow
Flood
HMF=Horizontal
Medium
Flood
HWF=Horizontal
Wide Flood
VNF=Vertical Narrow Flood
VMF=Vertical Medium Flood
VWF=Vertical Wide Flood
PAR30 Halogen Lamps
SP10=10° Spot
FL25=25° Flood
FL35=35° Flood
FL40=40° Flood 2
Accessories
5
VA3003-XX=Color Filter Adapter with Red Gel
VA3004-XX=Color Filter Adapter with Bright Blue Gel
VA3005-XX=Color Filter Adapter with Deep Green Gel
VA3006-XX=Color Filter Adapter with Warm Orange Gel
VA3001-XX=Top Visor
VA3002-XX=Four Sided Shield
VA3007-XX=Wire Guard
PHQ
100, 150W
50, 60, 75W
D E S C R I P T I O N
PHOCUS defines the ultimate
floodlighting solution; powerful
performance, easily concealable
size and a stunningly beautiful
shape. Available in wattages up
to 150 watt T-4 Quartz Halogen.
PHOCUS is versatile in
application. Ground, wall,
ceiling, burial and remote
mounting configurations offer a
wide variety of application
alternatives to accomplish
specific design requirements.
Offering seven (7) uniquely
shaped optical distributions, plus
an array of Quartz Halogen PAR
lamps, PHOCUS is unrivaled in
it's optical versatility. An
available family of light control
accessories provides custom
cutoff solutions to meet specific
distribution requirements.
Colors (add as Options &
suffix/must specify) 3 Accessories
BK=Black
(See Below)
AP=Grey
BZ=Bronze
WH=White
DP=Dark Platinum
GM=Graphite
Metallic
VR=Verde Green
Certifications
IP66 Rated U.L. 1598 3G Vibration Tested
CSA Listed 25°C Ambient ISO 9001
INVUE TM
PHQ
PHOCUS FLOOD
HALOGEN
5 0 - 1 5 0 W
Q u a r t z H a l o g e n
A R C H I T E C T U R A L
F L O O D L U M I N A I R E
• One-piece, die-cast
aluminum housing with
cast indicator mark on
backside of housing
references 5° integral
aiming marks on yoke
arm for precise vertical
aiming control
• Die-cast aluminum door
is secured with two (2)
tamper resistant recessed
stainless steel fasteners
• Lens is impact resistant
.20" tempered clear or
optional frosted
contoured glass, sealed to
the door with a one-piece
molded silicone gasket
• Heavy-duty die-cast
aluminum yoke arms
utilize a positive-lock
adjustment mechanism
for both solid attachment
and infinite aiming
• Choice of seven (7) high
efficiency optical systems.
• Die-cast aluminum base
assembly grounds yoke
arms and allows for 357˚
of horizontal rotation
• Approximate net weight:
3 lbs. (1.4 kgs.)
COOPER LIGHTING
