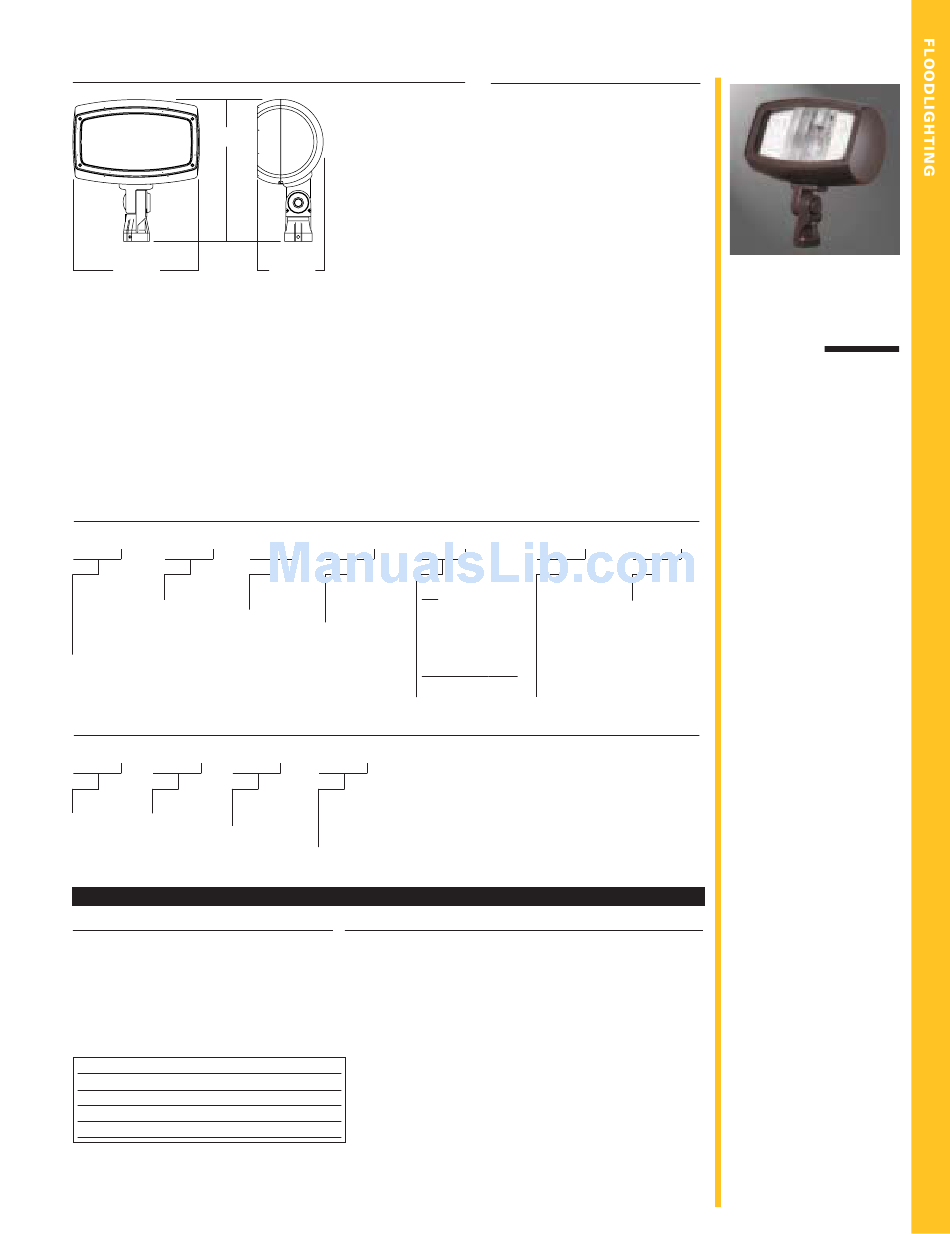

D I M E N S I O N S
22"
[358 mm]
19 1/2"
[495 mm]
2.10
E PA - E f f e c t i v e P r o j e c t e d A r e a :
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : M H M M - K - H F - 4 0 0 - M T- L L
Lamp Type
Fixture Type
MH=Metal
MM=Impact
Halide
Flood
HP=High
Medium
Pressure
Sodium
CF=Compact
Fluorescent
S T O C K S A M P L E N U M B E R ( L a m p I n c l u d e d )
S A M P L E N U M B E R : M H M M 4 0
Lamp Type
Fixture Type
Lamp Wattage
MH=Metal
MM=Impact
25=250W
Halide
Flood
40=400W
Medium
NOTES: Horizontal flood optics, knuckle mount, multi-tap ballast and bronze paint are standard for stock products. Stock accessories only available in bronze finish.
Options not available with stock products. Refer to standard ordering information.
Options
8
F=Single Fuse (120, 277 or 347V. Specify Voltage)
FF=Double Fuse (208, 240 or 480V. Specify Voltage)
Q=Quartz Relay (DC Bayonet Base)
EM=Quartz Emergency Cold Start Time Delay Relay
EM/SC=Quartz Emergency Separate Circuit
PE=Button Photocontrol (Specify Voltage)
WH=White
9
BK=Black
9
AP=Grey
9
LL=Lamp Included
LAMP TYPE
WATTAGE
Metal Halide
150, 250, 400W
Pulse Start Metal Halide
250, 320, 350, 400W
High Pressure Sodium
150, 250, 400W
Compact Fluorescent
57, 70W
NOTES: 1 All lamps are medium-base. 2 Pulse Start Metal Halide lamps only. 3 Products also available in non-US voltages and 50Hz for international markets. Consult
factory for availability and ordering information. 4 Multi-Tap is 120/208/240/277V wired 277V. 5 Triple-Tap ballast is 120/277/347V wired 347V. 6 Dual-Tap is
120/277V wired 277V. 7 Compact Fluorescent lamps only, 120-277V with internal fusing. 8 Add as suffix in the order shown. 9 Other finish colors available.
Consult your Cooper Lighting representative. 10 Order separately, replace XX with color suffix. 11 Specifications and dimensions subject to change without
notice.
10"
[254 mm]
Mounting
Distribution
Lamp Wattage
Type
HF=Horizontal
HID
K=Knuckle
Flood
150=150W
VF=Vertical
175=175W
Flood
250=250W
320=320W
350=350W
400=400W
Compact Fluorescent
57=57W
70=70W
Accessories
MM/TV-BZ=Top Visor
MM/4V-BZ=Four Sided Shield
MM/BD-BZ=Barn Doors
MM/WG=Wire Guard
Accessories
10
MM/BD-XX=Barn Doors (EPA 2.49)
MM/TV-XX=Top Visor (EPA 1.30)
MM/4V-XX=Four Sided Shield (EPA 2.21)
MM/VS=Vandal Shield
MM/WG=Wire Guard
MM/SMT-XX=Surface Mount Tenon
MM/ST-XX=Stanchion Mount Tenon
MM/WMT-XX=Wall Mount Tenon
MM/TMT-XX=Twin Mount Tenon (EPA .35)
COOPER LIGHTING - LUMARK
D E S C R I P T I O N
Impact Flood's cylindrical form
blends effortlessly to architectural
and landscape environments.
Available in wattages up to 400W
Pulse Start Metal Halide, Metal
Halide and High Pressure Sodium,
and up to 70W Compact Fluorescent.
Impact Flood offers properly scaled
solutions for any floodlighting
application.
Voltage
3
1
120V
208V
240V
277V
2
347V
2
480V
MT=Multi-Tap
4
TT=Triple-Tap
5
DT=Dual-Tap
6
UNV=120-277V Electronic Ballast
IMPACT FLOOD
MEDIUM
1 5 0 - 4 0 0 W
P u l s e S t a r t M e t a l H a l i d e
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
5 7 - 7 0 W
C o m p a c t F l u o r e s c e n t
A R C H I T E C T U R A L
Options &
Accessories
F L O O D L U M I N A I R E
(See Below)
• Rugged one-piece
die-cast aluminum
housing. One-piece
extruded silicone gasket
seals the optical and
7
electrical compartment
from external
contaminants. IP66 rated
• Die-cast aluminum door
is secured via four (4)
tamper resistant stainless
steel allen head fasteners
• Impact resistant, clear flat
tempered glass sealed to
door with a one-piece
silicone gasket
• Available in horizontal or
vertical lamp orientation.
Optics feature mogul-
base lamp holders
• High power factor ballast
are heat sunk to housing
for cooler operation and
longer life
• Heavy-duty die-cast
aluminum knuckle mount
utilizes tooth-lock
adjustment mechanism
for solid engagement
and ease of aiming.
Knuckle fits over standard
2 3/8" O.D. pipe tenon
• Approximate net weight:
40 lbs. (18.18 kgs.)
COOPER LIGHTING
®
MM
557
