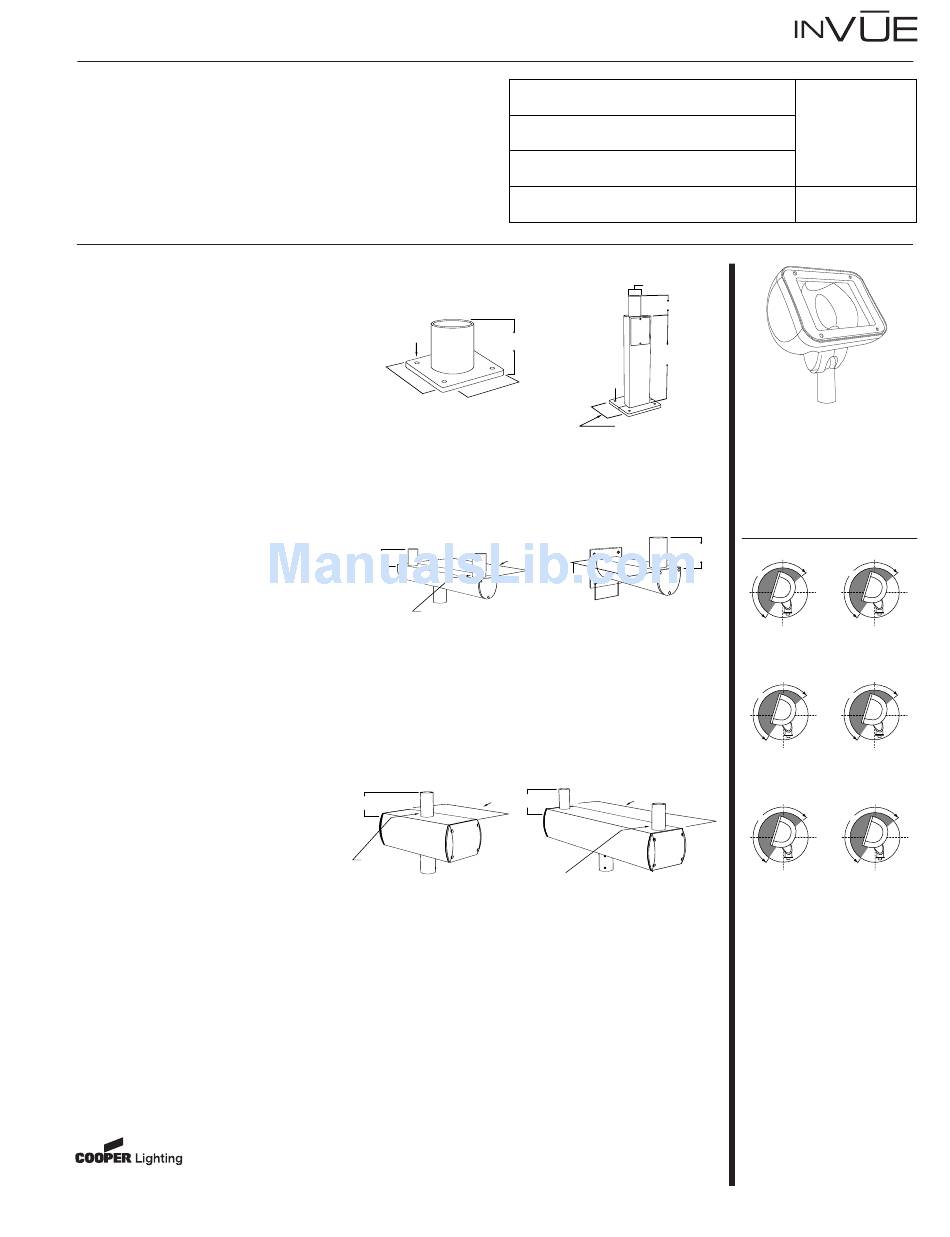

Cooper Lighting VFM Vision AVU050932 Specifications

D E S C R I P T I O N
The Vision Flood Medium (VFM) lower knuckle slip-fits over a standard 2"
pipe size (2 3/8" O.D.) tenon. VFM can be mounted to the following
accessories: Surface Mount Tenon (SMT), Stanchion Mount Tenon (ST), Twin
Mount Arm Tenon (TMT), and Wall Mount Arm Tenon (WMT).
A C C E S S O R I E S S P E C I F I C A I T O N S
S U R FA C E M O U N T T E N O N [ S M T ]
For above-grade surface mount
placement, the SMT is supplied with a
4" tall standard 2" pipe size (2 3/8" O.D.)
tenon.
S TA N C H I O N M O U N T T E N O N [ S T ]
Used to mount fixture above grade to solid
surface, or partially buried when secured to
concrete pad. Cast luminum housing and
mounting plate is 18" tall and is supplied with
a standard 2" pipe size
(2 3/8" O.D.) tenon.
T W I N A R M M O U N T T E N O N
[ V F M - T M T ]
Soft form extruded aluminum arm is 42" in
length and features two (2) standard 2" pipe
size (2 3/8" O.D.) tenons for twin fixture
mount. Other lengths and drilling patterns
available upon request. Twin arm base slip
fits over standard 2" pipe size (2 3/8" O.D.)
tenon. End caps are removable for wiring
access. Useful in ground mount and pole
mount applications.
WA L L M O U N T A R M T E N O N [ W M T ]
Extruded aluminum arm with cast mounting
plate is 15" in length and is supplied with a
standard 2" pipe size (2 3/8" O.D.) tenon. Also
useful as an arm extension off square area
light pole.
R E M OT E S I N G L E M O U N T T E N O N
[ 7 5 0 H P S - R S LT ]
Intended for 750W HPS applications only.
For above grade surface mount placement,
the 750HPS-RSLT is supplied with a 4" tall
standard 2" pipe size (2 3/8" O.D.) tenon.
Base slip fits over standard 2" pipe size
(2 3/8" O.D.) tenon. Electrical components are
packaged on a slide out tray, and housed in
an extruded aluminum enclosure with
removable die-cast end plates.
R E M OT E T W I N A R M M O U N T T E N O N
[ 7 5 0 H P S - R T M T ]
Intended for 750W HPS applications only.
Electrical components are packaged on a
slide out tray, and housed in an extruded
aluminum enclosure with removable die-cast
end plates. Arm features two (2) standard 2"
pipe size (2 3/8" O.D.) tenons for twin fixture
mount. Twin arm base slip fits over standard
2" pipe size (2 3/8" O.D.) tenon. Useful in
ground mount and pole mount applications.
www.cooperlighting.com
5/16" Dia.
[8 mm]
6 1/2"
[166 mm] Sq.
Surface Mount Tenon
[SMT]
4"
[102 mm]
3/4" [20 mm] Dia.
Twin Arm Mount Tenon
[VFM-TMT]
4 1/2"
[114 mm]
2 3/8" [60 mm] Dia.
Remote
Single Mount Tenon
[750HPS-RSLT]
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
2 3/8" [60 mm]
4"
[102 mm]
5/16"
[8 mm]
Dia.
5" [127 mm]
6" [152 mm]
Sq. Bolt Pattern
Stanchion Mount Tenon
[ST]
42" [1067 mm]
15"
[381 mm]
5"
[127 mm]
Sq. Bolt Pattern
Wall Mount Arm Tenon
[WMT]
4 1/2" 42" [1067 mm]
20" [511 mm]
[114 mm]
2 3/8" [60 mm] Dia.
Remote Twin Arm
Mount Tenon
[750HPS-RTMT]
Type
Date
4" [102mm]
18"
[457 mm]
VFM VISION
FLOOD MEDIUM
ACCESSORIES
A I M I N G R A N G E
4"
[102 mm]
190°
[SMT]
190°
[TMT]
190°
[750HPS-RSLT]
TM
190°
[ST]
190°
[WMT]
190°
[750HPS-RTMT]
AVU050932
