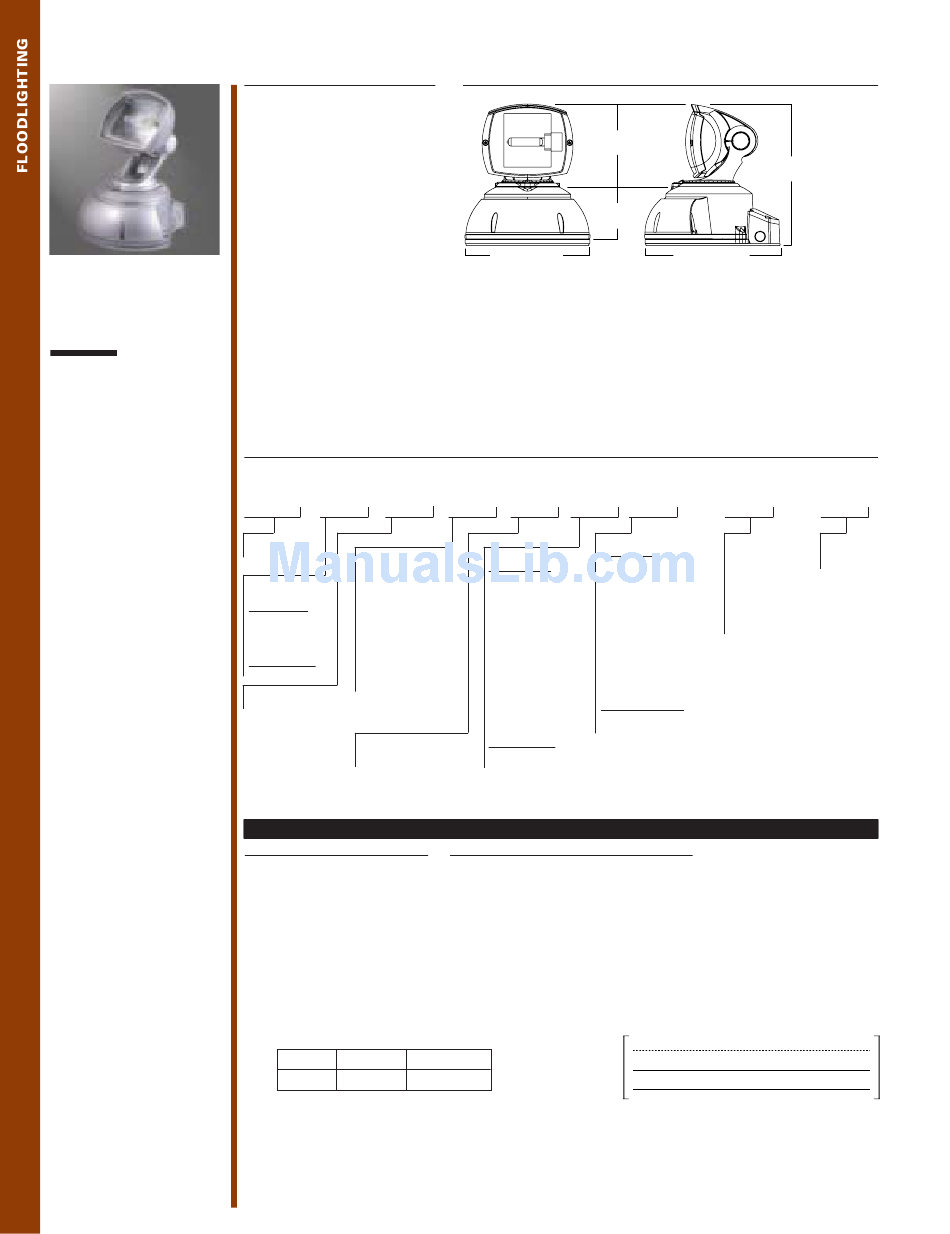

Cooper Lighting PHQ Specifications page 2

INVUE TM
PHH
PHOCUS FLOOD
HID
3 9 - 1 5 0 W
M e t a l H a l i d e
A R C H I T E C T U R A L
F L O O D L U M I N A I R E
• One-piece, die-cast
aluminum housing with
cast indicator mark on
backside of housing
references 5° integral
aiming marks on yoke
arm for precise vertical
aiming control
• Die-cast aluminum door
is secured with two (2)
tamper resistant recessed
stainless steel fasteners
• Lens is impact resistant
.20" tempered clear or
optional frosted
contoured glass, sealed to
the door with a one-piece
molded silicone gasket
• Heavy-duty die-cast
aluminum yoke arms
utilize a positive-lock
adjustment mechanism
for both solid attachment
and infinite aiming
• Choice of seven (7) high
efficiency optical systems
• Die-cast aluminum ballast
enclosure. Wiring
compartment features a
removable access cover
and is completely sealed
from electrical
components to prevent
water or vapor entry into
the fixture
• Approximate net weight:
10 lbs. (4.5 kgs.)
1112
COOPER LIGHTING
D E S C R I P T I O N
PHOCUS defines the ultimate
floodlighting solution; powerful
performance, easily concealable
size and a stunningly beautiful
shape. Available in wattages up to
150 watt T-6 Metal Halide and 250
watt T-4 Quartz Halogen.
PHOCUS is versatile in
application. Ground, wall, ceiling,
burial and remote mounting
configurations offer a wide variety
of application alternatives to
accomplish specific design
requirements. Offering seven (7)
uniquely shaped optical
distributions, plus an array of
HID and Quartz Halogen PAR
lamps, PHOCUS is unrivaled in
it's optical versatility. An available
family of light control accessories
provides custom cutoff solutions
to meet specific distribution
requirements.
O R D E R I N G I N F O R M AT I O N
PHH-39-MH-120-EB-FL30-GIB-DP
S A M P L E N U M B E R :
Product Family
PHH=PHOCUS
Voltage 5
HID
120=120V
208=208V
Lamp
240=240V
Wattage 1
277=277V
HID T6 Lamps
347=347V
39=39W 2
DT= Dual-Tap
70=70W 3
Wired 277V
100=100W
MT=Multi-Tap
150=150W
Wired 277V
HID PAR Lamps 4
TT=Triple-Tap
39=39W 2
Wired 347V
UNV=120-277V
Lamp Type
Universal
MH=Metal Halide
Electronic
Ballast
Ballast
MB=Magnetic
EB=Electronic 10
Options 16
F=Single Fuse
(120, 277 or 347V) Specify Voltage 6
FF=Double Fuse
(208, 240 or 480V) Specify Voltage 16
FR=Frosted Flat Glass Lens
L=Lamp Included
Certifications
IP65 Rated U.L. 1598 2G Vibration Tested
CSA Listed 25°C Ambient
NOTES: 1 T6 lamps use G12 base. 2 Available in Dual-Tap, 120 and 277V only. 3 70W magnetic ballast limited to Dual-tap 120/277V or 120/347V. 4 39W PAR20 lamps use
medium screw base. 5 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information.
6 Magnetic ballasts only. 7 Dual-tap is 120/277V wired 277V. 8 Multi-tap is 120/208/240/277V wired 277V. 9 Triple-tap is 120/277/347V wired 347V. 10 120 through
277V only. Not available with 150 MH lamp, or GBB, GRB, GSR ground mount options. 11 PAR 20 MH lamps available in 39W only. 12 GBB, GRB, GSR mounting
options include a magnetic potted burial ballast enclosure. Not available in 150W MH. Maximum 50' remoting distance from fixture head. 13 For use when ground
mounting in non-earth or interior surface environments. 14 Custom and RAL color matching available upon request. Consult your INVUE Lighting Systems
Representative for further information. 15 Add as suffix in the order shown. 16 Fusing available on GIB and WIB mounting options only.17 Order separately,
replace XX with color suffix. 18 Specifications and dimensions subject to change without notice.
D I M E N S I O N S
6 1/4"
[159mm]
4 1/4"
[107mm]
9 1/2" [241 mm]
Mounting Options
Ground Mount
Optical Systems
GBB=Direct Burial Mount
HID T6 Lamps
NS=Narrow Spot
Axial
GIB=Integral Ballast Box
HNF=Horizontal Narrow
GRB=Remote Mount
Flood
HMF=Horizontal
Medium Flood
6, 7
GRNB=Remote Mount (requires
HWF=Horizontal Wide
Flood
6, 8
VNF=Vertical Narrow
GSR=Spike Mount (supplied with
Flood
6, 9
VMF=Vertical Medium
Flood
Wall/Ceiling Mount
VWF=Vertical Wide
WIB=Integral Ballast Box
Flood
WRNB=Remote Mount (requires
HID PAR Lamps 11
SP10=10° Spot
FL30=30° Flood
Accessories 17
VA3003-XX=Color Filter Adapter with Red Gel
VA3004-XX=Color Filter Adapter with Bright Blue Gel
VA3005-XX=Color Filter Adapter with Deep Green Gel
VA3006-XX=Color Filter Adapter with Warm Orange Gel
VA3001-XX=Top Visor
VA3002-XX=Four Sided Shield
VA3007-XX=Wire Guard
ISO 9001
10 1/2"
[267mm]
10 1/4" [260 mm]
Colors (add as
suffix/must specify)
BK=Black
(supplied with
AP=Grey
burial ballast) 12
BZ=Bronze
WH=White
DP=Dark Platinum
(supplied with
GM=Graphite Metallic
remote burial ballast) 12
VR=Verde Green
remote potted ballast by
others) 13
remote burial ballast) 12
remote potted ballast by others)
WATTAGE TABLE PHH
39,
Metal Halide T6
39W
Metal Halide PAR20
Options &
14 Accessories
(See Below)
70, 100, 150W
