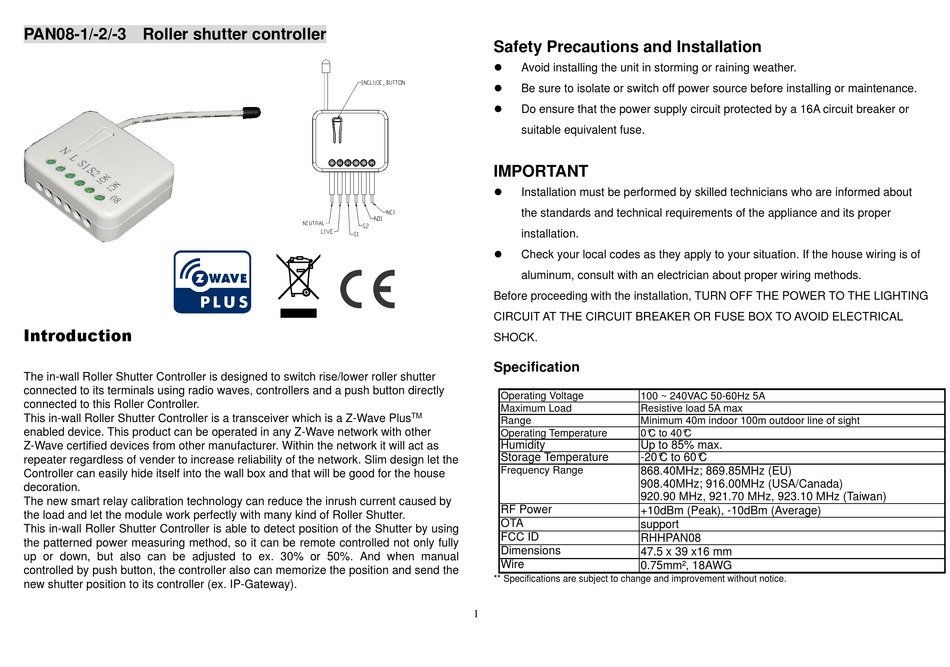

Philio PAN08-1 Quick Start Manual

PAN08-1/-2/-3 Roller shutter controller
Introduction
The in-wall Roller Shutter Controller is designed to switch rise/lower roller shutter
connected to its terminals using radio waves, controllers and a push button directly
connected to this Roller Controller.
This in-wall Roller Shutter Controller is a transceiver which is a Z-Wave Plus
enabled device. This product can be operated in any Z-Wave network with other
Z-Wave certified devices from other manufacturer. Within the network it will act as
repeater regardless of vender to increase reliability of the network. Slim design let the
Controller can easily hide itself into the wall box and that will be good for the house
decoration.
The new smart relay calibration technology can reduce the inrush current caused by
the load and let the module work perfectly with many kind of Roller Shutter.
This in-wall Roller Shutter Controller is able to detect position of the Shutter by using
the patterned power measuring method, so it can be remote controlled not only fully
up or down, but also can be adjusted to ex. 30% or 50%. And when manual
controlled by push button, the controller also can memorize the position and send the
new shutter position to its controller (ex. IP-Gateway).
Safety Precautions and Installation
 Avoid installing the unit in storming or raining weather.
 Be sure to isolate or switch off power source before installing or maintenance.
 Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
IMPORTANT
 Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
installation.
 Check your local codes as they apply to your situation. If the house wiring is of
aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE LIGHTING
CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID ELECTRICAL
SHOCK.
Specification
Operating Voltage
Maximum Load
TM
Range
Operating Temperature
Humidity
Storage Temperature
Frequency Range
RF Power
OTA
FCC ID
Dimensions
Wire
** Specifications are subject to change and improvement without notice.
1
100 ~ 240VAC 50-60Hz 5A
Resistive load 5A max
Minimum 40m indoor 100m outdoor line of sight
0° C to 40° C
Up to 85% max.
-20° C to 60° C
868.40MHz; 869.85MHz (EU)
908.40MHz; 916.00MHz (USA/Canada)
920.90 MHz, 921.70 MHz, 923.10 MHz (Taiwan)
+10dBm (Peak), -10dBm (Average)
support
RHHPAN08
47.5 x 39 x16 mm
0.75mm², 18AWG
