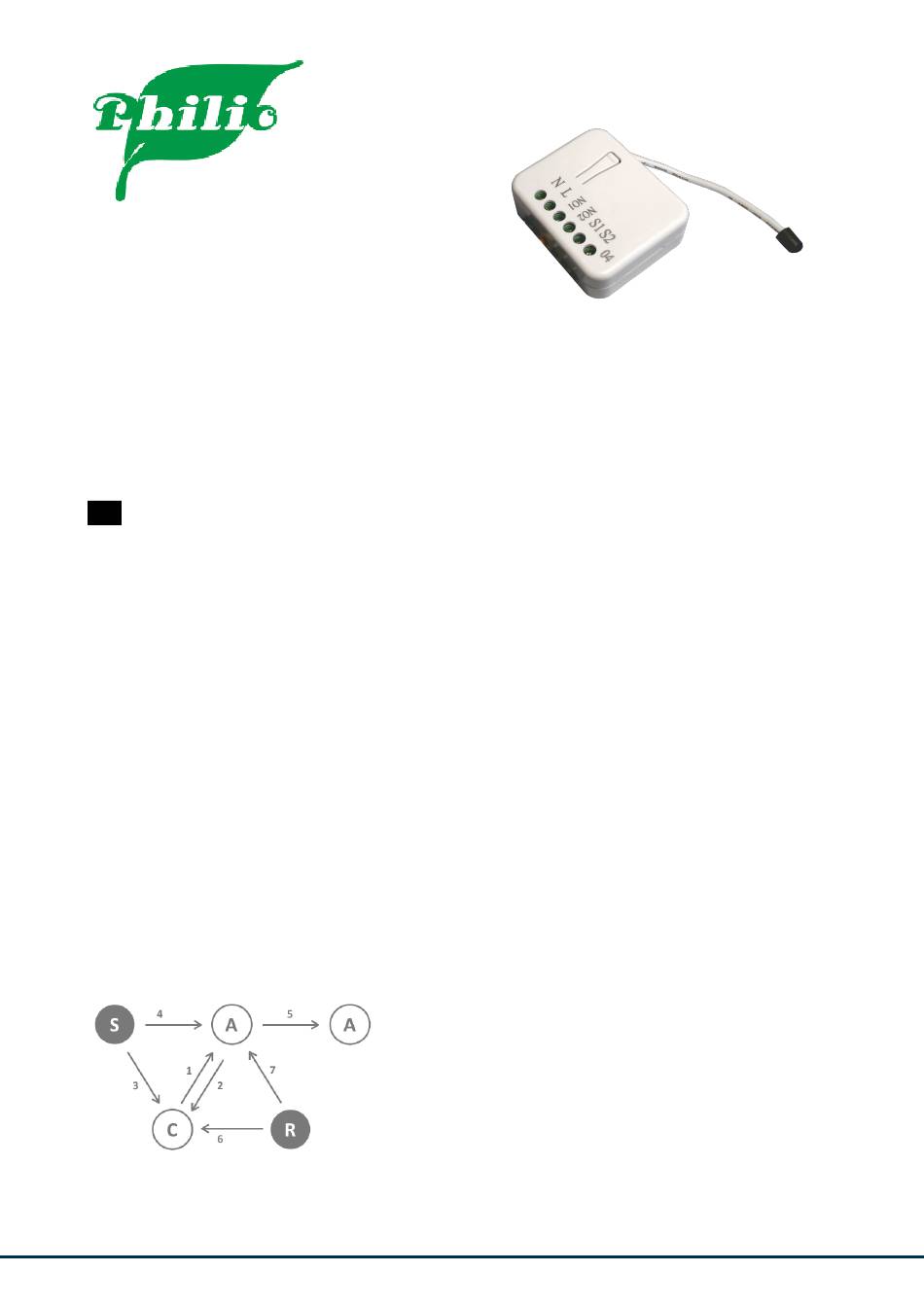

PHI_PAN04
Relay Insert 2 *
1.5 KW with
Power Meter
Firmware Version : 1.0
Quick Start
A
This device is a Z-Wave Actor. Tripple Click the Button on the device confirms the inclusion, exclusion
and association. After power up it will stay in auto inclusion mode for 4 minutes. To support handling of the
device when already installed the external switch can be used for inclusion or exclusion for 3 minutes after
power up.
Please refer to the chapters below for detailed information about all aspects of the products usage.
What is Z-Wave?
This device is equipped with wireless communication complying to the Z-Wave standard. Z-Wave is the
international standard for wireless communication in smart homes and buildings. It is using the
frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed
(two-way communication) and every mains powered node can act as a repeater for other nodes (meshed
network) in case the receiver is not in direct wireless range of the transmitter.
Z-Wave differentiates between Controllers and Slaves. Slaves are either sensors (S) transmitting metered or
measured data or actuators (A) capable to execute an action. Controllers are either static mains powered
controllers (C) also referred to as gateways or mobile battery operated remote controls (R). This results in a
number of possible communication patterns within a Z-Wave network that are partly or completely supported
by a specific device.
1
Advertisement
Table of Contents
Related Manuals for Philio PHI PAN04
Summary of Contents for Philio PHI PAN04
- Page 1 PHI_PAN04 Relay Insert 2 * 1.5 KW with Power Meter Firmware Version : 1.0 Quick Start This device is a Z-Wave Actor. Tripple Click the Button on the device confirms the inclusion, exclusion and association. After power up it will stay in auto inclusion mode for 4 minutes. To support handling of the device when already installed the external switch can be used for inclusion or exclusion for 3 minutes after power up.
- Page 2 1. Controllers control actuators 2. Actuators report change of status back to controller 3. Sensors report change of status of measured values to controller 4. Sensors directly control actuators 5. Actuators control other actuators 6. Remote controls send signals to static controllers to trigger scenes or other actions 7.
- Page 3 Put the in wall switch into a wall box and connect the pins as shown in the figure. Behavior within the Z-Wave network On factory default the device does not belong to any Z-Wave network. The device needs to join an existing wireless network to communicate with the devices of this network.
- Page 4 If the device already belongs to a network, follow the exclusion process before including it in your network. Otherwise inclusion of this device will fail. If the controller being included was a primary controller, it has to be reset first. Tripple Click the button on the device confirms inclusion and exclusion.
- Page 5 happens all devices stored in the respective association group will receive a common wireless command. Association Groups: 1 Relay 1 and 2 together (max. nodes in group: 1) 2 Relay 1 (max. nodes in group: 1) 3 Relay 2 (max. nodes in group: 1) Configuration Parameters Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further enhanced features.
- Page 6 Edge or Pulse mode or Edge-Togle mode (Parameter Number 4, Parameter Size 1) defines the operating mode of the externally connected switch Value Description Edge Mode (Default) Toggle Mode Edge/Toggle Mode Threshold of Watt for Load Caution (Parameter Number 5, Parameter Size 2) Value Description 1 —...
- Page 7 IP Rating IP20 Explorer Frame Support Device Type Slave with routing capabilities Generic Device Class Binary Switch Specific Device Class Binary Power Switch Routing FLiRS Firmware Version Explanation of Z-Wave specific terms Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways, Remote Controls or battery operated wall controllers.
