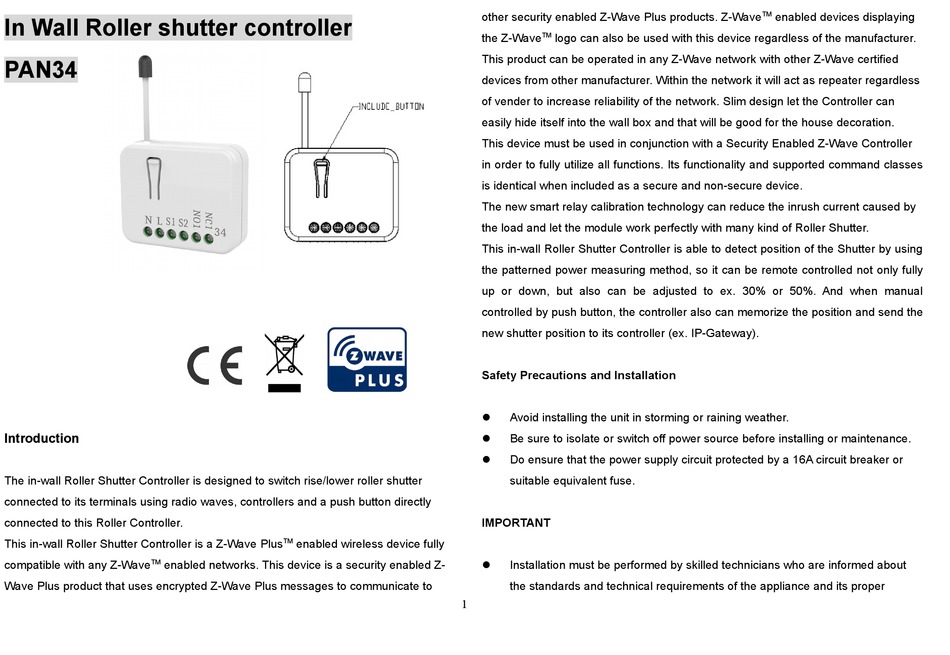

In Wall Roller shutter controller
PAN34
Introduction
The in-wall Roller Shutter Controller is designed to switch rise/lower roller shutter
connected to its terminals using radio waves, controllers and a push button directly
connected to this Roller Controller.
This in-wall Roller Shutter Controller is a Z-Wave Plus
compatible with any Z-Wave
TM
enabled networks. This device is a security enabled Z-
Wave Plus product that uses encrypted Z-Wave Plus messages to communicate to
TM
enabled wireless device fully
other security enabled Z-Wave Plus products. Z-Wave
the Z-Wave
TM
logo can also be used with this device regardless of the manufacturer.
This product can be operated in any Z-Wave network with other Z-Wave certified
devices from other manufacturer. Within the network it will act as repeater regardless
of vender to increase reliability of the network. Slim design let the Controller can
easily hide itself into the wall box and that will be good for the house decoration.
This device must be used in conjunction with a Security Enabled Z-Wave Controller
in order to fully utilize all functions. Its functionality and supported command classes
is identical when included as a secure and non-secure device.
The new smart relay calibration technology can reduce the inrush current caused by
the load and let the module work perfectly with many kind of Roller Shutter.
This in-wall Roller Shutter Controller is able to detect position of the Shutter by using
the patterned power measuring method, so it can be remote controlled not only fully
up or down, but also can be adjusted to ex. 30% or 50%. And when manual
controlled by push button, the controller also can memorize the position and send the
new shutter position to its controller (ex. IP-Gateway).
Safety Precautions and Installation
Avoid installing the unit in storming or raining weather.
Be sure to isolate or switch off power source before installing or maintenance.
Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
IMPORTANT
Installation must be performed by skilled technicians who are informed about
the standards and technical requirements of the appliance and its proper
1
TM
enabled devices displaying
Advertisement
Table of Contents
Related Manuals for Philio PAN34
Summary of Contents for Philio PAN34
- Page 1 This product can be operated in any Z-Wave network with other Z-Wave certified PAN34 devices from other manufacturer. Within the network it will act as repeater regardless of vender to increase reliability of the network. Slim design let the Controller can easily hide itself into the wall box and that will be good for the house decoration.
-
Page 2: Specification
The PAN34 not working 1. The PAN34 is not 1. Check power connections ELECTRICAL SHOCK. and LED off connect to the Main 2. Don’t open up the PAN34 and send power it for repair. Specification 2. The PAN34 break down... -
Page 3: Danger Of Electrocution
Adding to Z-Wave Network 1. Put the in wall PAN34 into a wall box and connect the AC power wire L,N to PAN34 connector L, N. In the front casing, there is an include button with LED indicator below which is used 2. -
Page 4: Led Indication
LED Indication closest network within 10 minutes of There is a LED for identify function in the front case. PAN34 support the indicator ID being switched on. 0x50 (Identify) and Properties ID 0x03, 0x04 and 0x05. -
Page 5: Moving Range Calibration
BOTTOM in second stage, and move to the TOP again in Basic Report Command： third stage. Then PAN34 will know the total range from the BOTTOM to the TOP. [Command Class Basic, Basic Report, Value = 0x00 (BOTTOM)] 2. - Page 6 1-2 BASIC_SET [Command Class Multilevel Switch, Multilevel Switch Set, Value = PAN34 can accept Basic Set Command which value is either (0x00) Bottom or 0xFF(255)] control the shutter to the the most recent (non-zero) level. Top (0x63) or (0x01-0x62) the position between TOP and Bottom. Other value (0x64-0xFE) is not acceptable.
- Page 7 3-2 Report the shutter position ： [Command Class Multilevel Switch, Multilevel Switch Start Level Change, Every time when user press S1 or S2 and let shutter to move, PAN34 will report the Up/Down=0x01] control the shutter to the bottom (0x00) position status to controller, and at the moving process when change over 10% PAN34 will send Multilevel Switch Report to Group 1 as well.
- Page 8 The Switch will report its (1) instant Power Consumption (Watt) or (2) accumulated the node asked. power consumption(KWH) or (3) AC load Voltage (V) or (4) AC load current ( I ) (5) load power factor (PF) to Z-Wave Controller after receive the Meter Get Command Meter Get Command: [Command Class Meter, Meter Get, Scale = 0x00 from Z-Wave Controller.
- Page 9 Size = 2 (2 Bytes of I) Meter Report Command: Meter Value 1 = 0x01(I) [Command Class Meter，Meter Report，Rate Type = 0x01，Meter Meter Value 2 = 0x21(I) Type = AC load current = (Meter Value 1*256) +(Meter Value 2)= 2.89 (A) 0x01，Precision = 1，Scale = 0x04，Size = 2，...
- Page 10 _Type = 0x08, Notification State=0x08. When it receive Notification Get command Watt The threshold is a Watt with Notification Type = 0x08 and the PAN34 not in overload status, it will send Notifi- judgment for motor running or not threshold cation Report, Alarm Type = 0x08, Notification State=0x00.
- Page 11 S2 is pressed and hold more than 1.5 seconds, the shutter will move down The threshold is for PAN34 judging if the motor is running or not. The default toward BOTTOM(0x00), and the shutter will stop moving when S2 is released.
- Page 12 They can take this Association Group Information Highest granted Security Class product for environmental safe recycling. Philio Technology Corporation Basic Highest granted Security Class 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C)
- Page 13 • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
