Valves Controller with Water Meter
PAB04

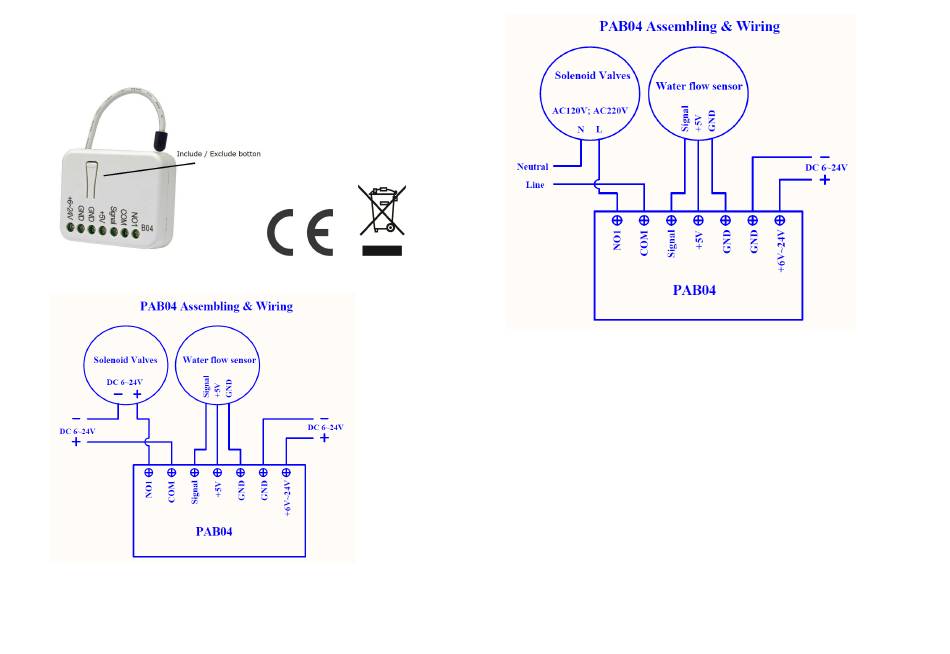

Fig 1. PAB04 Assembling & Wiring
Fig 2. PAB04 Assembling & Wiring
This valves controller PAB04 is a security enabled wireless switch, based on Z-Wave
Plus technology. Z-Wave Plus
can also be used with it regardless of the manufacturer, and can also be used in other
TM
manufacturer's Z-Wave
enabled networks. Remote On/Off control of the connected
valve is possible with other manufacturer's wireless Controller. The switch is designed
to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal
is received by its intended destination by routing the signal around obstacles and
radio dead spots. Because PAB04 supports Security Command Class, it can learn
with Secured controller. Its functionality and supported command classes is identical
when included as a secure and non-secure device.
This valves controller is able to detect instance water flow and the accumulated water
1
TM
enabled devices displaying the Z-Wave Plus
TM
logo
Advertisement
Table of Contents
Related Manuals for Philio PAB04
Summary of Contents for Philio PAB04
- Page 1 Valves Controller with Water Meter PAB04 Fig 1. PAB04 Assembling & Wiring Fig 2. PAB04 Assembling & Wiring This valves controller PAB04 is a security enabled wireless switch, based on Z-Wave Plus technology. Z-Wave Plus enabled devices displaying the Z-Wave Plus logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave...
-
Page 2: Troubleshooting
Specification suitable equivalent fuse. IMPORTANT Input Operating Maximum (PAB04) DC 6V-24V, 0.7A Input Maximum load (Relay COM- NO1) 5A (Resistive load) (Dry contact relay) Output Maximum load (Relay COM- NO1) Installation must be performed by skilled technicians who are informed about the... -
Page 3: Led Indication
The Z-Wave Controller does not LED 2-second on, cause allocate a node ID to the Switch. 2-second the PAB04 to send its NIF. 2. There are only one group for the Put your Z-Wave controller into switch (Inclusion) inclusion mode by following the instructions provided by the ... -
Page 4: Installation
[Command Class Switch Binary, Switch Binary Set, Value = 0 ]: the connected valve turns off. 1. If the connected valve is used the same power, DC 6V~24V, with PAB04. Please 2. Z-Wave’s Groups (Association Command Class Version 2) refer to Fig1. - Page 5 can use Meter Reset Command to clear it. 2-2-1 Accumulated Water (KL) When receiving Meter Get Command, it will report Meter Report Command to the Meter Reset Command: [Command Class Meter, Meter Reset] asking node. 3. Z-Wave’s Configuration Meter Get Command: [Command Class Meter, Meter Get, Scale =0x00(KL)] Meter Report Command: Function Size...
- Page 6 When the accumulated water is over the threshold of accumulated water flow, It is recommended to set 1second for water flow sensor YF-S401 and to set PAB04 will send meter report of its Accumulated water flow (KL or US gallon) to 60 seconds for water flow sensor GSD8-1.
-
Page 7: Fcc Interference Statement
They can take this product for environmental safe recycling. (2) This device must accept any interference received, including interference that may cause undesired operation. Philio Technology Corporation FCC Caution: Any changes or modifications not expressly approved by the party 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City responsible for compliance could void the user's authority to operate this equipment.
